43
27DV-S100
27DV-CS10
When installing the master cam,
align the casecon drive gear
round mark with the half-round
notch of master cam.

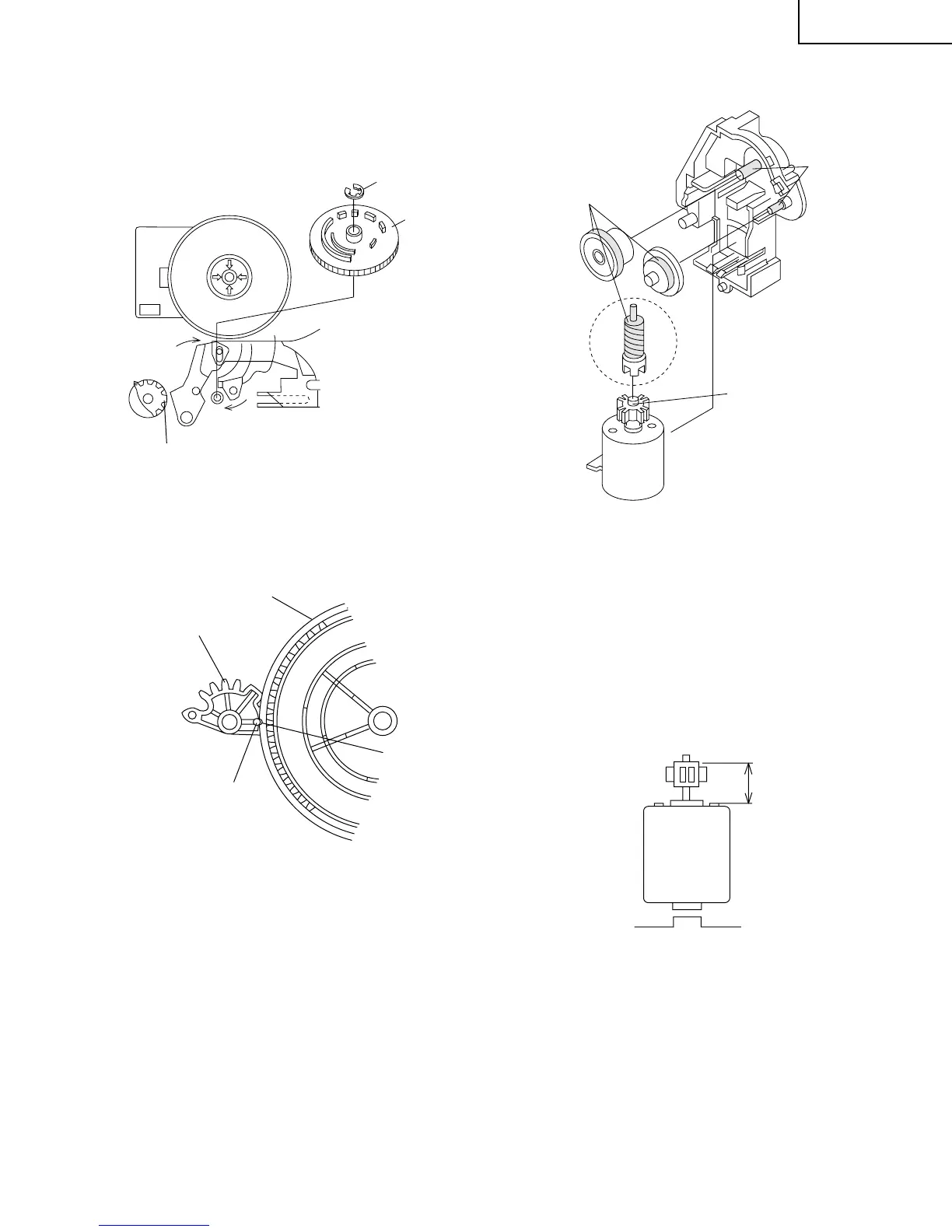

INSTALLING THE MASTER CAM (AT REAR
SIDE OF MECHANISM CHASSIS)
1. Make sure beforehand that the shifter is at the point as
shown below.
2. Place the master cam in the position as shown below.
Note:
See the figure below for the phase matching between the
master cam and the casecon drive gear.
3. Finally fix with the E ring.
REPLACEMENT OF LOADING MOTOR
• Removal
• Replacement
Remove the loading motor, and install the replacement
loading motor as shown below.
The loading motor pressing-in must be less than 147 N
(15kgf).
Adjust the distance between motor and pulley to 10.2
mm).
E ring
(XRESJ30-06000)
Master cam
Fully turn
clockwise
Fully turn counterclockwise
Face the wide tooth side ward
Figure 1-44-1.
Master cam
Casecon drive gear
Round mark
Half-round notch
Figure 1-44-2.
No grease
Apply grease
Apply grease
Figure 1-45.
10.2 mm
+0
–0.2
Figure 1-46.
+0.2
–0.2
