Sharp 27DV-S100 - Shifter Installation Procedure

42
27DV-S100
27DV-CS10
1. Make sure that the loading gear is at the Phase-
Matching point 1 as shown below.
2. Install, paying attention to insert point 5 and release
point 3.
3. For the phase matching at the insert point 1, see the
Phase-Matching point 2 as shown below.
4. Finally fix the inserts 1 and 4.

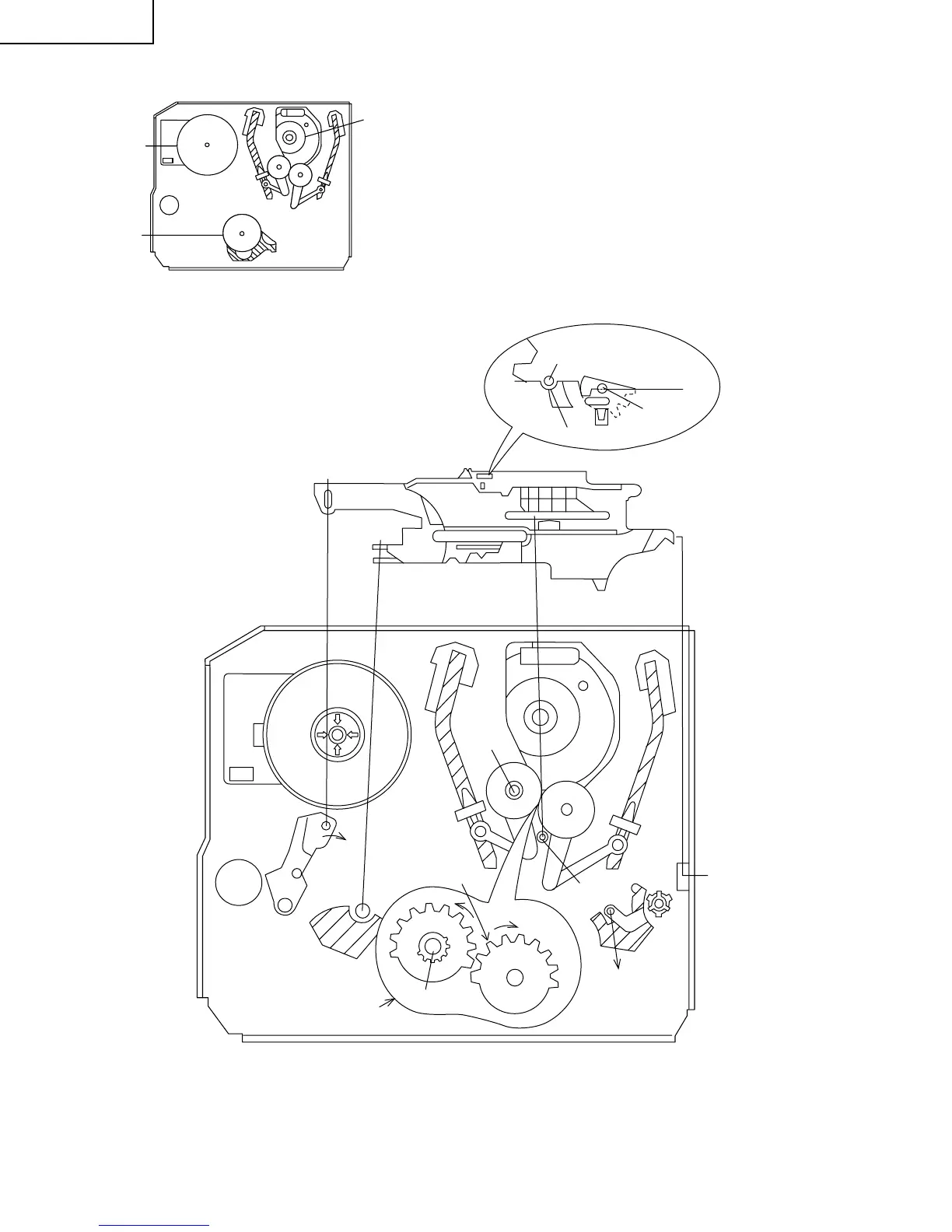

INSTALLING THE SHIFTER
Figure 1-42.
Capstan
D.D. motor
Reel pulley
Drum
(Bottom side of mechanism chassis)
Phase-Matching
point 2
Loading gear (T)
Round mark
Insert
point 1
Shaft 1
Half round notch
Sifter
Insert
point 3
Insert
point 2
Insert
point 4
Shaft 1
Shaft 2
Insert
point 5
Rotation
point 2
Shaft 1
Phase-matching
point 1
Release
point 3
Figure 1-43.
