Sharp AH-AP18CE - Printed Wiring Diagram for AH-AP24 CE

AY-AP18CE AY-AP24CE
AH-AP18CEAH-AP24CE
AE-A18CE AE-A24CE
AU-A18CE AU-A24CE
18
2
FB441
2
FB441
2
2
FB441
2
FB441
2
TO TERMINAL BOARD
TOPN
TO TERMINAL BOARD
TOPN
TO TERMINAL BOARD
BOTTOMN
TO TERMINAL
BOARD TOP
2
TO TERMINAL
BOARD BOTTOM
1
FROM FAN MOTOR
FROM
FAN MOTOR
FROM CLUSTER GENERATOR
FROM
CLUSTER
GENERATOR
FROM CLEANING SWITCH 1
FROM
CLEANING
SWITCH 2
FROM THERMISTOR
FROM LOUVER MOTOR
BCN101(BCN201)

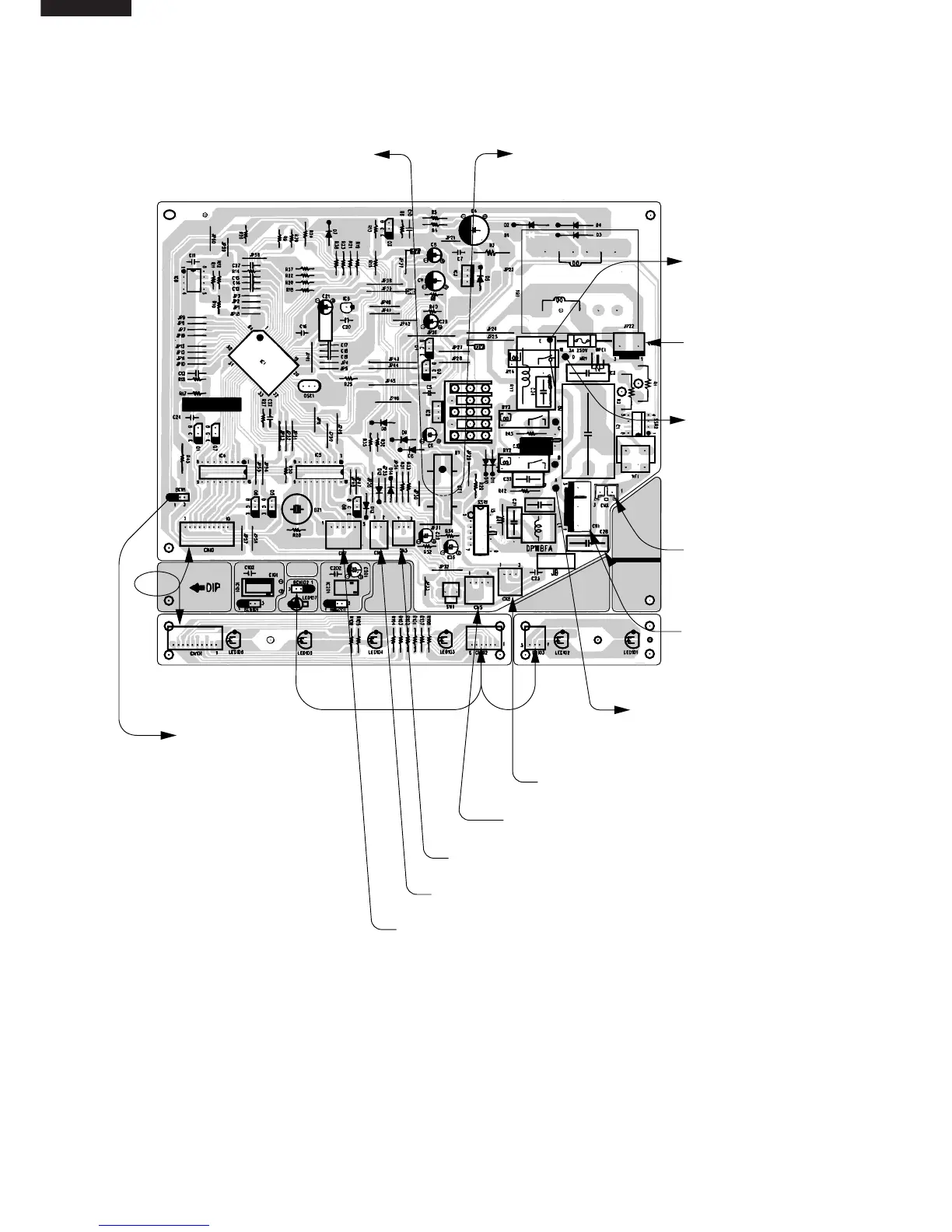

Figure L-8. Printed Wiring Diagram for AH-AP24CE
