A
Y-AP18CE
A
Y-AP24CE
AH-AP18CE
AH-AP24CE
AE-A18CE
AE-A24CE
A
U-A18CE
AU-A24CE
37
DISASSEMBLING PR
OCEDURE
F
OR INDOOR UNIT MODEL(AH-AP18CE/AP24CE,AY-AP18CE/AP24CE)
CAUTION:DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING

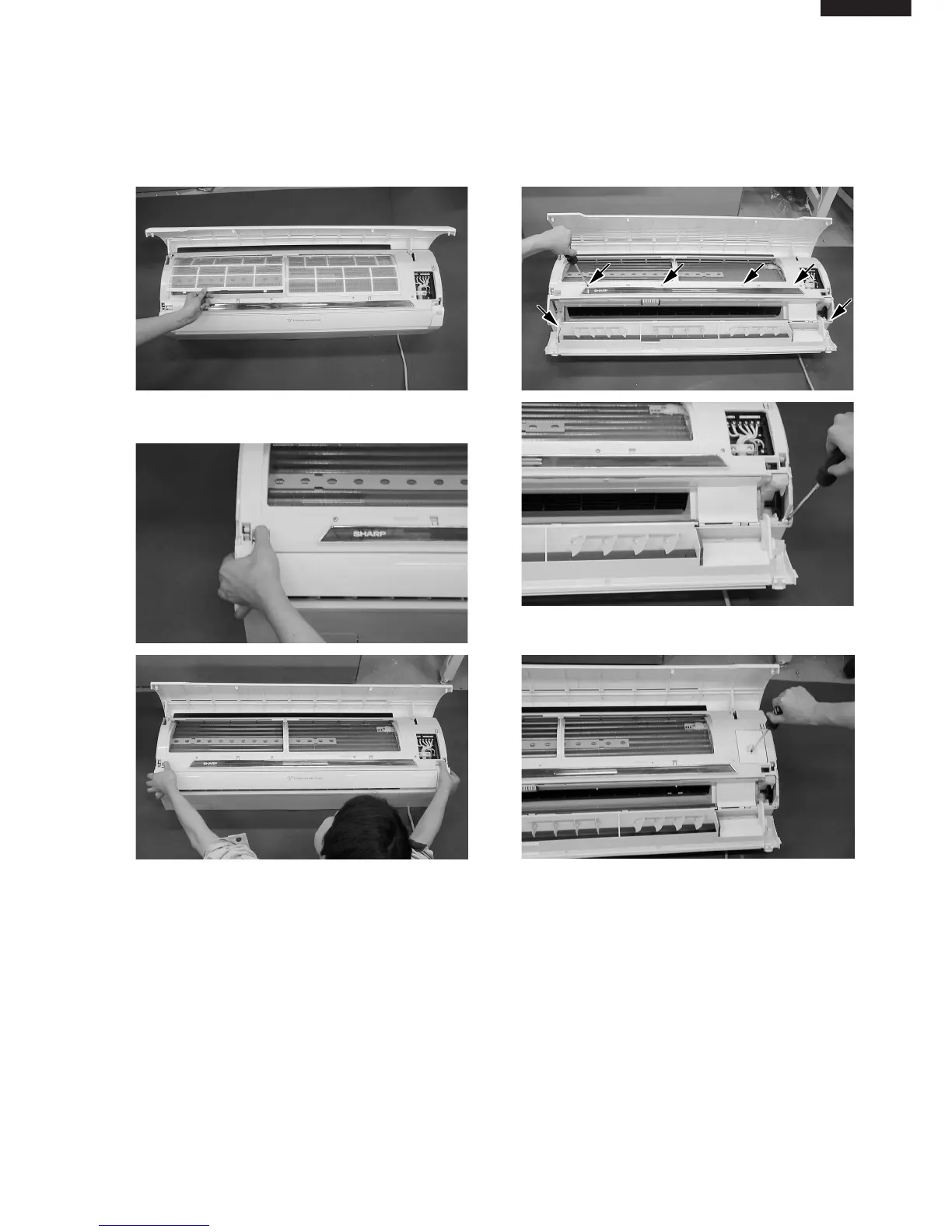

1.
Open the Opne panel, remove 2 Air Filters.
2.
Open the Louver frame.unlook the hooks,and pull
the unit.
3.
Remove 6 screws fixing the Front panel.
4.
Remove the screw fixing the Cord holder.
36
38
Table of Contents
Table of Contents
1
Specifications
2
Indoor Unit
4
Outdoor Unit
4
External Dimensions
4
Wiring Diagrams
5
Wiring Diagram for AY-AP24CE
6
Wiring Diagram for AE-A24CE
6
Wiring Diagram for AH-AP18CE
7
Wiring Diagram for AU-A18CE
7
Wiring Diagram for AH-A24CE
8
Wiring Diagram for AU-A24CE
8
Electrical Parts
9
Microcomputer Control System
11
Printed Wiring Diagram for AY-AP18CE
15
Printed Wiring Diagram for AY-AP24CE
16
Printed Wiring Diagram for AH-AP18CE
17
Printed Wiring Diagram for AH-AP24CE
18
Temperature Control Characteristic
19
DRY Operation
19
HEAT Operation
19
Functions
19
Fan Speed
20
Preset Temperature
20
Hot-Keep
21
Preheat Air Flow
21
Overheating Protection System
21
Delayed Operation of the Reverse Valve
22
Freeze Preventive
22
Defrost
22
Current Control
22
Automatic Air Conditioning
23
Automatic Fan Speed
23
Outputs in each Operation Mode
23
Power on Start
23
Diagnosis Procedure
26
Troubleshooting Guide of Control Circuit
27
The Machine Does Not Function with Remote Controller
28
Temperature Properties of Indoor Thermistors
29
Refrigeration Cycle
32
Dimension of Capillary Tube
33
ISO Condition
33
Cycle Temperature and Service Port Pressure
33
At Cooling for AY-AP18CE
34
At Heating for AY-AP18CE
34
Performance Curves
34
Refrigerant Pipe Installation Works
35
Disassembling Procedure
37
The DRAIN PAN and Related
42
The LOUVER FRAME UNIT and Related
42
How to Remove the Hi Voltage UNIT
43
How to Remove the DISPLY COVER
43
Disassembling Procedure of the Control Box
44
Disassembling Procedure of the Fan
45
Cabinet and Unit Parts
46
Replacement Parts List
46
