Sharp AH-AP18CE User Manual

AY-AP18CE AY-AP24CE
AH-AP18CEAH-AP24CE
AE-A18CE AE-A24CE
AU-A18CE AU-A24CE
36
16000
17000
18000
19000
Cooling capacity(BTU/h)
2500
4.5
5.0
5.5
(kW)
1500
Power input(W)
11
Outside air temp.(˚C)
Inside Outlet air temp.(˚C)
30 31 32 33 34 35 36 37 38 39 40
12
13
14
15
2000
Indoor air temp. : 27˚C
Indoor humidity : 47RH%
Indoor fan speed : Hi
Power supply : 50Hz, 220V
22000
23000
24000
Cooling capacity(BTU/h)
3000
6.0
6.5
7.0
(kW)
2000
Power input(W)
11
Outside air temp.(˚C)
Inside Outlet air temp.(˚C)
30 31 32 33 34 35 36 37 38 39 40
12
13
14
15
2500
Indoor air temp. : 27˚C
Indoor humidity : 47RH%
Indoor fan speed : Hi
Power supply : 50Hz, 220V
21000
MODEL
AH-AP18CE
AH-AP24CE
PIPE SIZE
GAS
LIQUID
STANDARD PERMISSIBLE
LENGTH
PERMISSIBLE LEVEL
DIFERENCE
1/2"
5/8"
1/4"
1/4"
15m 10m
15m 10m

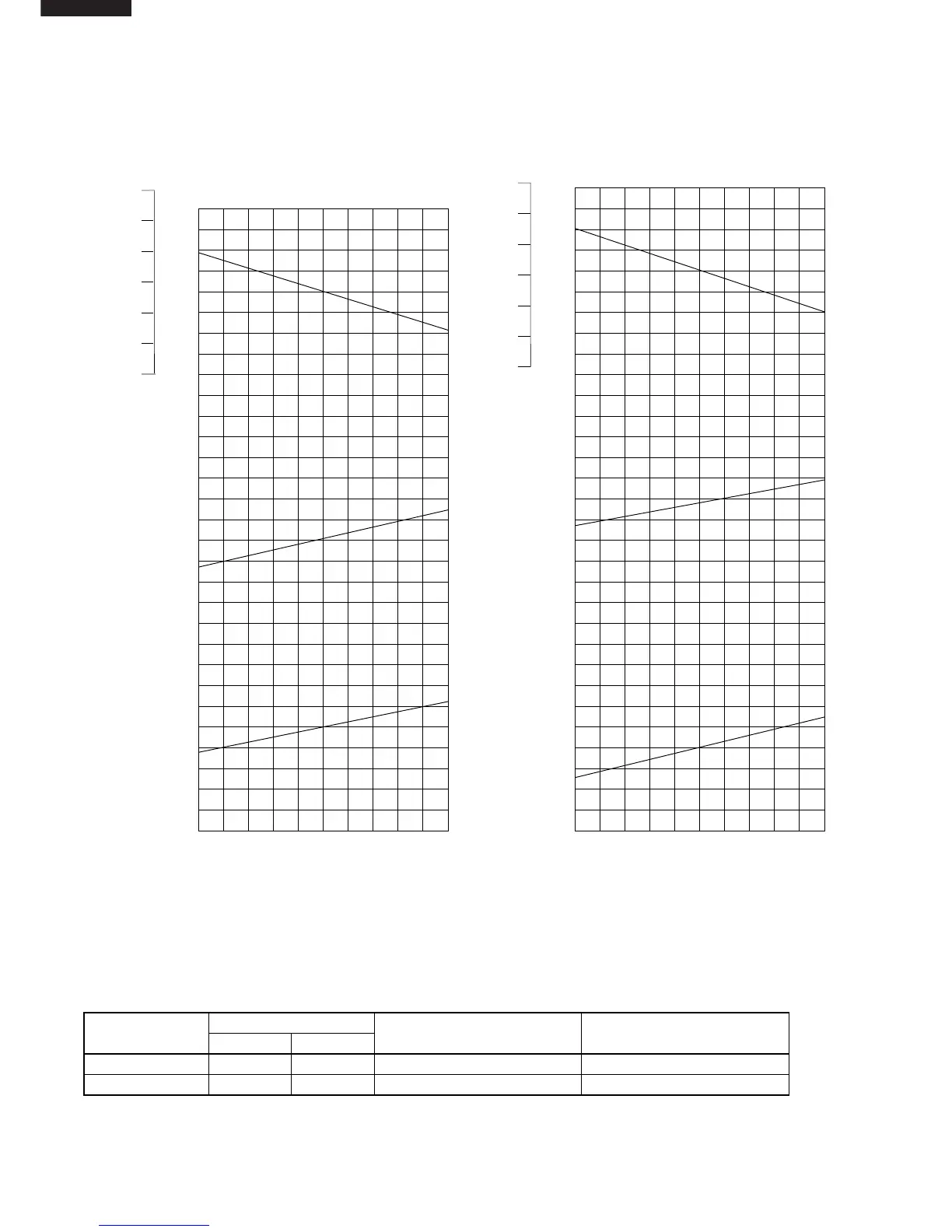

Figure P-5. At Cooling for AH-AP18CE
Figure P-6. At Cooling for AH-AP24CE
REFRIGERANT PIPE INSTALLATION WORKS
Refrigerant pipe length and level difference between the indoor and outdoor units.
The shorter refrigerant pipe, the highter the machine capabillity. Keep the pipe line as short as possible.
If actual pipe length exceeds 7.5m, and refrigerant (R-22) 15g per 1m.
