AY-AP18CE AY-AP24CE
AH-AP18CE AH-AP24CE
AE-A18CE AE-A24CE
AU-A18CE AU-A24CE
45

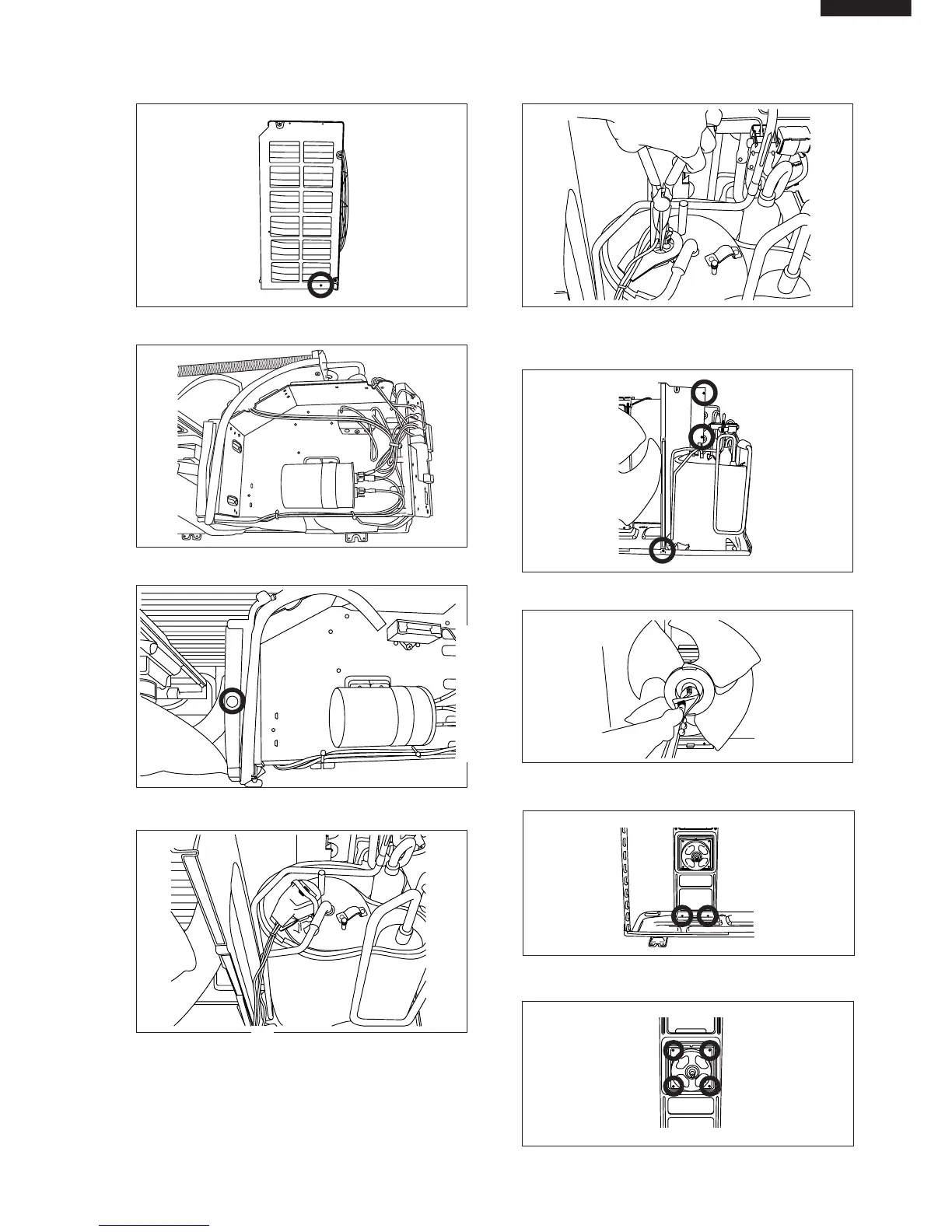

9. Loose 1 screw fixing the rear cabinet (left side).
10. Cut nylon band.
11. Loose 1 screw fixing the control box.
12. Remove the terminal cover.
13. Remove 3 terminals.
14. Loose 3 screws fixing the bulkhead.
DISASSEMBLING PROCEDURE OF THE FAN
1. Loose the fan nut and fan can take out.
2. Loose 2 screw fixing the fan motor angle
3. Cut the nylon band and loose 4 screws fixing the
fan motor.
To Next Page
