Preparation
1 3
1

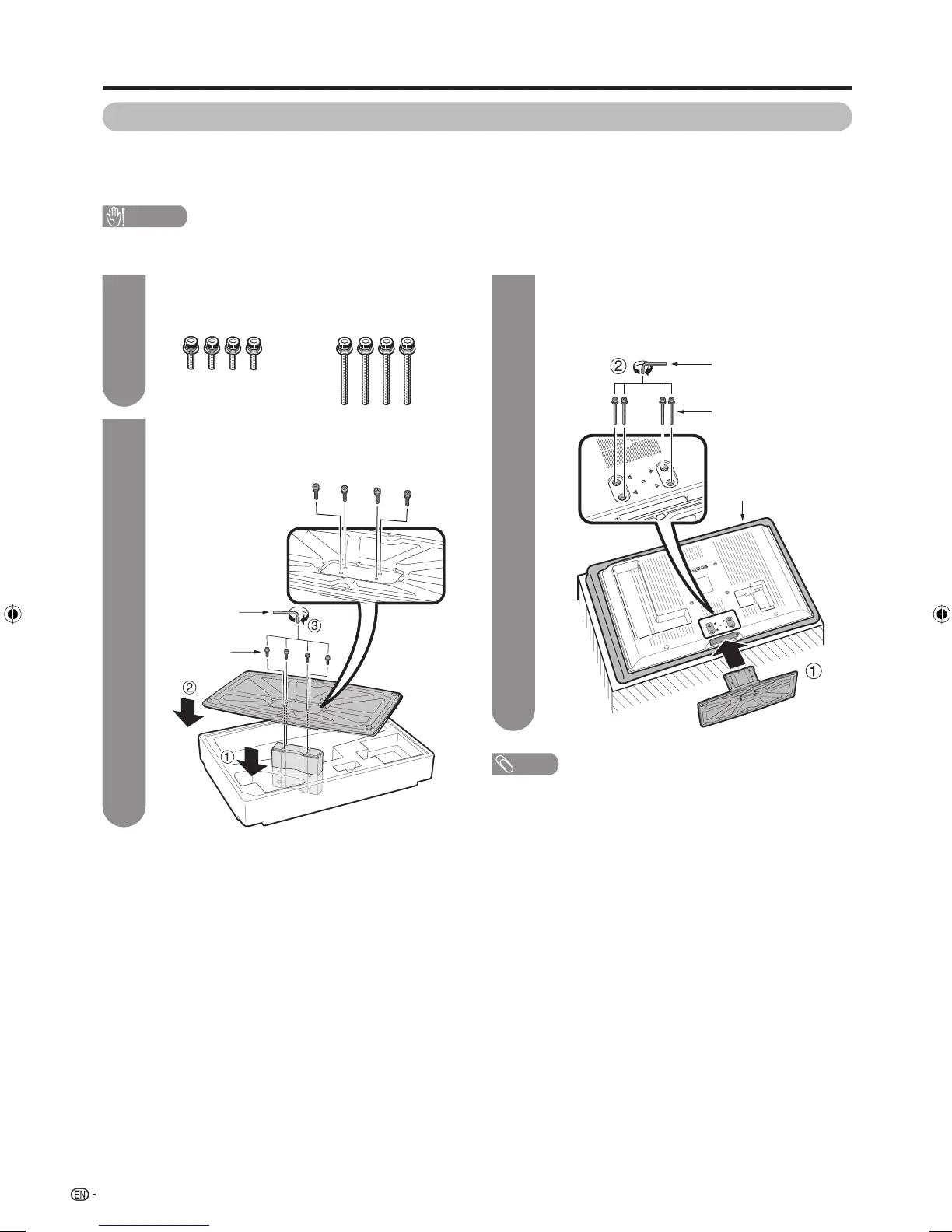

Insert the stand into the openings on the
bottom of the TV.
2
Insert and tighten the 4 long screws into
the 4 holes on the rear of the TV.
Hex key
Long screw
Soft cushion
NOTE
• To detach the stand, perform the steps in reverse order.
2
Hex key
Short screw
Attach the supporting post for the stand unit
onto the base using the box for the stand unit
as shown below.
Confi rm the 8 screws supplied with the TV.
Attaching the stand
• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
Short screws (
g
4)
(used in step 2)
Long screws (
g
4)
(used in step 3)
