8
Preparation

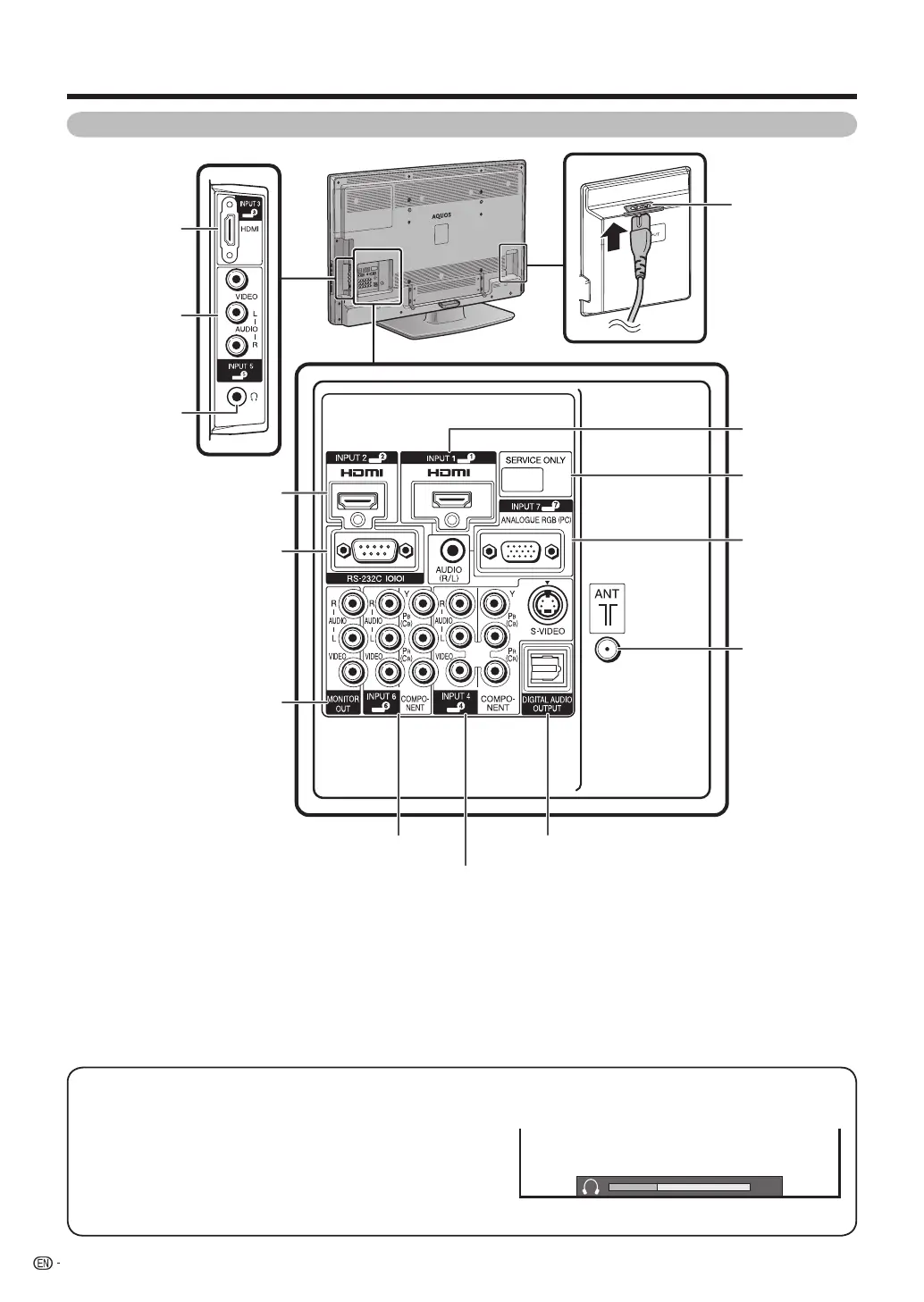

TV (Rear)
** Usually do not connect anything to this terminal as it is reserved only for service personnel.
** The INPUT 1 and INPUT 7 terminals can both use the same audio input terminal. However, the proper item must be selected
in the “PC audio select” menu. (See page 56.)
Regarding the headphone jack
• Use headphones with a stereo mini plug (
Ǿ
3.5 mm).
• Be sure to unplug headphones from the jack when they are not
in use.
• The speakers do not output volume when headphones are
plugged in.
• The “Audio” menu cannot be operated when headphones are
plugged in.
• You can set the volume to different levels for each input source.
Volume display when headphones are plugged in
20
INPUT 3 (HDMI)
terminal
INPUT 6 terminals
INPUT 4 terminals
Antenna input
terminal
AC INPUT terminal
Headphone jack
INPUT 5 terminals
MONITOR OUT terminals
DIGITAL AUDIO OUTPUT terminal
RS-232C terminal
INPUT 2 (HDMI) terminal
SERVICE ONLY
terminal*
INPUT 1 (HDMI)
terminals**
INPUT 7 (PC)
terminals**
