Preparation
Connecting external devices
You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD player,
Digital TV STB (Set Top Box) and PC. To view input source images, select the input source from TV/VIDEO on
the remote control unit or TV/VIDEO on the TV.
CAUTION
• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital
TV STB (Set Top Box), PC or other external equipment.
• Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.

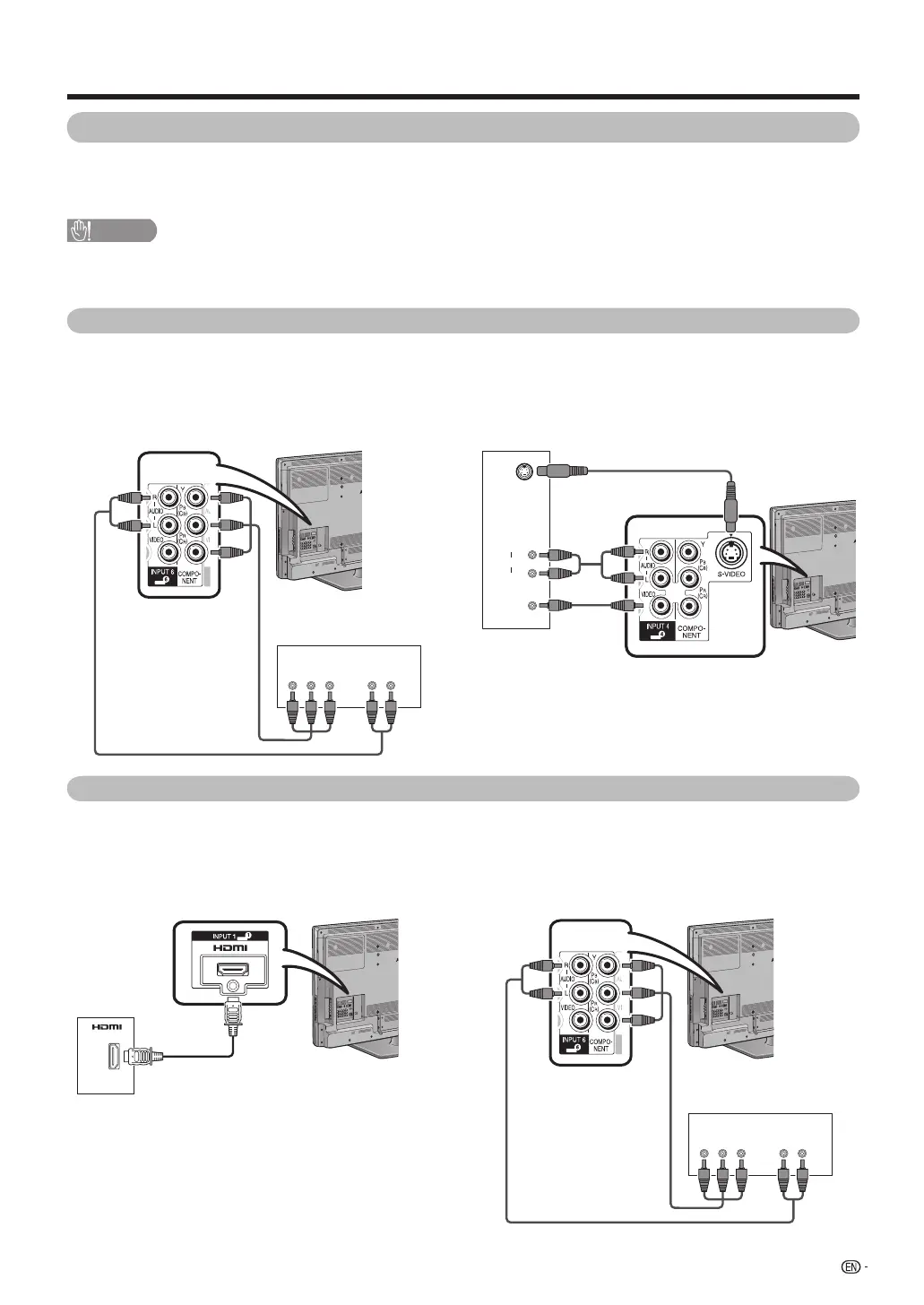

Connecting a VCR, game console or camcorder
A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected using
the INPUT 5 or INPUT 4/INPUT 6 terminals.
When using component cable
(commercially available)
When using composite cable or
S-VIDEO cable (commercially available)
R – AUDIO – L
Y
PB
(CB)
P
R
(CR)
S-VIDEO
R
L
AUDIO
VIDEO
Connecting a DVD player
You can use the INPUT 1/INPUT 2/INPUT 3 (HDMI) or INPUT 4/INPUT 6 terminals when connecting to a DVD
player and other audiovisual equipment.
When using HDMI cable
(commercially available)
When using component cable
(commercially available)
R – AUDIO – L
Y
PB
(CB)
P
R
(CR)
DVD player
or
DVD player
VCR/Game console/
Camcorder
VCR/
Game console/
Camcorder
