Sharp AR-5420 Service Manual

AR-203E/5420/M200/M201 DISASSEMBLY AND ASSEMBLY 8 - 19

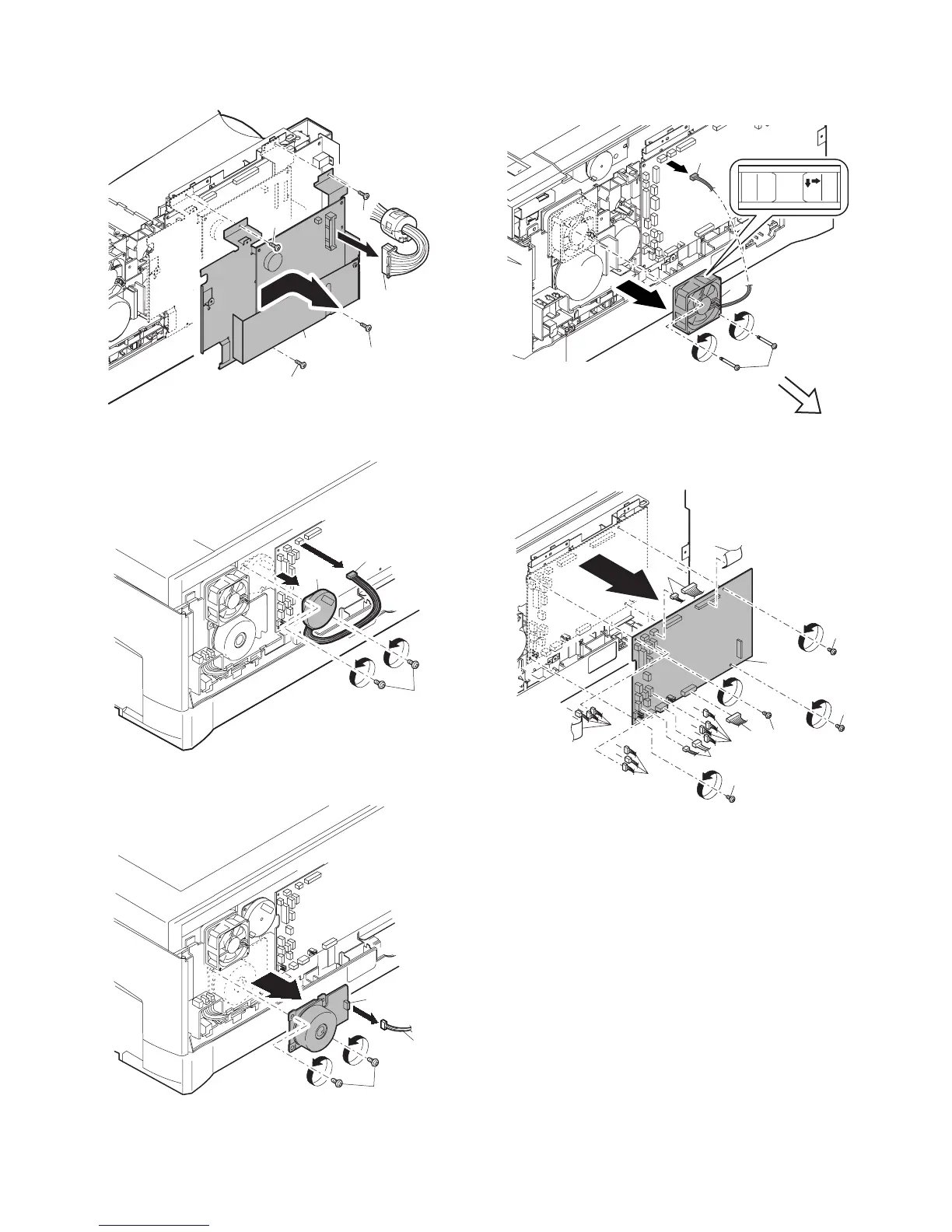

2) Remove the connector.
3) Remove four screws, and remove the FAX PWB unit. (When the
AR-FX13 is installed)
4) Disconnect the connector.
5) Remove two screws, and remove the scanner motor.
6) Remove two screws and one harness, and remove the main
motor.
7) Remove two screws and one connector, and remove the
exhaust fan motor.
Note: Be careful of the installing directions of the fan.
Attach it so that the blowing direction faces outside.
8) Disconnect the connectors.
9) Remove the five screws, and remove the MCU PWB.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
2)
2)
3)
1)
2)
2)
1)
2)
3)
1)
2)
3)
1)
2)
3)
Blowing direction
2)
3)
2)
2)
2)
1)
1)
1)
1)
1)
1)
