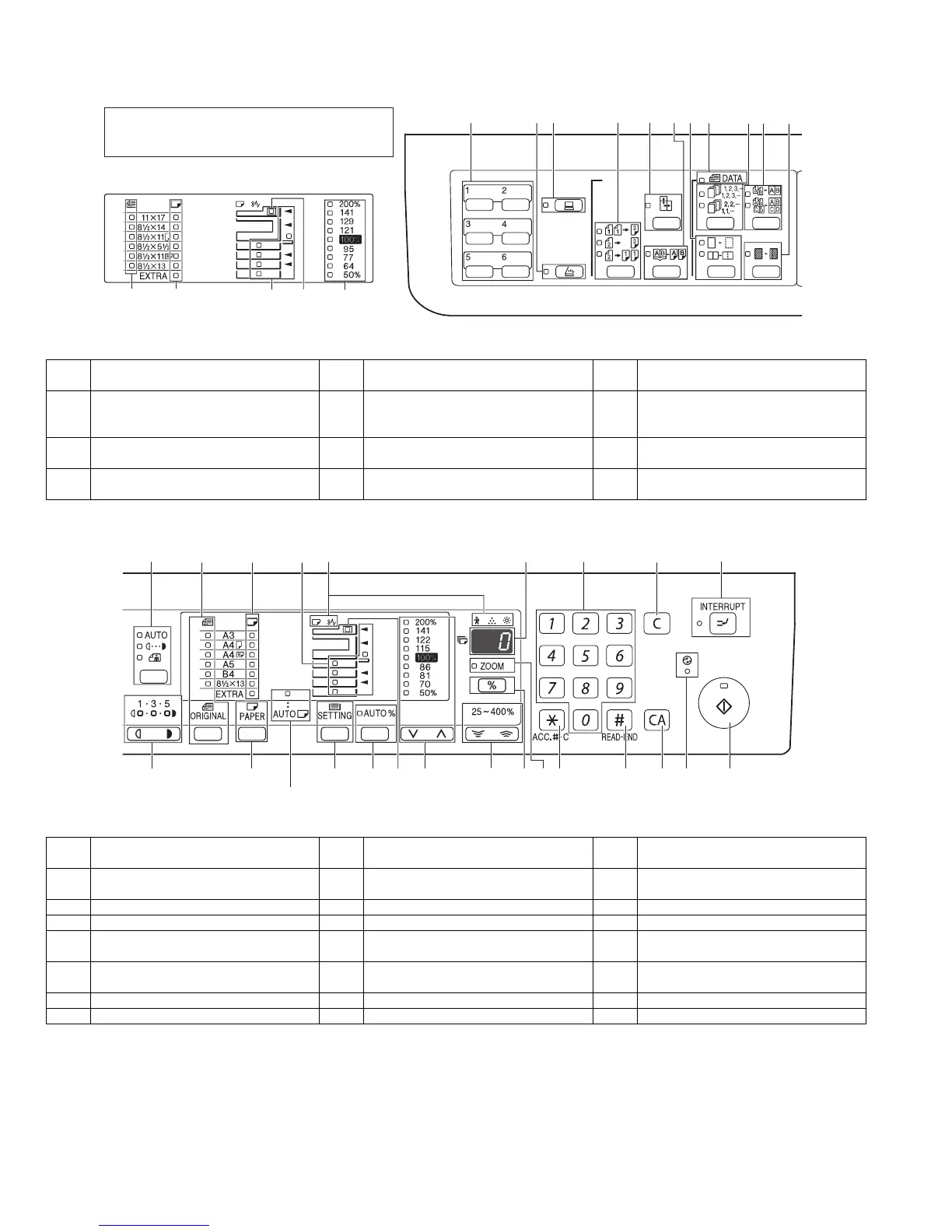

3. Operation Section
1 SCAN MENU key
(Except AR-5516S/AR-5520S)
2 SCAN key / indicator
(Except AR-5516S/AR-5520S)
3 ON LINE key/indicator
4 ORIGINAL TO COPY key/indicators
(Except AR-5516/AR-5520/AR-5516S/
AR-5520S)
5 XY-ZOOM key / indicator 6 DUAL PAGE COPY key / indicator
7 ERASE key / indicators
(Except AR-5516S/AR-5520S)
8 ORIGINAL DATA indicator 9 SORT/GROUP key / indicators
(Except AR-5516S/AR-5520S)
10 2 IN 1 / 4 IN 1 key / indicators
(Except AR-5516S/AR-5520S)
11 MARGIN SHIFT key / indicator
(Except AR-5516S/AR-5520S)
12 AUTO/TEXT/PHOTO key / indicators 13 ORIGINAL key / ORIGINAL SIZE
indicators
14 PAPER SIZE indicators
15 Paper feed location / misfeed location
indicators
16 Alarm indicators 17 Display
18 Numeric keys 19 CLEAR key 20 INTERRUPT key / indicator
21 Light and Dark keys / indicators 22 PAPER SELECT key 23 AUTO PAPER SELECT indicator
24 TRAY SETTING key 25 AUTO IMAGE key / indicator 26 SPF/RSPF indicator
(when the SPF/RSPF is installed)
27 PRESET RATIO selector keys /
indicators
28 Zoom keys 29 Copy ratio display key
30 ZOOM indicator 31 Audit clear key 32 READ-END key
33 CLEAR ALL key 34 POWER SAVE indicator 35 START key / indicator
9
10
2 3 4 5
6 7
8
11
1
13
14
15
26
27
The indications of the operation panel may differ
depending on the country and the region.
The example of a display of inch series.
12
13
14
15
16 17
18
19
20
21 22
23
24 25 26
27
28
29
30 31 35343332
When there are two or more paper trays
