<P=005>
(Continued)
Red
Black
Black
Red
RATED SPEAKER IMPEDANCE : 8 OHMS MIN.
IMPEDANCE NOMINALE DU HAUT-PARLEUR :
8 OHMS MINIMUM
Right
Left
White
line
White
line
Sub woofer

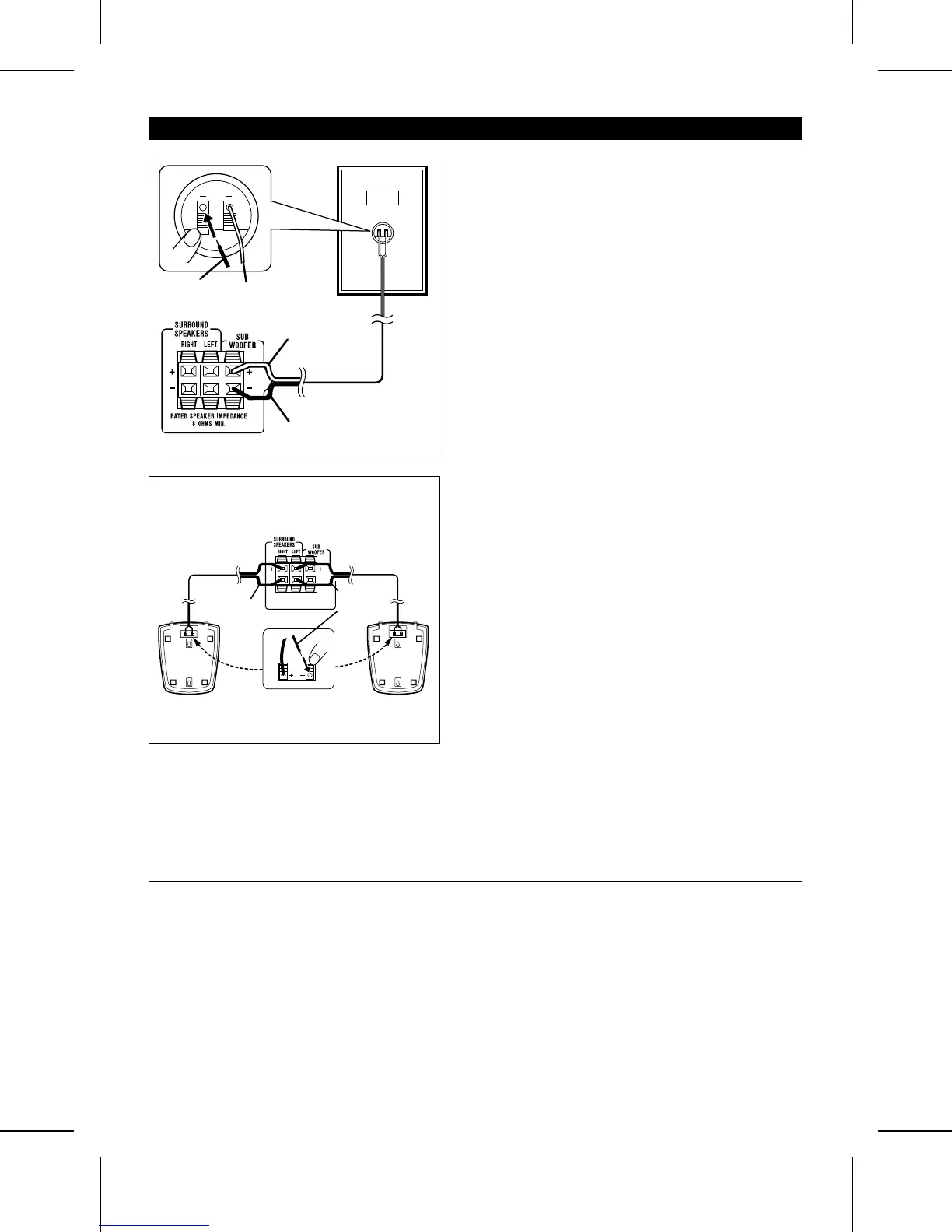

Connect the sub woofer wire to the SUB WOOFER terminals as
shown.
Use a speaker with an impedance of 8 ohms or more, as a lower
impedance speaker can damage the unit.
● Connect the black wire to the minus (−) terminal, and the red
wire to the plus (+) terminal.
Surround speakers
Connect each surround speaker wire to the SURROUND
SPEAKER terminals as shown.
Use speakers with an impedance of 8 ohms or more, as lower
impedance speakers can damage the unit.
● Connect the wire with the white line to the minus (−) terminal
and the plain wire to the plus (+) terminal.
Caution:
● Do not short out the speaker wires. When the power
is on and the speaker wires are shorted out, "PRO-
TECT" will appear and the unit will enter the stand-by
mode. (See page 42.)
● Do not reverse the right channel and left channel
wires when connecting the speakers to the unit.
● Do not let bare speaker wires touch each other, as this may
damage the amplifier and/or speakers.
● Do not allow any objects to fall into or to be placed in the bass
reflex ducts.
● Do not stand or sit on the speakers. If the speakers fall or
collapse, you may be injured.
CD-C491H(SUK) TINSE0229AWZZ
5
To Next Page
