CD-SW340H
2008/April/18 CD-SW340H_AUS

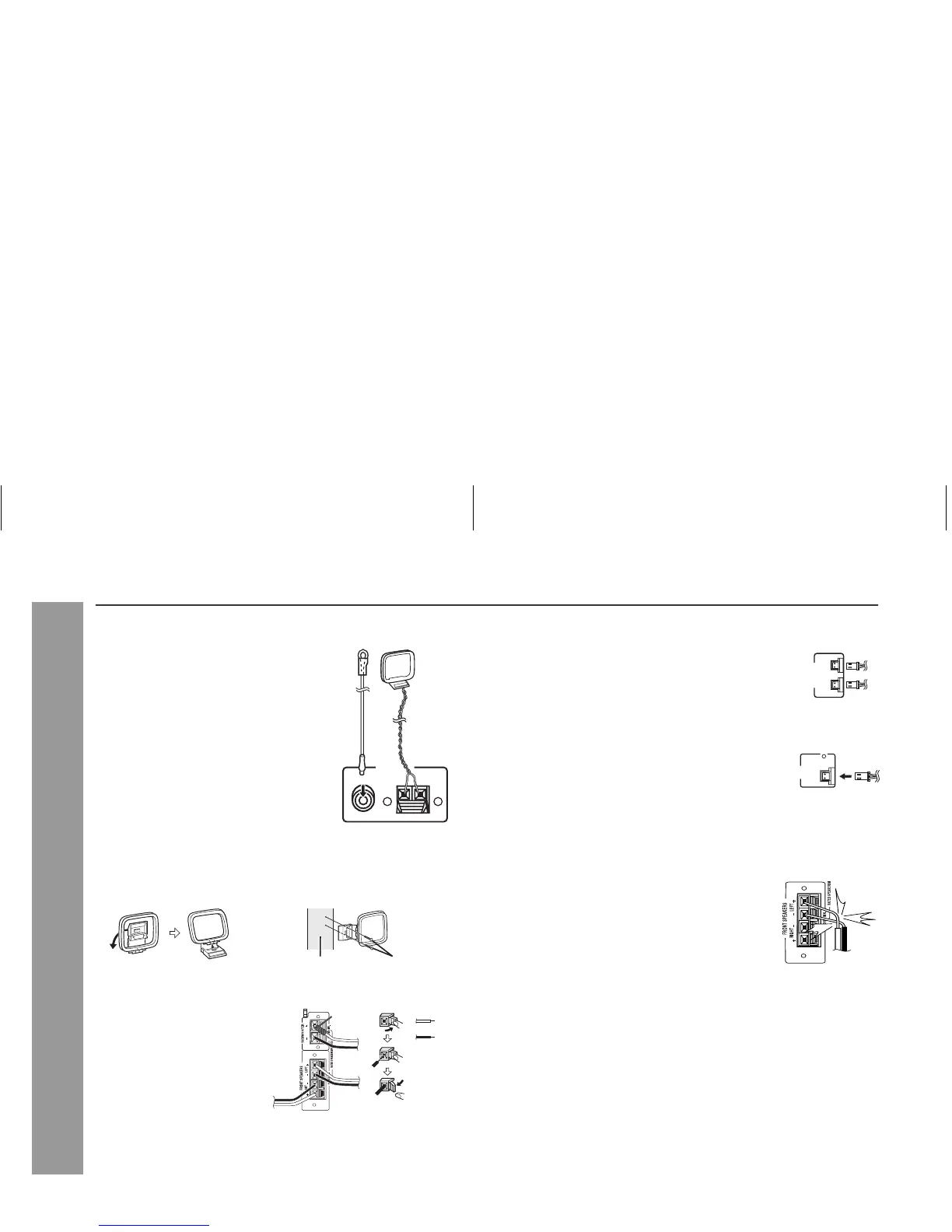

Preparation for Use
System connections (continued)
 Aerial connection
Note:
Placing the aerial on the unit or near the AC power lead may cause
noise pickup. Place the aerial away from the unit for better reception.
Installing the AM loop aerial:
 Speaker connection
 Speaker Light-Up connection
Caution:
Supplied FM aerial:
Connect the FM aerial wire to the FM
75 OHMS socket and position the FM
aerial wire in the direction where the
strongest signal can be received.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM
and GND terminals. Position the AM
loop aerial for optimum reception.
Place the AM loop aerial on
a shelf,
etc., or attach it to a stand or a wall with
screws (not supplied).
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
FRONT SPEAKERS:
Connect the black wire to the
FRONT SPEAKERS minus
(–) terminal, and the red wire
to the FRONT SPEAKERS
plus (+) terminal.
SUBWOOFER:
Connect the black wire to the
SUBWOOFER minus (–)
terminal, and the red wire with
purple insulation tube to the
SUBWOOFER plus (+)
terminal.
ANTENNA
FM
75 OHMS
AM
GND
FM
aerial
AM loop
aerial
Red
Black
Purple
1 Connect the speaker light-up wires to the
SPEAKERS LIGHT-UP sockets for speaker
illumination. To turn off the speaker light-up feature,
press the CLEAR/DIMMER button on the remote
control for 2 seconds or more.
Note:
Placing the right speaker light-up wire to the RIGHT socket and the left
speaker light-up wire to the LEFT socket.
2 Connect the subwoofer light-up wire to the
SUBWOOFER LIGHT-UP socket.
 Never mistake the FRONT SPEAKERS and the SUBWOOFER
terminals. The unit or the speakers may be damaged.
 If you use other speakers with an impedance lower than that specified,
the unit may be damaged. Front speakers: 6 ohms, Subwoofer: 12
ohms.
 Do not mistake the right and the left channels. The
right speaker is the one on the right side when you
face the unit.
 Do not let the bare speaker wires touch each
other.
 Do not stand or sit on the speakers. You may be
injured.
 Do not allow any objects to fall into or to be placed
in the bass reflex duct.
Incorrect
SPEAKERS
LIGHT-UP
RIGHT
LEFT
SUB
WOOFER
LIGHT-UP
