GX-CD5100W
Preparation for Use

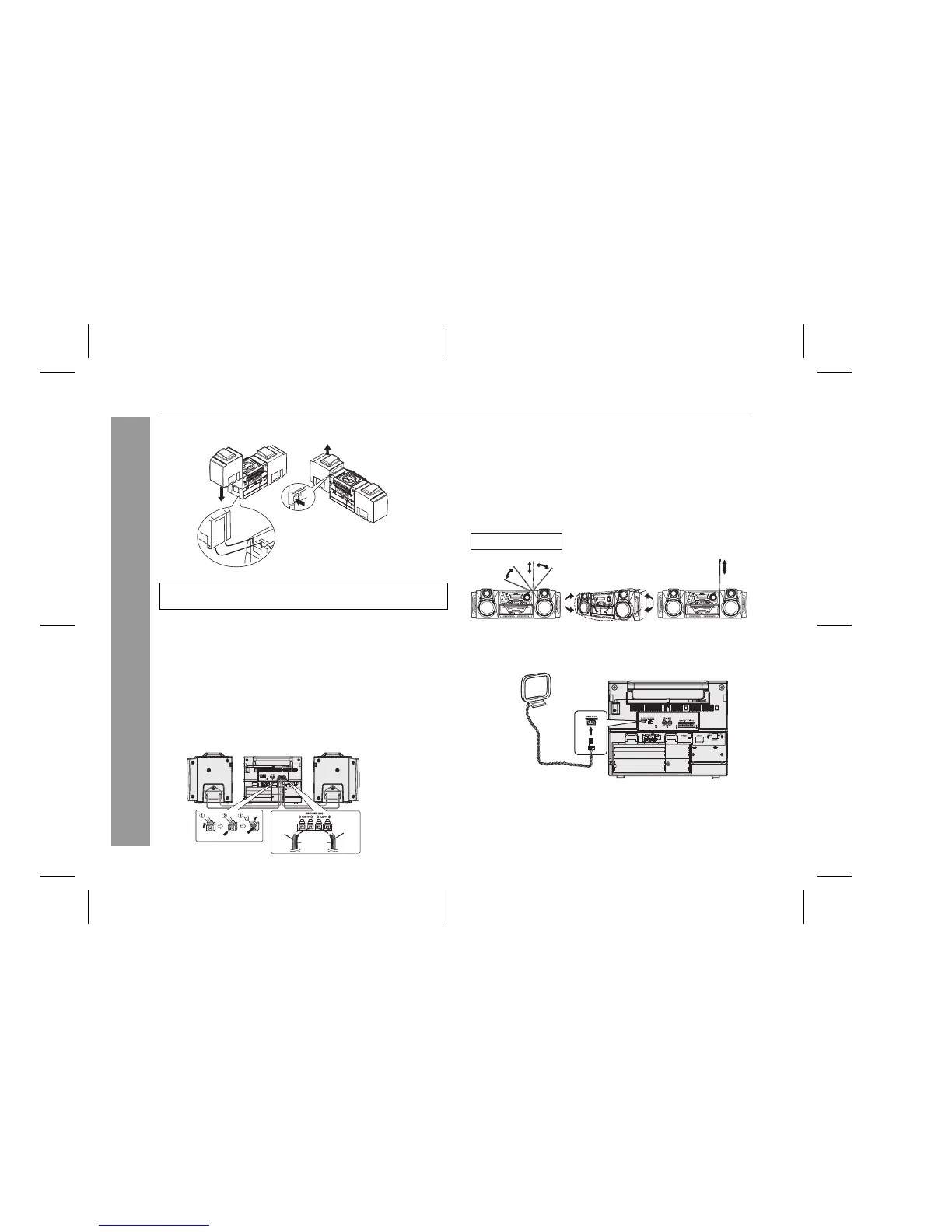

System connections
■
Detachable speakers
■
Mounting the speakers to the main unit
Fit the grooves of the speaker to the guides on the main unit, and
then slide the speaker all the way down to lock it in place.
■
Removing the speakers from the main unit
Push the RELEASE lever as shown in the illustration to unlock the
speaker, and then lift up the speaker to remove it from the main unit.
■
Speaker connection
Connect each speaker wire to the SPEAKER terminals as shown.
Use speakers with an impedance of 8 ohms or more, as lower im-
pedance speakers can damage the unit.
Caution:
Supplied AM Loop aerial:
●
Set the FUNCTION switch to STAND-BY before connecting or
disconnecting the speakers.
Red
Red
Right speaker Left speake
Black
●
Connect the black wire to the minus (-) terminal, and the red wire
to the plus (+) terminal.
●
Do not mix the right channel and left channel wiring when
connecting the speakers to the unit.
●
Do not let the bare speaker wires touch each other as this may
damage the amplifier and/or speakers.
●
Do not stand or sit on the speakers. If the speakers fall or collapse,
you may be injured.
Connect the AM loop aerial to the AM LOOP socket. Position the AM
loop aerial for optimum reception.
Note:
Placing the aerial on the unit or near the AC power lead may cause
noise pickup. Place the aerial away from the unit for better reception.
Aerial Adjustment
FM
SW1/SW2
MW/SW1
