24
LC-30HV4E

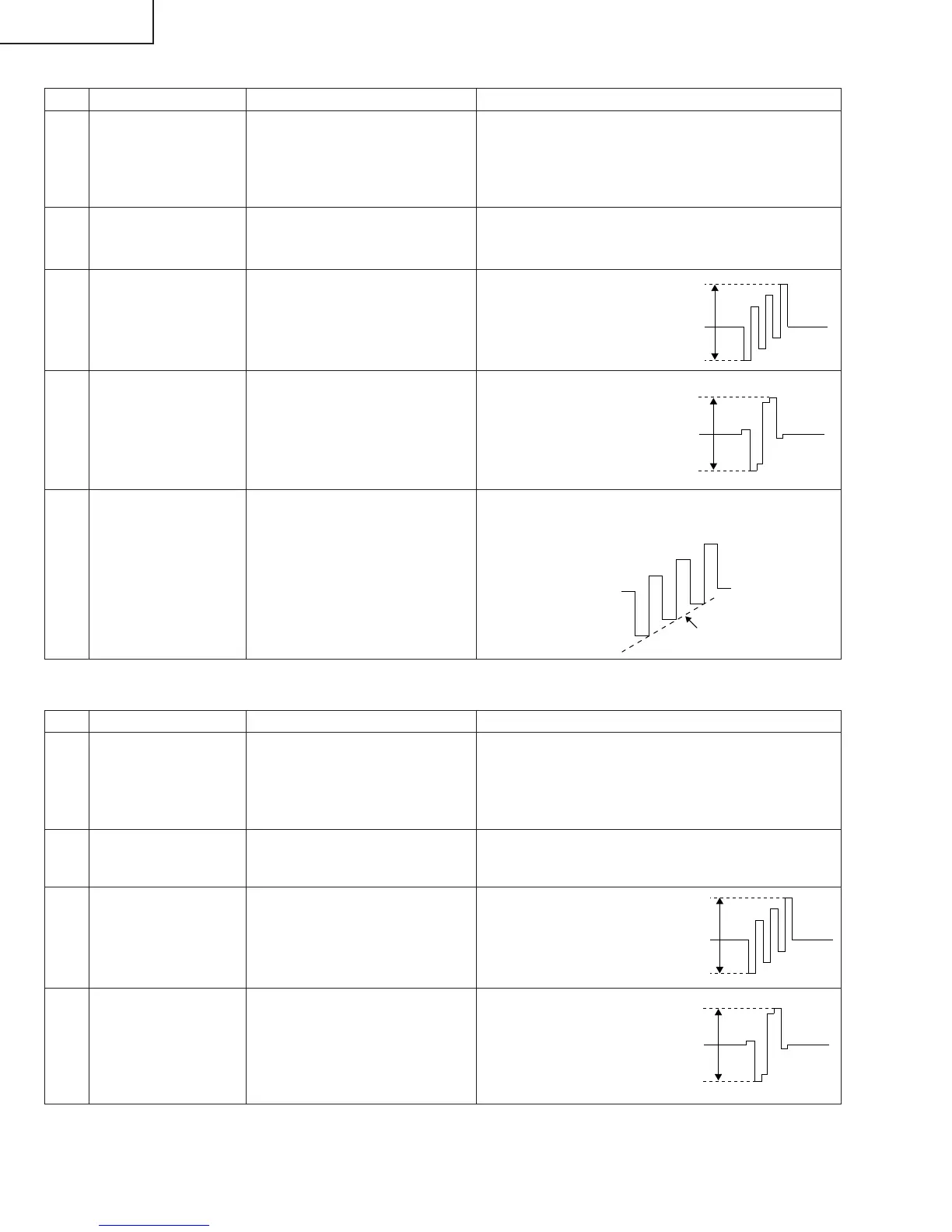

(5) N358 signal adjustment
1 Setup 1. Set colour system to N358.
2. Select N358 source.
100% SMPTE colour bar or similar colour bar
signal including 100% white.
Adjustment items Adjustment conditions Adjustment procedures
2 MAIN N358 Y
LEVEL
adjustment
Adjust pin (1) of P801 to 0.70 ±0.025 Vp-p.
3 MAIN N358 COLOR
GAIN adjustment
Adjust pin (3) of P801 to
0.53 ±0.025 Vp-p.
4 MAIN N358 Cr LEVEL
adjustment
Adjust pin (5) of P801 to
0.53 ±0.025 Vp-p.
5 MAIN N358 TINT
adjustment
Adjust TB1274_MAIN output (TP802) so that waveform
becomes as illustrated below:
0.53V
0.53V
Smoothed
(6) Component 15k Hz signal adjustment
1 Setup 1. Select component 15k Hz.
2. Select component source.
100% SMPTE colour bar or similar colour bar
signal including 100% white.
Adjustment items Adjustment conditions Adjustment procedures
2 MAIN COMP 15k Y
CONTRAST
adjustment
Adjust pin (1) of P801 to 0.70±0.025 Vp-p.
3 MAIN COMP 15k
COLOR GAIN
adjustment
Adjust pin (3) of P801 to
0.70 ±0.025 Vp-p.
4 MAIN COMP 15k Cr
LEVEL adjustment
Adjust pin (5) of P801 to
0.70 ±0.025 Vp-p.
0.70V
0.70V
