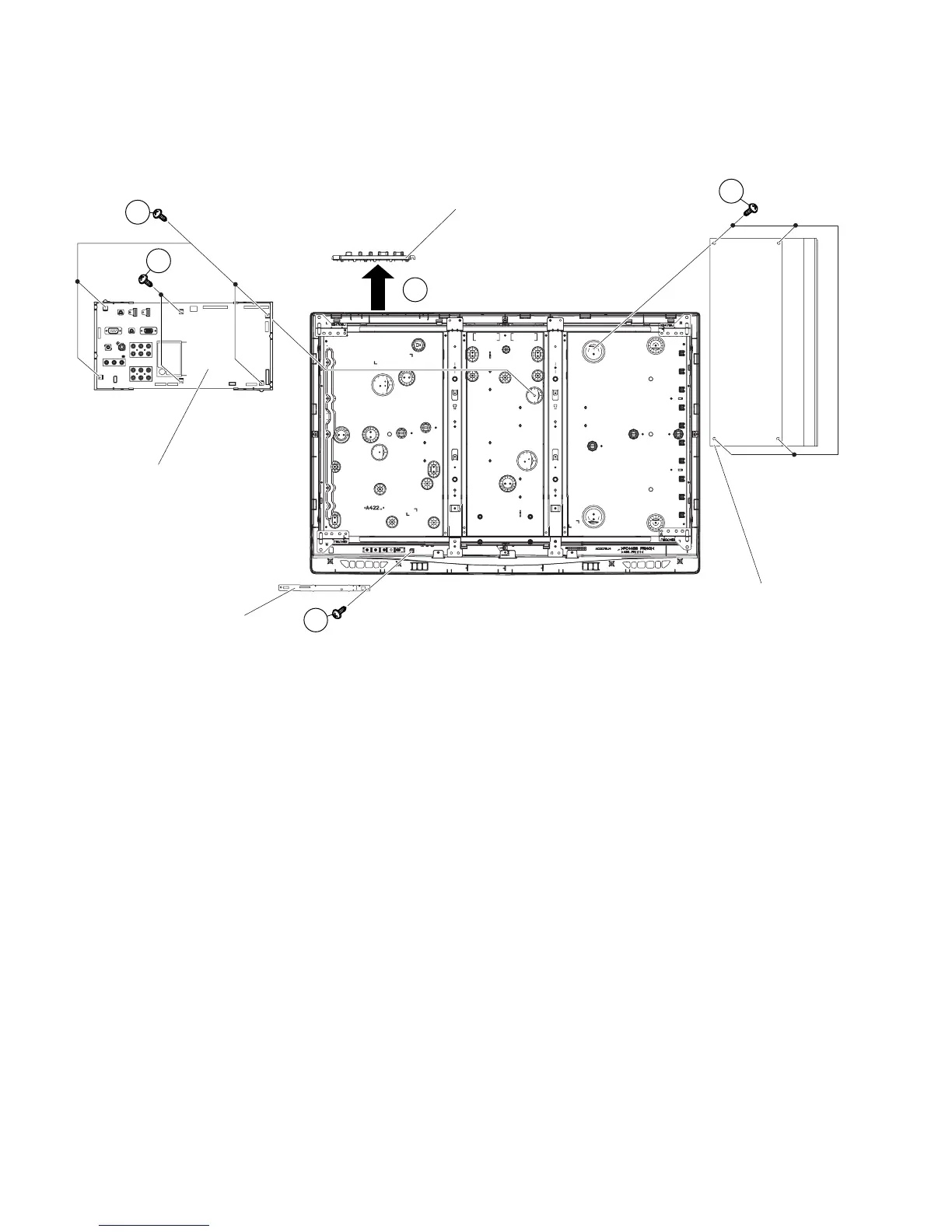

4. REMOVING OF PWB UNITS
1. Remove the 1 screw [1] and detach the R/C, LED PWB Unit.
2. Detach the KEY PWB Unit [2] from Front Cabinet.
3. Remove the 4 screws [3] and detach the INVERTER/POWER PWB Unit.
4. Remove the 4 screws [4], 2 screws [5] and detach the MAIN PWB Unit.
3
5
4
2
MAIN PWB Unit
INVERTER/POWER PWB Unit
KEY PWB Unit
1
R/C, LED PWB Unit
