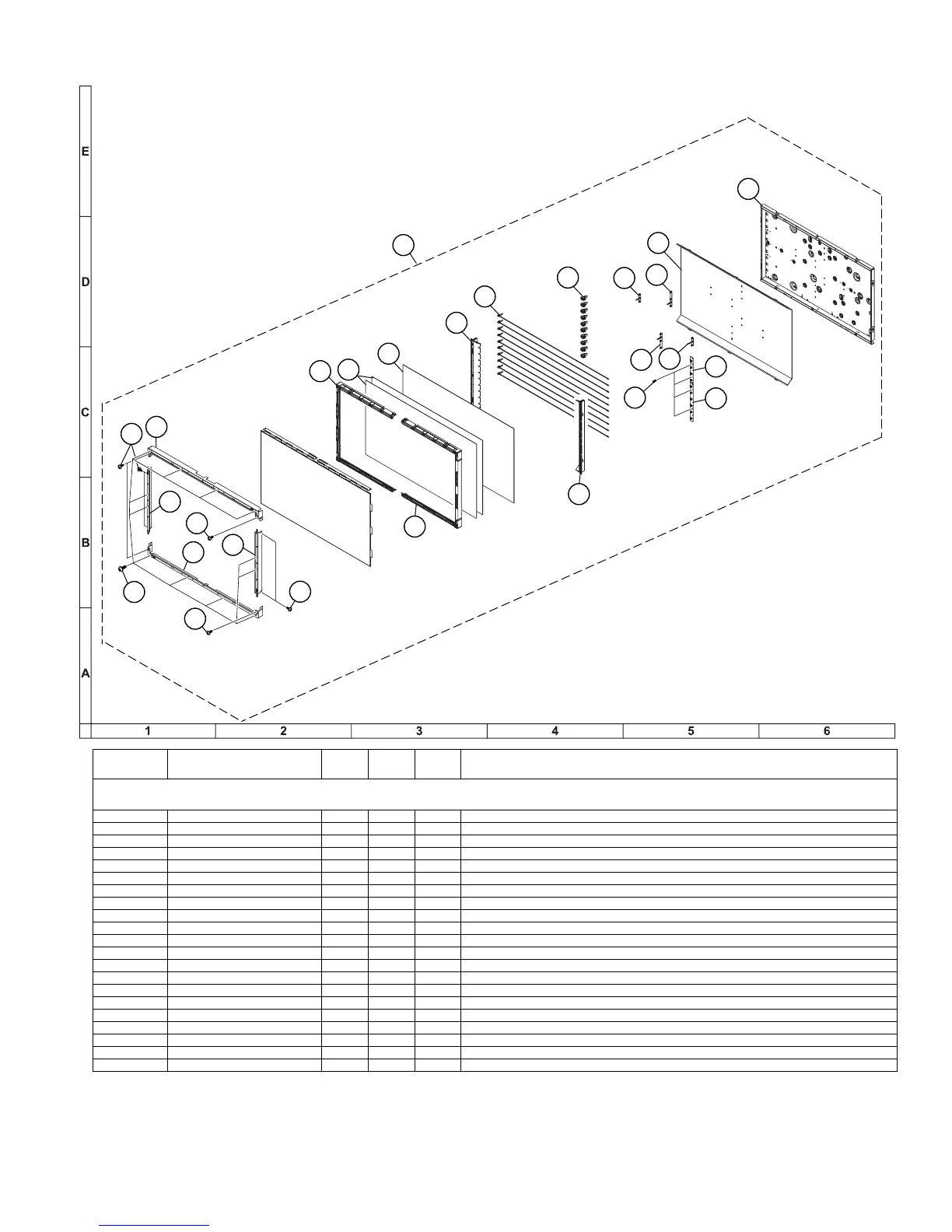

[5] LCD PANEL UNIT (LC-32A33T)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[5] LCD PANEL UNIT (LC-32A33T)
3 R1LK315T3GW30W DA J 32"LCD Panel Module Unit
3-1 CANGKB549WJ01 AS J Bezel Ass'y Top
3-2 CANGKB549WJ02 AR J Bezel Ass'y Bottom
3-3 CANGKB548WJ01 AK J Bezel Ass'y L/R, x2
3-4 CHLDZB061WJ01 AT J P Chassis Ass'y L
3-5 CHLDZB062WJ01 AT J P Chassis Ass'y R
3-6 PSHEPA667WJZZ AU J Diffusion Sheet, x2
3-7 PSLDK3003TPZZ AY J Diffusion Plate
3-8 LHLDZA919WJKZ AL J Lamp Holder L
3-9 LHLDZA918WJKZ AL J Lamp Holder R
3-10 RLMPLA029WJN1 AR J Lamp Unit, x10
3-11 QSOCFA003WJZZ AD J Lamp Socket, x10
3-12 RUNTK3923TPZZ AN J GND Unit (Top)
3-13 RUNTK3924TPZZ AP J GND Unit (Bottom)
3-14 LHLDZA924WJKZ AB J Lamp Clip A, x2
3-15 LHLDZA925WJKZ AC J Lamp Clip B, x2
3-16 PMIR-A166WJZZ AU J Mirror Sheet
3-17 LCHSMA422WJZZ BA J BL Chassis Ass'y
3-18 LX-EZA028WJF9 AB J Screw (Bezel/P Chassis Fix), x12
3-19 LX-HZA039WJF7 AB J Screw (Bezel/BL Chassis Fix), x10
3-20 XHPS730P08KS0 AB J Screw (GND Unit), x4
