LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
4 – 7

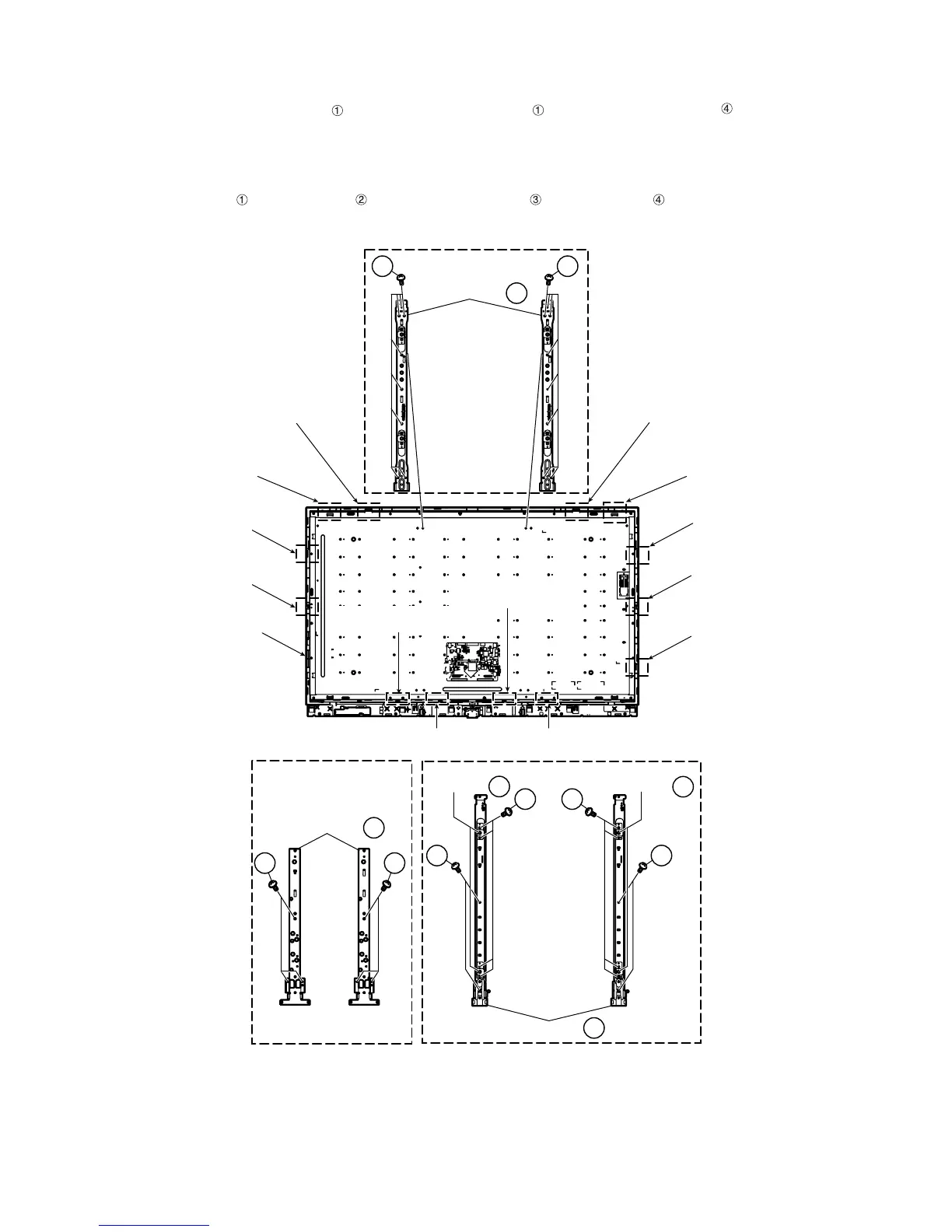

6. Removing of Support Angle.
32/40 inch models
1. Remove the 6 lock screws (32 inch models) , 16 lock screws (40 inch models) and detach the Support Angle .
2. Remove the 8 hooks (32 inch models), 7 hooks (40 inch models) and detach the LCD Panel Module Unit.
46/52 inch models
3. Remove the 4 lock screws and 8 lock screws and detach the VESA Angle and Support Angle .
4. Remove the 4 hooks (46 inch models), 4 hooks (52 inch models) and detach the LCD Panel Module Unit.
