Sharp LC-32LE700E User Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
2 – 1
LC32LE700E
ServiceManual

CHAPTER 2. OPERATION MANUAL
[1] OPERATION MANUAL

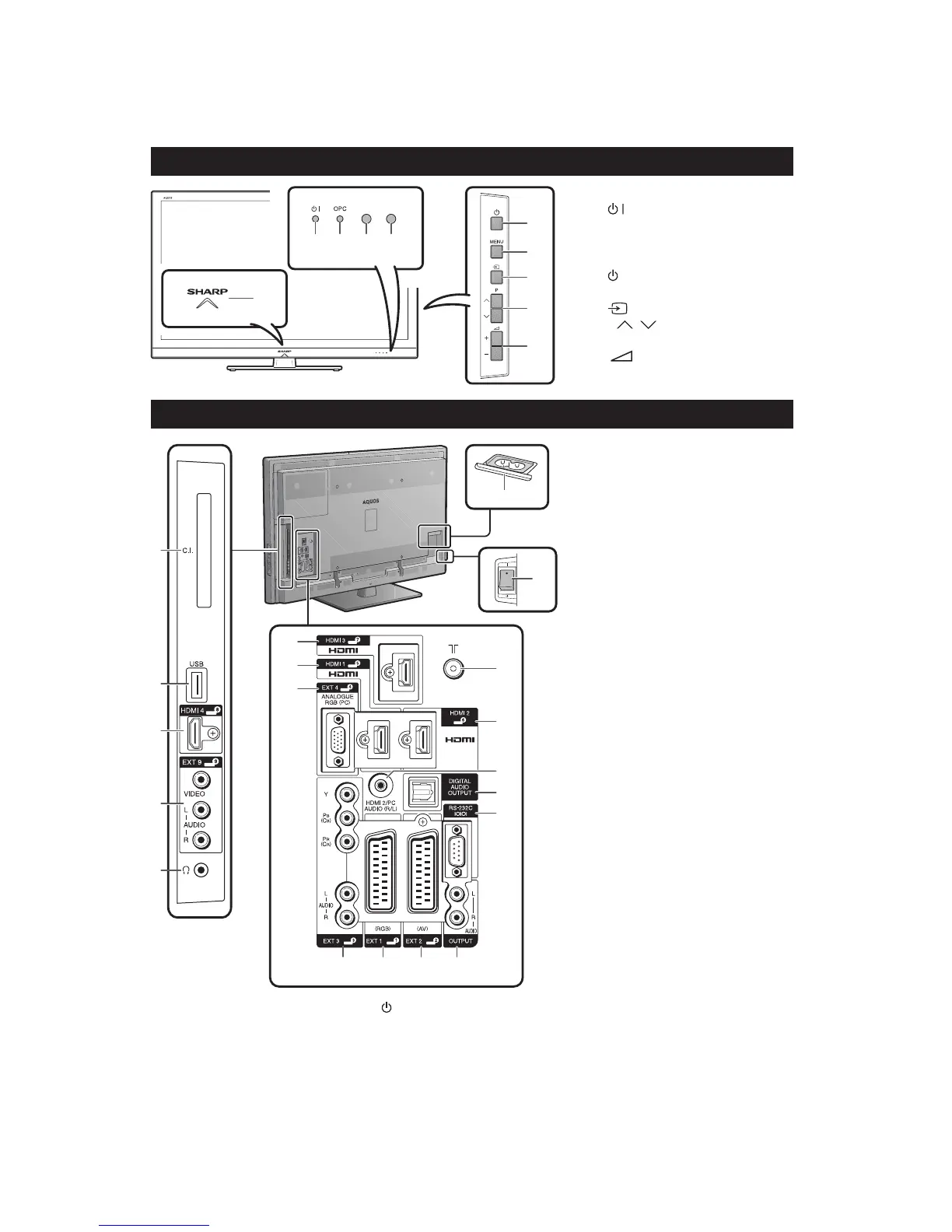

TV (front view)
2 3 45
6
1
7
8
9
10
Blue illumination LED
(Standby/On indicator)
OPC indicator
Remote control sensor
OPC sensor
(Power button)
(Menu button)MENU
P
(Input source button)
/ (Programme [channel]
buttons)
+/- (Volume buttons)
1
2
3
4
5
6
7
8
9
10
TV (rear view)
1
2
6
8
11
12
14
13
15
16 17 18 19
9
10
3
4
5
7
*1
*2
COMMON INTERFACE slot
USB terminal
HDMI 4 (HDMI) terminal
EXT 9 (VIDEO/AUDIO) terminals
Headphones
AC INPUT terminal
MAIN POWER switch
HDMI 3 (HDMI) terminal
HDMI 1 (HDMI) terminal
EXT 4 (ANALOGUE RGB (PC))
terminal
Antenna terminal
HDMI 2 (HDMI) terminal
HDMI 2/PC AUDIO (R/L) jack
DIGITAL AUDIO OUTPUT
terminal
RS-232C terminal
EXT 3 (COMPONENT/AUDIO)
terminals
EXT 1 (RGB) terminal
EXT 2 (AV) terminal
OUTPUT (AUDIO) terminals
WARNING
Excessive sound pressure from earphones
and headphones can cause hearing loss.
Do not set the volume at a high level.
Hearing experts advise against extended
listening at high volume levels.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
•
•
When the MAIN POWER switch is turned off ( ), the amount of electric power consumed will be reduced to 0.01 W or less. However,
unlike when unplugging the AC cord, the power is not completely disconnected.
The HDMI 2 and EXT 4 terminals can both use the same audio input terminal (HDMI 2/PC AUDIO (R/L)). However, the proper item must
be selected in the “PC audio select” menu.
*2
*1

Sharp LC-32LE700E Specifications

General

Display diagonal	32 \
Native aspect ratio	16:9
Native refresh rate	100 Hz
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	1

Weight and Dimensions

Depth (without stand)	92 mm
Width (without stand)	767 mm
Height (without stand)	502 mm
Weight (without stand)	13500 g
