Sharp LC-32LE700E User Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
4 – 15

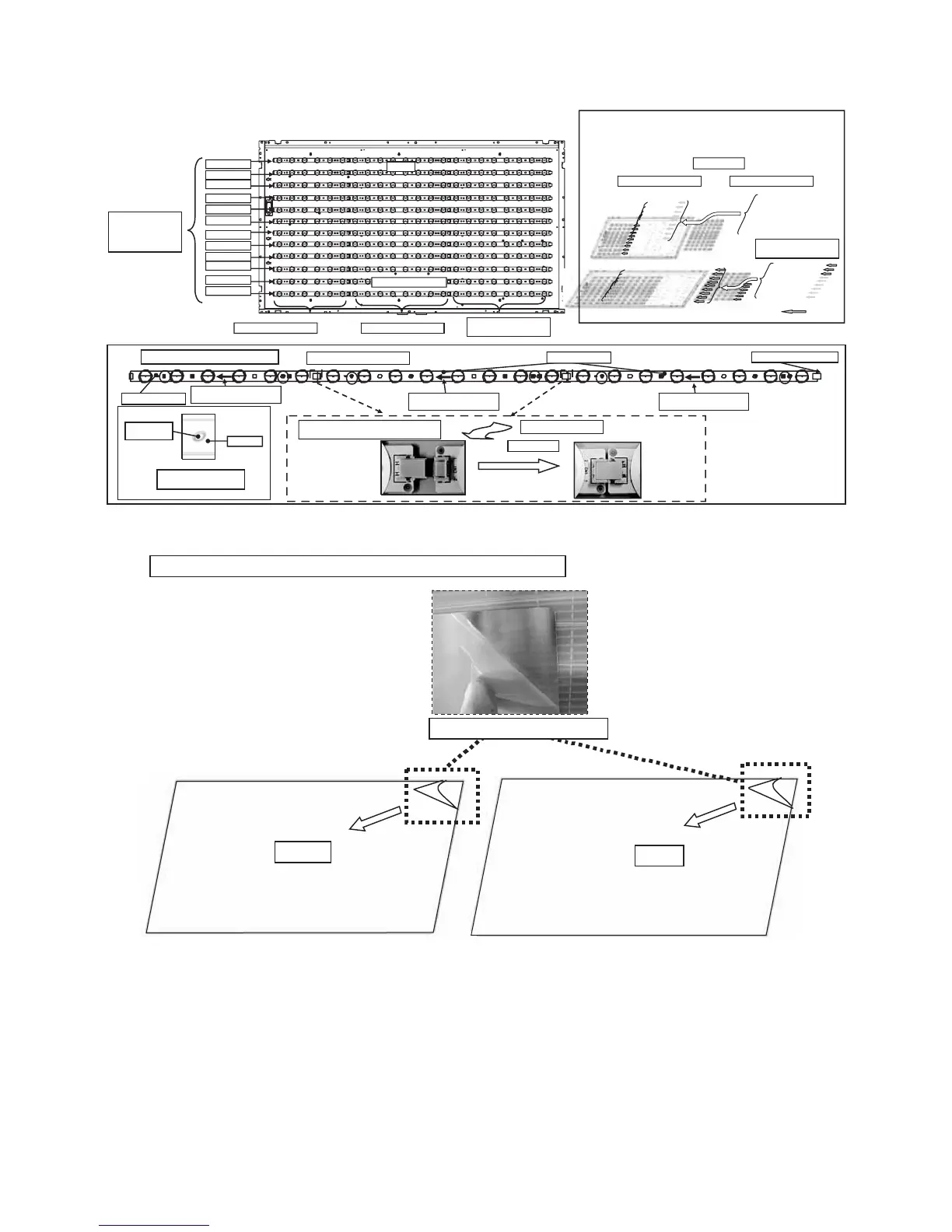

14. Handling notes (52 inch models).
1. Set and connect LED-PWBs.
2. Peel off the lamination film of LENS SHEET on the both sides.
RUNTKA596WJ01 / WJ02 RUNTKA598WJ01 / WJ02
Top Side
Bottom Side (C-PWB side)
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
RUNTKA***WJ02
*Same on the other line.
Set and connect LED-PWBs
Boss fitting
(showing in blue circles
LED-PWB
Boss of
BL-CHASSIS
TERMINATOR˴is Attached
RUNTKA596WJ**
RUNTKA598WJ**
<Reference>
The insertion process of the LED6-PWB(1&2) and LED8-PWB(1&2)
㧨CAUTION㧪
It being alternated
RUNTKA***WJ01
and RUNTKA***WJ02.
RUNTKA598WJ01 / WJ02
and TERMINATOR
RUNTKA596WJ01 / WJ02 RUNTKA598WJ01 / WJ02
RUNTKA598WJ01 / WJ02
and TERMINATOR
LED-PWB set direction
(arrowmarktoharnessside)
LED-PWB set direction
(arrow mark to harness side)
Insert the connector horizontally mutually.
Do not add impossible power.
LED-PWB set direction
(arrow mark to harness side)
Ionized air blowers
blowing way
blowing way
FRONT
BACK
Peel off the lamination film of LENS SHEET on the both sides.
Peel off the lamination film.

Sharp LC-32LE700E Specifications

General

Display diagonal	32 \
Native aspect ratio	16:9
Native refresh rate	100 Hz
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	1

Weight and Dimensions

Depth (without stand)	92 mm
Width (without stand)	767 mm
Height (without stand)	502 mm
Weight (without stand)	13500 g
