9.7. PC signal adjustment (ANALOG RPG)
9.8. RGB (SCART) adjustment (RGB 15K)

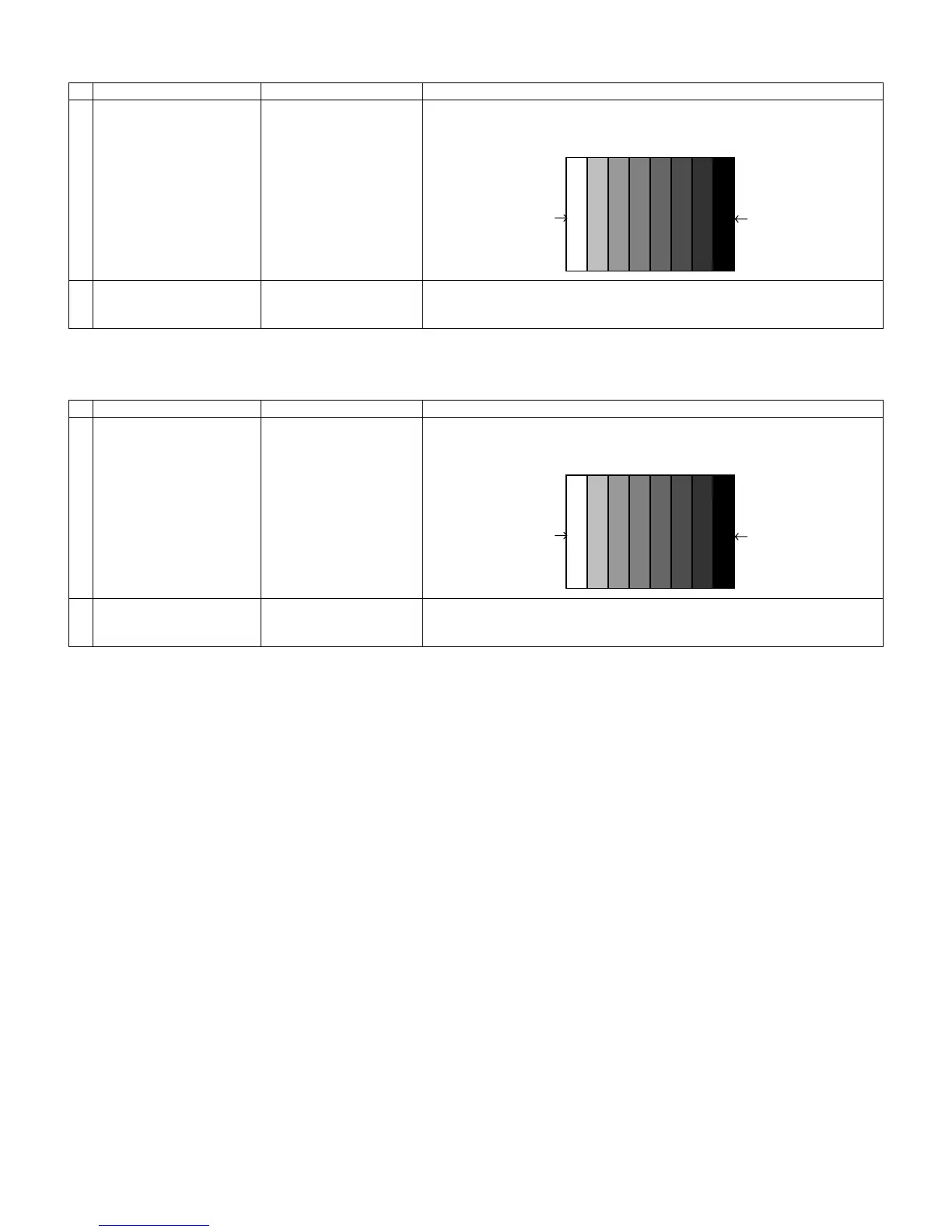

Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
XGA, 60Hz
100% Full Field Colour Bar
Signal
[Terminal]
EXT4 PC IN
• Feed the XGA 60Hz 100% full field colour bar signal (100% colour saturation)
to EXT4 PC IN.
2 Auto adjustment perfor-
mance
Adjustment process
[ANALOG PC ADJ] menu
page 8/17
Bring the cursor on [ANALOG PC ADJ] and press [OK].
[ANALOG PC ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
RGB 15K, 50Hz
100% Full Field Colour Bar
Signal
[Terminal]
EXT1 SCART RGB IN
• Feed the RGB 15k 50Hz 100% full field colour bar signal (100% colour satura-
tion) to EXT1 SCART IN.
2 Auto adjustment perfor-
mance
Adjustment process
[SCART RGB ADJ] menu
page 9/17
Bring the cursor on [SCART RGB ADJ] and press [OK].
[SCART RGB ADJ OK] appears when finished.
100% white Black
100% white Black
