LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
7 – 13

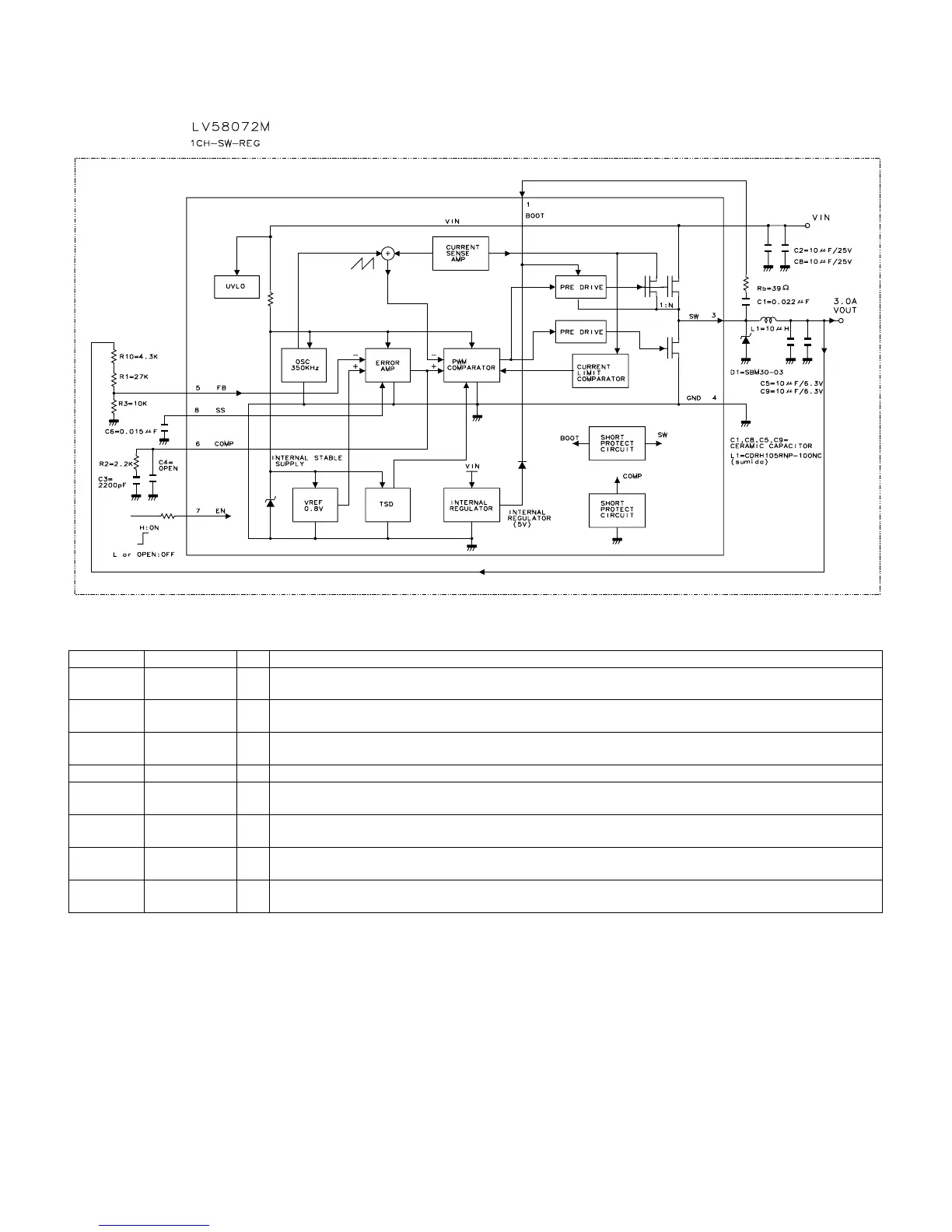

2.8. IC9604, IC9606 (VHiLV58072M-1Y)
2.8.1 Block Diagram
2.8.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1BOOT I
Bootstrap Terminal
Connect the boost capacity of about 0.022µF between SW terminals.
2VIN I
Input Voltage Terminal
Connect very big capacity between GND.
3SW O
Power Switch Terminal
Connect output LC filter. Moreover connect the above-mentioned capacity between BOOT terminals .
4 GND - Ground
5FB I
Feed Back Terminal
The output voltage is set by the division resistance between the output voltages.
6COMP I
Phase Compensation Terminal
The phase amends external capacity and the resistance of the DC/DC converter close loop are connected.
7EN I
Enable Terminal
The converter works by the High voltage impression.
8SS -
Softstart Terminal
The soft start time is set by built-in 10µA source voltage and external soft start capacity.
