LC-37D44E/S/RU-BK/GY
2 – 2

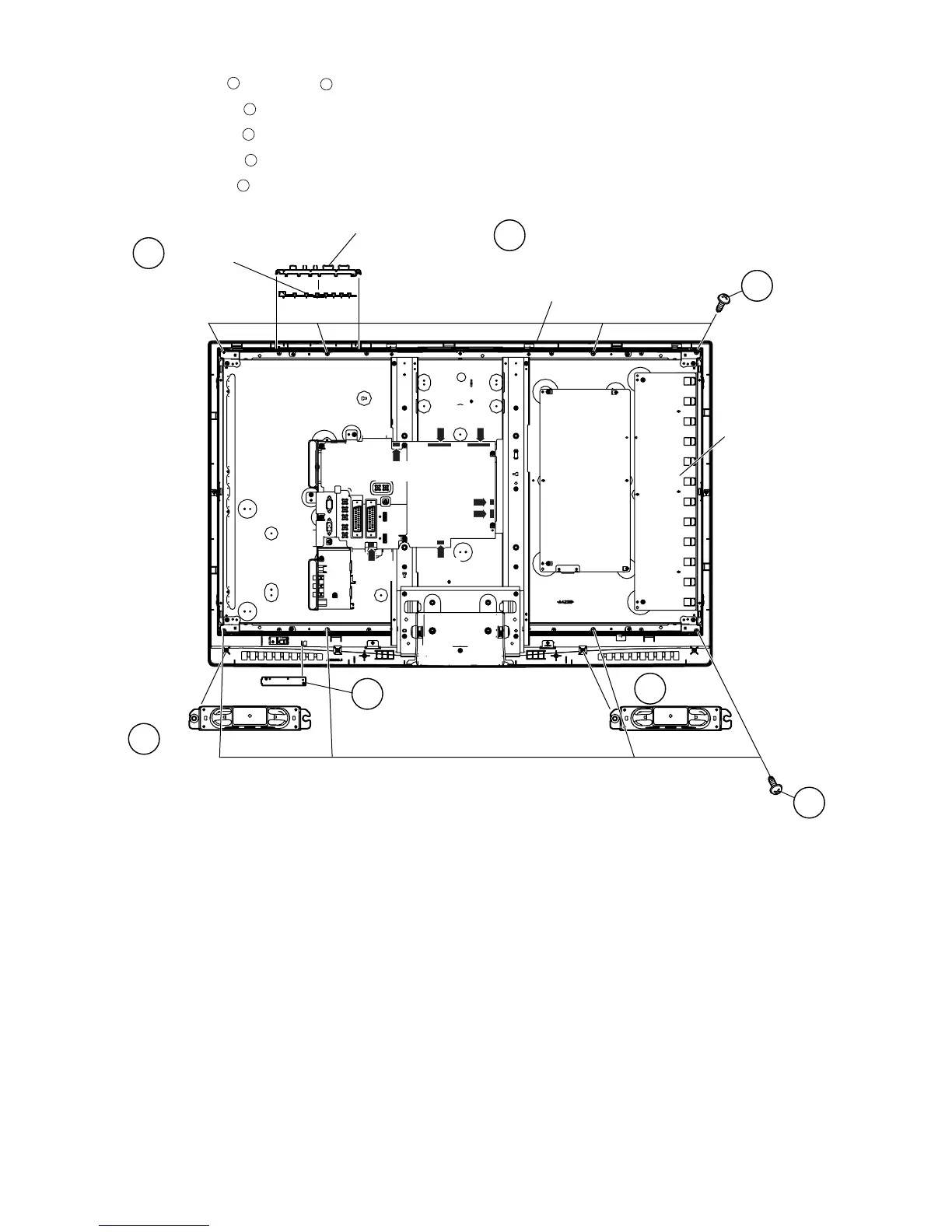

3. Disconnect the KM, LB, PD, SP, RA connectors and FFCs.
4. Remove the Speaker (L) , Speaker (R) .
5. Remove the LED PWB Unit .
6. Remove the Control Button .
7. Remove the KEY PWB Unit from Control Button.
8. Remove the 8 lock screws and detach the LCD PANEL from the Front Cabinet.
10
11
12
13
14
15
LED PWB Unit
SP-L
SP-R
KEY PWB Unit
Control Button
Front Cabinet
LCD PANEL
[SP]
[PD]
[FFC]
[LB]
[RA]
[KM]
13
15
15
10
11
12
14
To Next Page
