Sharp LC-37D44E Service Manual

LC-37D44E/S/RU-BK/GY
2 – 3

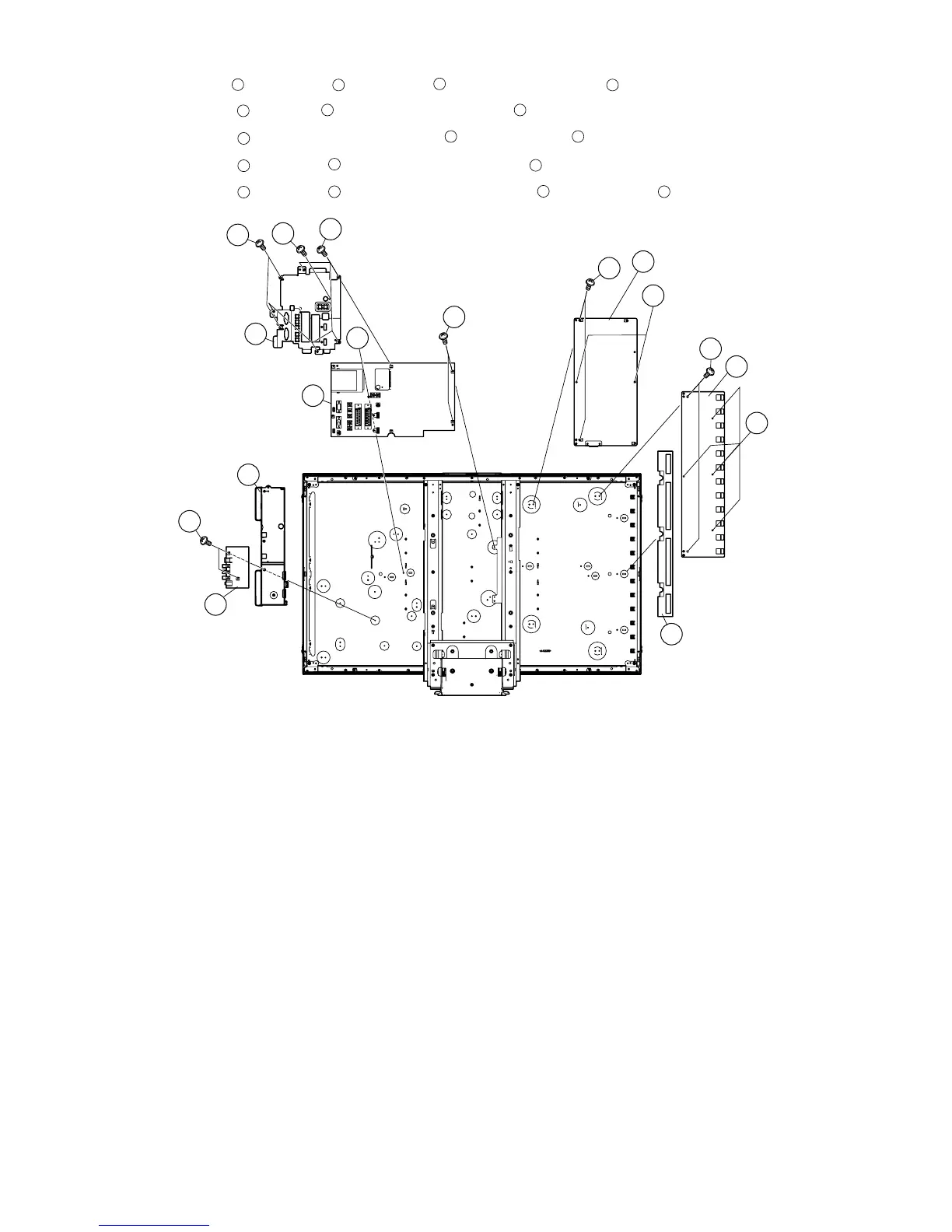

9. Remove the 1 lock screw , 5 lock screws , 2 lock screws and detach the Main Shield .
10.Remove the 2 lock screws and 1 hook and detach the Main PWB Unit .
11.Remove the 2 lock screws and detach the Mini AV PWB Unit and Mini AV Cover .
12.Remove the 2 lock screws and 2 hooks and detach the Power PWB Unit .
13.Remove the 2 lock screws and 4 hooks and detach the Inverter PWB Unit and Barrier Sheet .
16
17
18
19
20
21 22
23
24
25
26
27
28
29
30
31
32
16
18
19
20
32
28
26
29
30
27
17
Main Shield
22
23
25
Main PWB Unit
24
Mini AV PWB Unit
Mini AV Cover
Power PWB Unit
31
Inverter PWB Unit
Barrier Sheet
21
