14

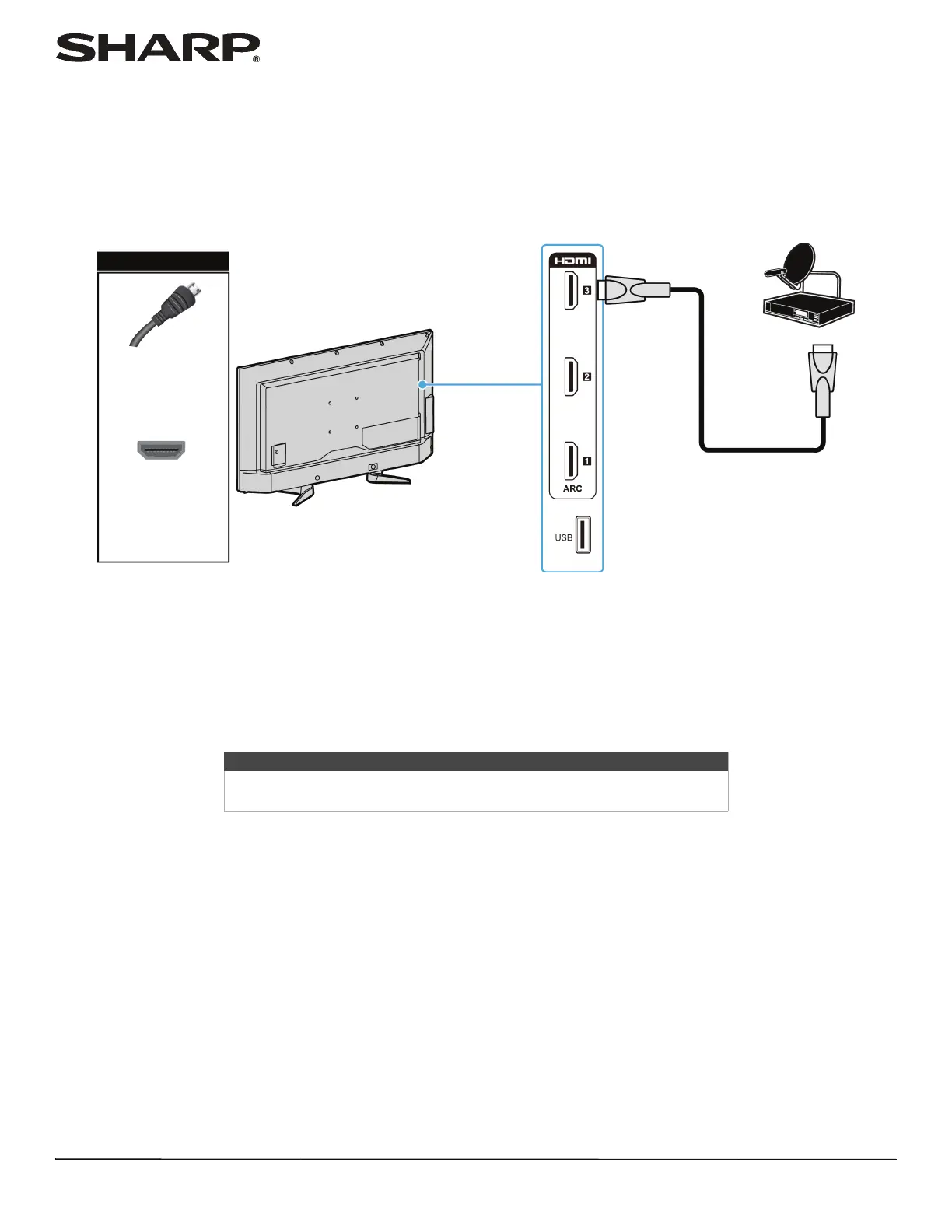

LC-40LB480U Full HD LED 1080p TV
AV (good)
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the VIDEO jack and L and R AUDIO jacks on your TV and to the AV and audio out
jacks on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to select AV, then press ENTER.
Notes
Cables are often color-coded to match color-coded jacks.
Important
When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.
Cable or
satellite box
AV cable
Side of TV
AV cable
connector
AV jack
Audio cable
connectors
Analog
audio jacks
On your TV
