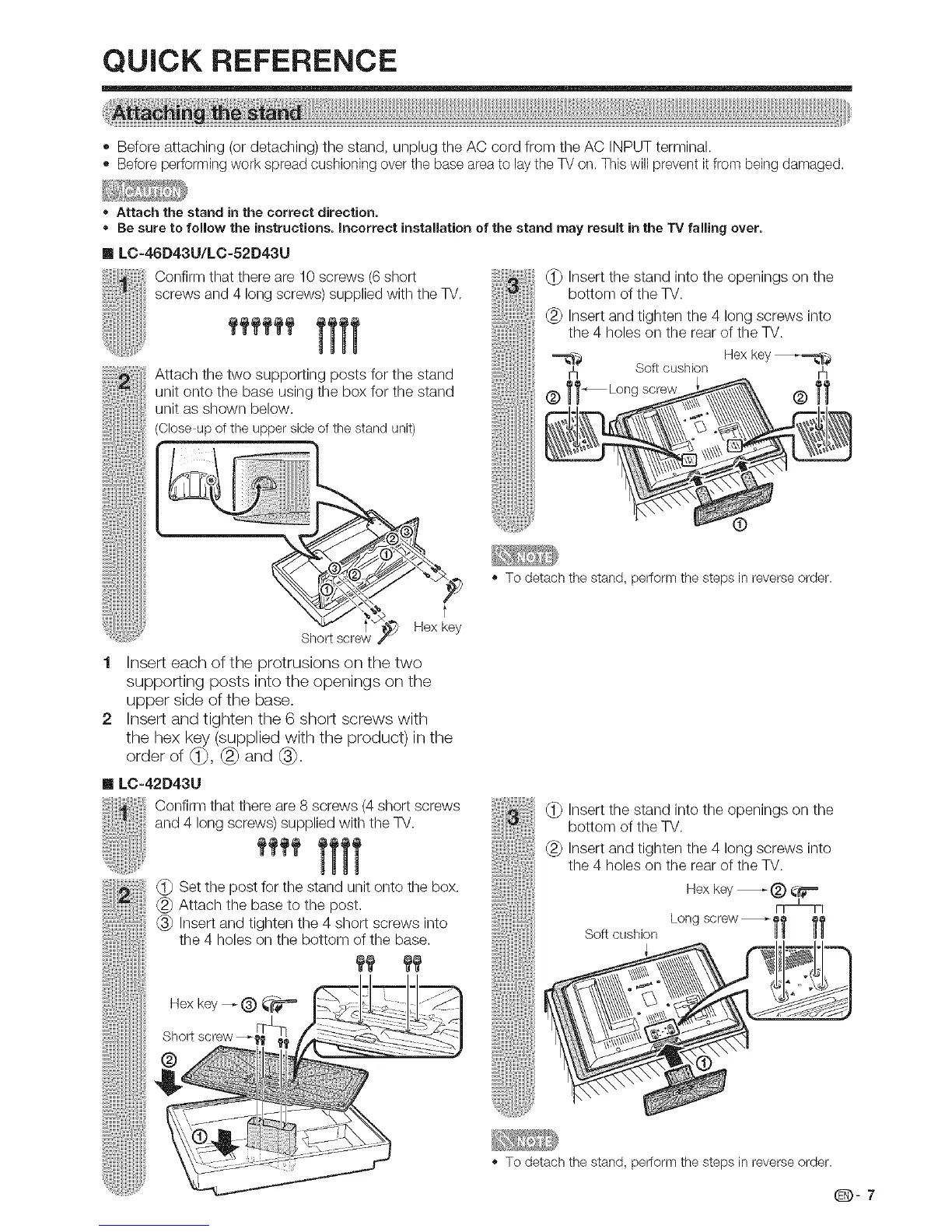

Sharp LC 42D43U - 42" LCD TV - QUICK REFERENCE; Attaching the stand

QUICK REFERENCE
• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
• Before performing work spread cushioning over tile base area to lay the TV on. Thb will prevent it from being damaged.
• Attach the stand inthe correct direction.
• Besure to follow the instructions,incorrect installation of the stand may result inthe "IV failing over.
[] LC-46D43U/LC-52D43U
Confirm that there are 10 screws (6 short
screws and 4 long screws) supplied with the TV,
1
"'" TTTT
Attach the two supporting posts for the stand
unit onto the base using the box for the stand
unit as shown below.
(Close<_pof the upper side ofthe stand unit)
eYSt_ortscrew f"
Insert each of the protrusions on the two
supporting posts into the openings on the
upper side of the base.
Insert and tighten the 6 short screws with
the hex key (supplied with the product) in the
order of (_, (_ and (_.
[] LC-42D43U
Confirm that there are 8 screws (4 short screws
and 4 long screws) supplied with the TV.
Set the post for the stand unit onto the box.
Attach the base to the post.
Insert and tighten the 4 short screws into
the 4 holes on the bottom of the base,
Hex key _(_) (_='
Short screw
1_ Insert the stand into the openings on the
bottom of the TV.
(_) Insert and tighten the 4 long screws into
the 4 holes on the rear of the TV.
To detach the stand, pertorm the steps in reverse order.
(_ Insert the stand into the openings on the
bottom of the TV.
(_) Insert and tighten the 4 long screws into
the 4 holes on the rear of the TV.
Hex key _(_) (_T""
Longserew
oftoush,on TI
To detach the stand, pertorm the steps in reverse order.
Q-7
