[4] How to replace the Touch Sensor key PWB
1. Replace the touch sensor key PWB in a clean room.
Be sure to remove the dust from the unit before carrying it into the clean room.
2. Remove the touch sensor key PWB from the front glass.
3. Clean the bonding surface with alcohol.
Depending on the dirt, water solution of 80%vol can be effective.

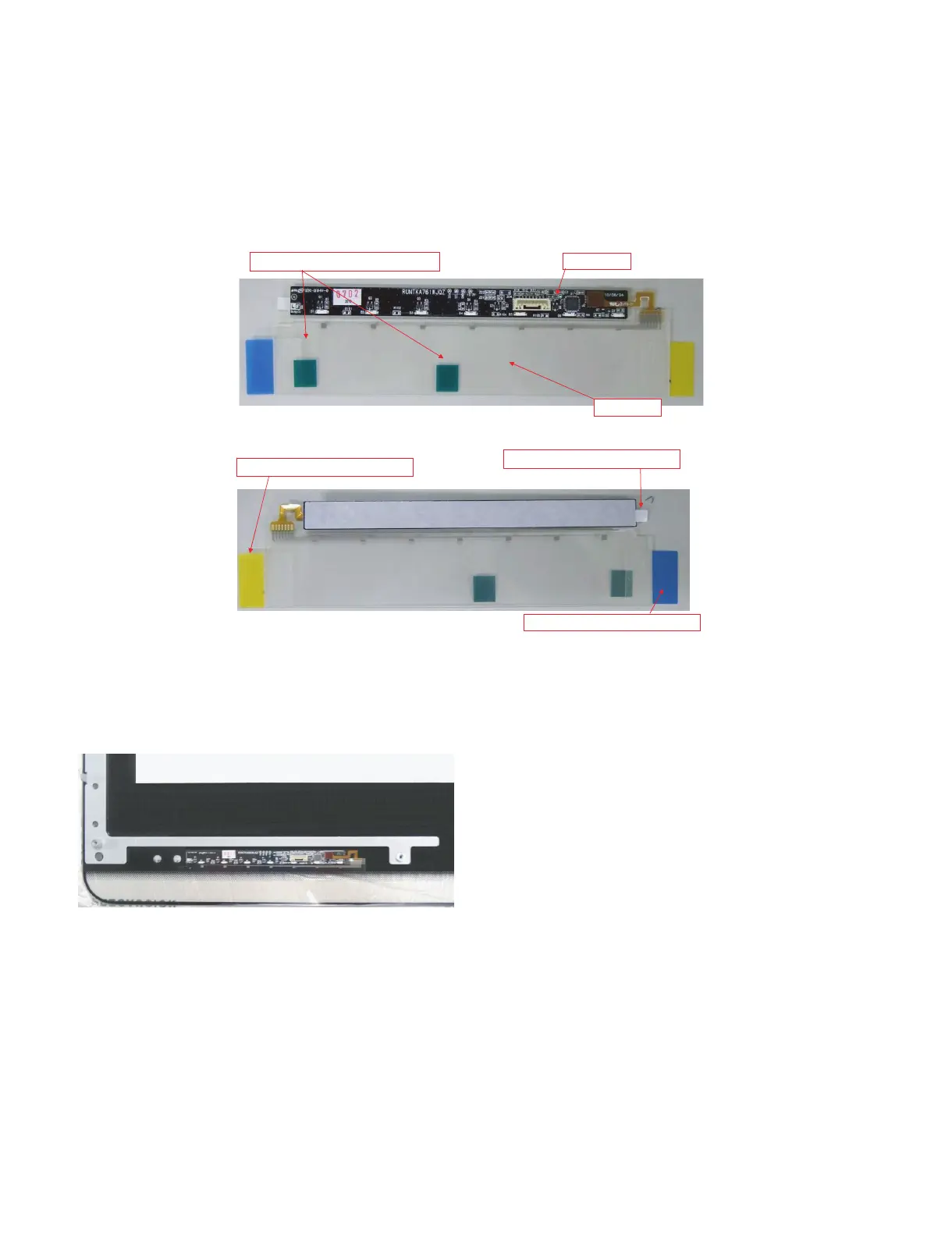

4. Product Manual Touch Sensor Key with ITO (Transparent Electrode)
i) Remove the touch sensor key from the front glass.
FPCB
FPCB/ITO connecting tape
ITO
Pull tap of double-sided tape
Pull tap of double-sided tape
Pull tap of protective sheet
* When peeling the ITO section, check that there is no glue
residue on the front glass.
If glue residue, dirt, fingerprints, etc. are found, wipe them
off with anhydrous alcohol.
Do not apply anhydrous alcohol to the double-sided tape
on the metal part attaching to the glass.

Sharp LC-46LE925E Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	46 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	100 Hz
LED backlighting type	Edge-LED
Viewing angle, horizontal	176 °
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	-
HDMI ports quantity	4
DVI-D ports quantity	0
Common interface (CI)	No
USB 2.0 ports quantity	1
Common interface Plus (CI+)	Yes
Consumer Electronics Control (CEC)	Aquos Link
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.2 W
Power consumption (typical)	95.1 W
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T

Weight and Dimensions

Depth (with stand)	340 mm
Height (with stand)	785 mm
Weight (with stand)	45000 g
Depth (without stand)	39 mm
Width (without stand)	1127 mm
Height (without stand)	734 mm
