Sharp LC-46LE925E User Manual

LC-46/60LE925E
2 – 1
LC-46LE925E
Service Manual
CHAPTER 2. OPERATION MANUAL

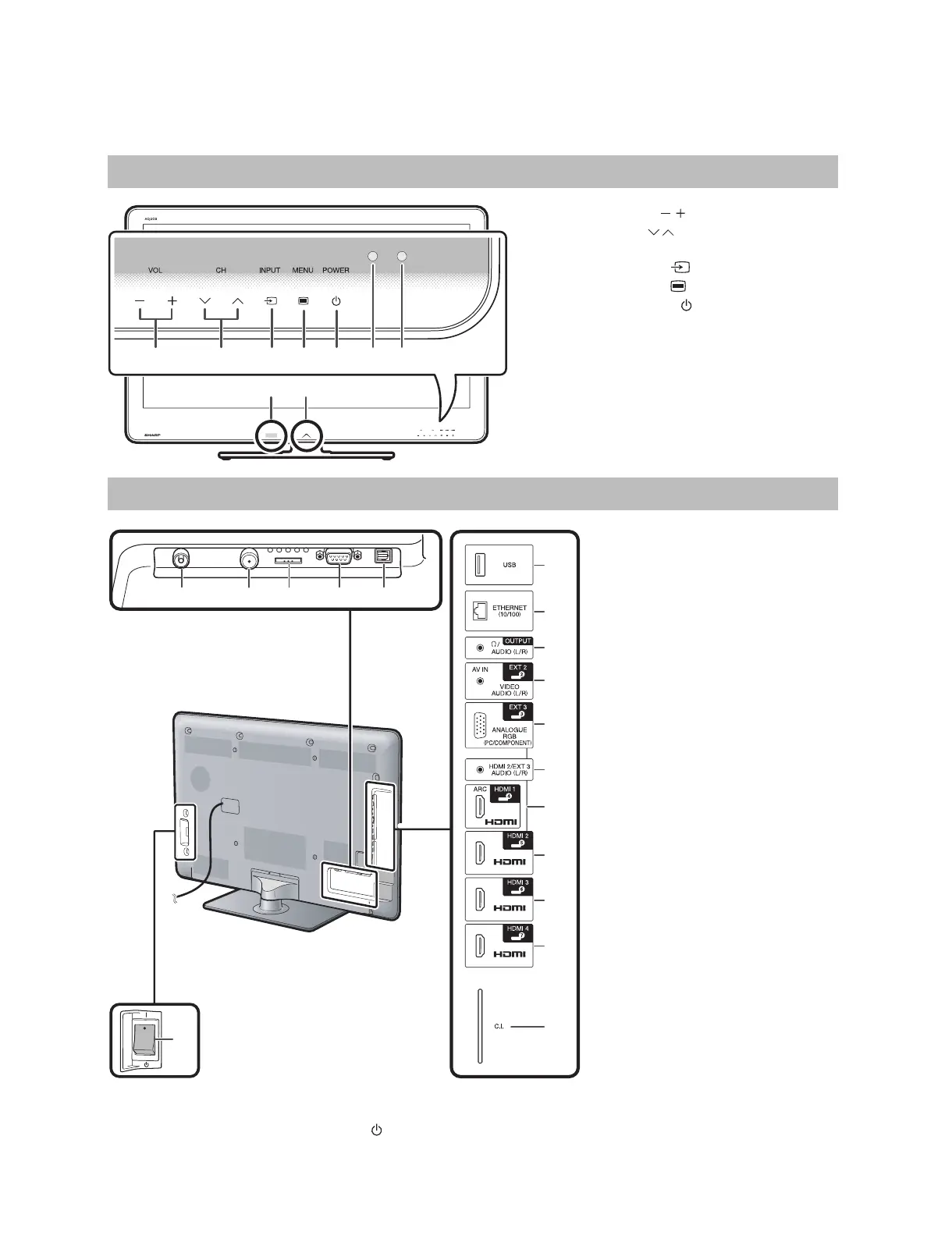

[1] Parts Name
TV (front view)
1 3 45
98
672
1VOL/ (Volume buttons)
2CH/ (Programme [channel]
buttons)
3INPUT (Input source button)
4 MENU (Menu button)
5POWER(Power button)
6 OPC sensor
7 Remote control sensor
8 Infrared emitter
9 Illumination LED*
1
*1 3D mode: Blue illumination
2D mode: White illumination
TV (rear view)
17
*2
11
*1
7
6
8
9
10
12
13
14
15
16
1
2
3 4 5
1 Antenna terminal
2 Satellite antenna terminal
3 EXT 1 (RGB) terminal
4 RS-232C terminal
5 DIGITAL AUDIO OUTPUT
terminal
6 USB terminal
7 ETHERNET (10/100) terminal
8 OUTPUT (Headphones/AUDIO
(L/R)) terminal
9
EXT 2 (AV IN/VIDEO/AUDIO (L/R))
terminal
10 EXT 3 (ANALOGUE RGB (PC/
COMPONENT)) terminal
11 HDMI 2/EXT 3 AUDIO (L/R) jack
12 HDMI 1 (HDMI/ARC) terminal
13 HDMI 2 (HDMI) terminal
14 HDMI 3 (HDMI) terminal
15 HDMI 4 (HDMI) terminal
16 C.I. (COMMON INTERFACE) slot
17 MAIN POWER switch
WARNING
• Excessive sound pressure from earphones
and headphones can cause hearing loss.
• Do not set the volume at a high level.
Hearing experts advise against extended
listening at high volume levels.
*1 The HDMI 2 and EXT 3 terminals can both use the same audio input terminal (HDMI 2/EXT 3 AUDIO (L/R)). However, the proper item
must be selected in the “Audio select” menu.
*2 When the MAIN POWER switch is turned off ( ), the amount of electric power consumed will be reduced to 0.01 W or less. However,
unlike when unplugging the AC cord, the power is not completely disconnected.

Sharp LC-46LE925E Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	46 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	100 Hz
LED backlighting type	Edge-LED
Viewing angle, horizontal	176 °
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	-
HDMI ports quantity	4
DVI-D ports quantity	0
Common interface (CI)	No
USB 2.0 ports quantity	1
Common interface Plus (CI+)	Yes
Consumer Electronics Control (CEC)	Aquos Link
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.2 W
Power consumption (typical)	95.1 W
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T

Weight and Dimensions

Depth (with stand)	340 mm
Height (with stand)	785 mm
Weight (with stand)	45000 g
Depth (without stand)	39 mm
Width (without stand)	1127 mm
Height (without stand)	734 mm
