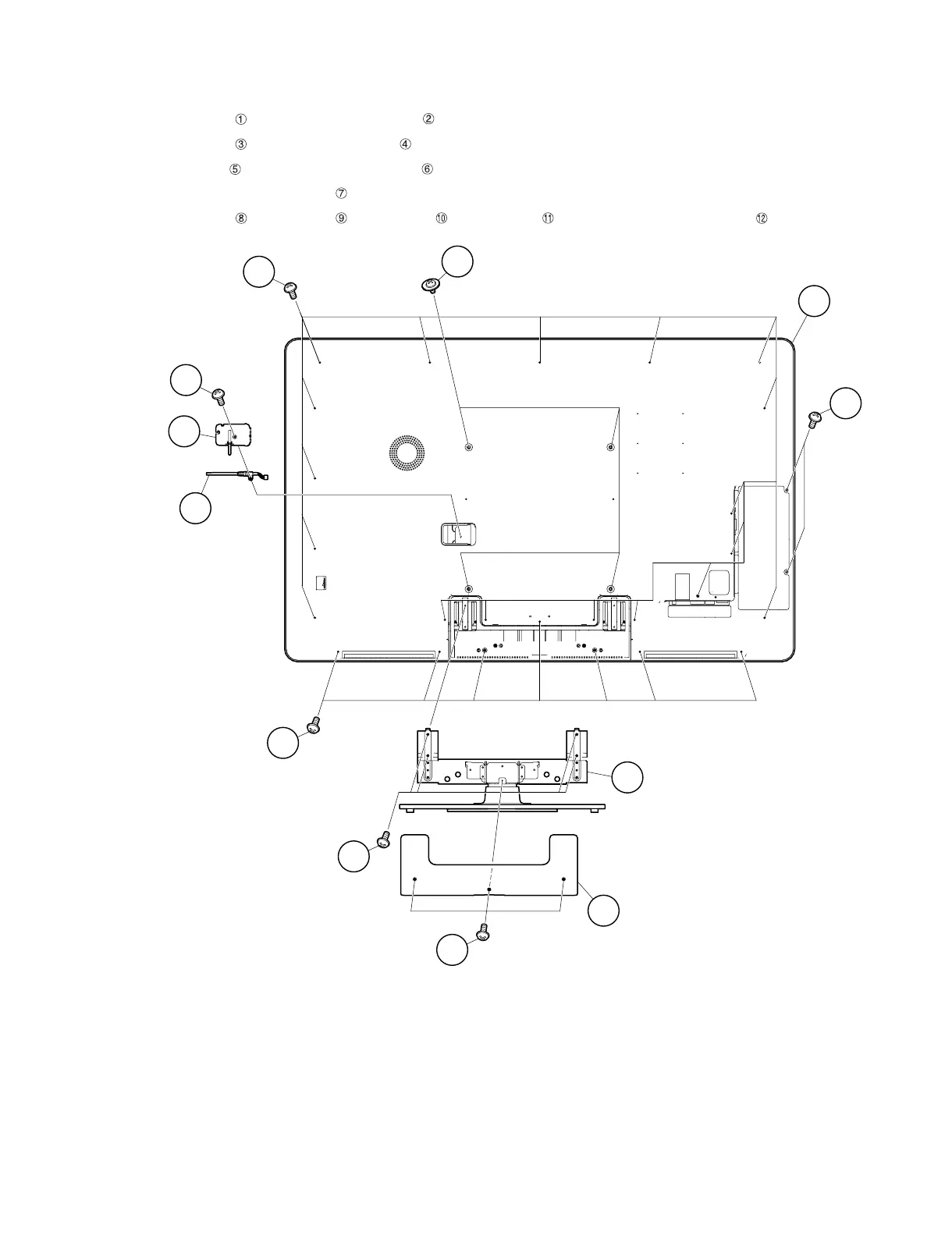

[2] REMOVING OF MAJOR PARTS (LC-60LE925E)
1. Removing of Stand Unit and Rear Cabinet Ass'y.
1. Remove the 3 lock screws and detach the Support Cover .
2. Remove the 4 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC wire and detach the AC Cord .
5. Remove the 4 lock screws , 7 lock screws , 2 lock screws , 18 lock screws and detach the Rear Cabinet Ass'y .
9
11
5
6
7
10
3
1
2
4
8
12
AC Cord Cover
AC Cord
[AC]
[AC]
Stand Unit
Support Cover
Rear Cabinet Ass'y
