LC-46/60LE925E
4 – 5

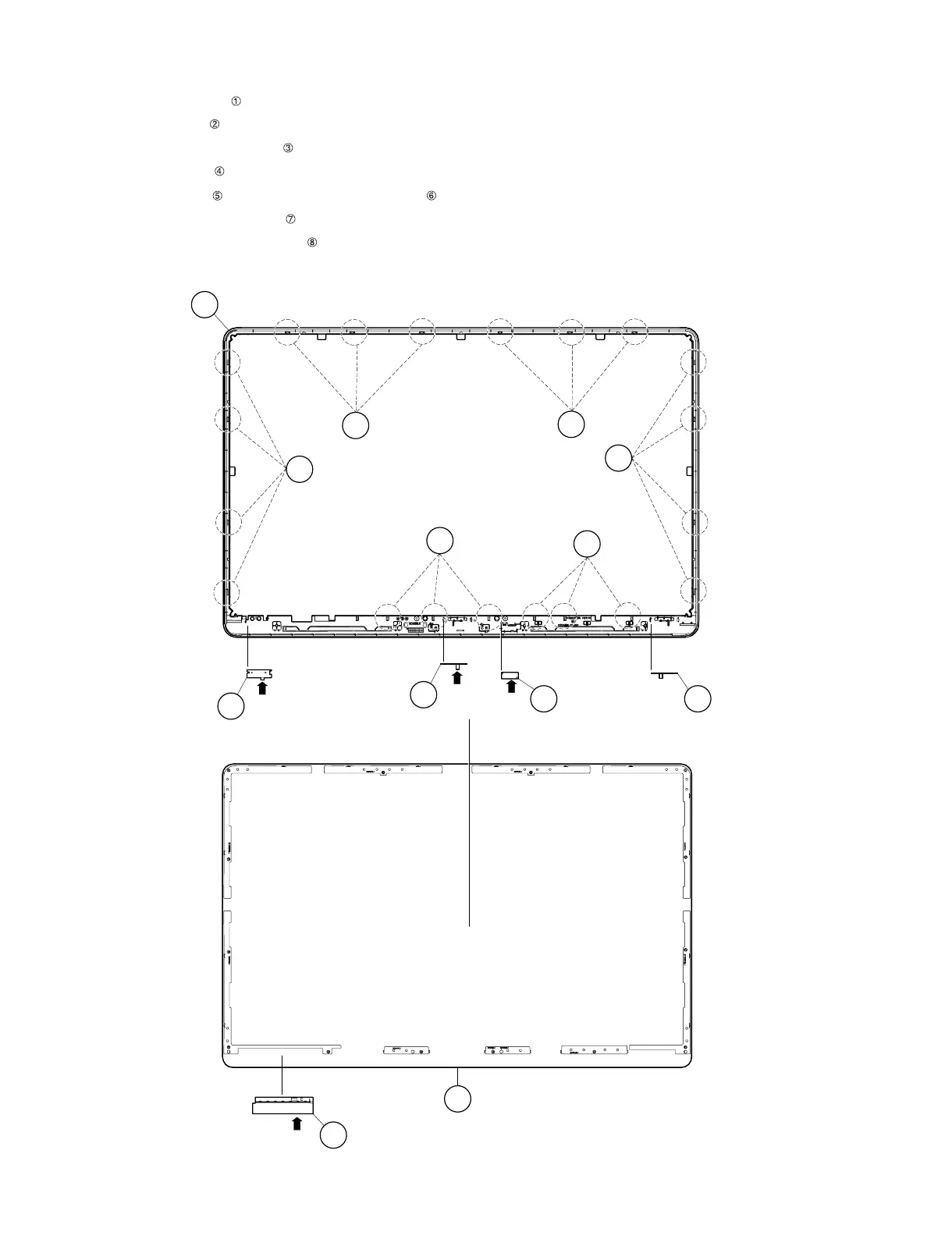

5. Removing of R/C, LED Unit, ICON Unit, IR TRANSMITTER Unit, LOGO Unit, Front Cabinet Ass’y, Glass Front
Panel Ass’y and TOUCH SENSOR KEY Unit.
1. Detach the R/C, LED Unit . (RA)
2. Detach the ICON Unit . (RI)
3. Detach the IR TRANSMITTER Unit . (IR)
4. Detach the LOGO Unit . (RL)
5. Remove the 20 Hooks and detach the Front Cabinet Ass’y .
6. Detach the Glass Front Panel Ass’y .
7. Detach the TOUCH SENSOR KEY Unit . (RK)
NOTE: The TOUCH SENSOR KEY Unit removed once is not reusable.
[RA]
[RI]
[RL]
[RK]
[IR]
R/C, LED Unit
ICON Unit
LOGO UnitIR TRANSMITTER
Unit
Front Cabinet Ass'y
1
2
34
5
5
5
5
5
5
6
7
Glass Front Panel Ass'y
8
TOUCH SENSOR KEY Unit
