iv) Peel the protective sheet of the OCA.
Lift the ITO section, then peel the protective sheet by about half by means of the pull tap.
v) Contact the FPCB and joint end of the transparent electrode film with the glass.
* Grasp the opposite end. Note that the ITO is positioned by adhering.
vi) Adhere the transparent electrode completely.

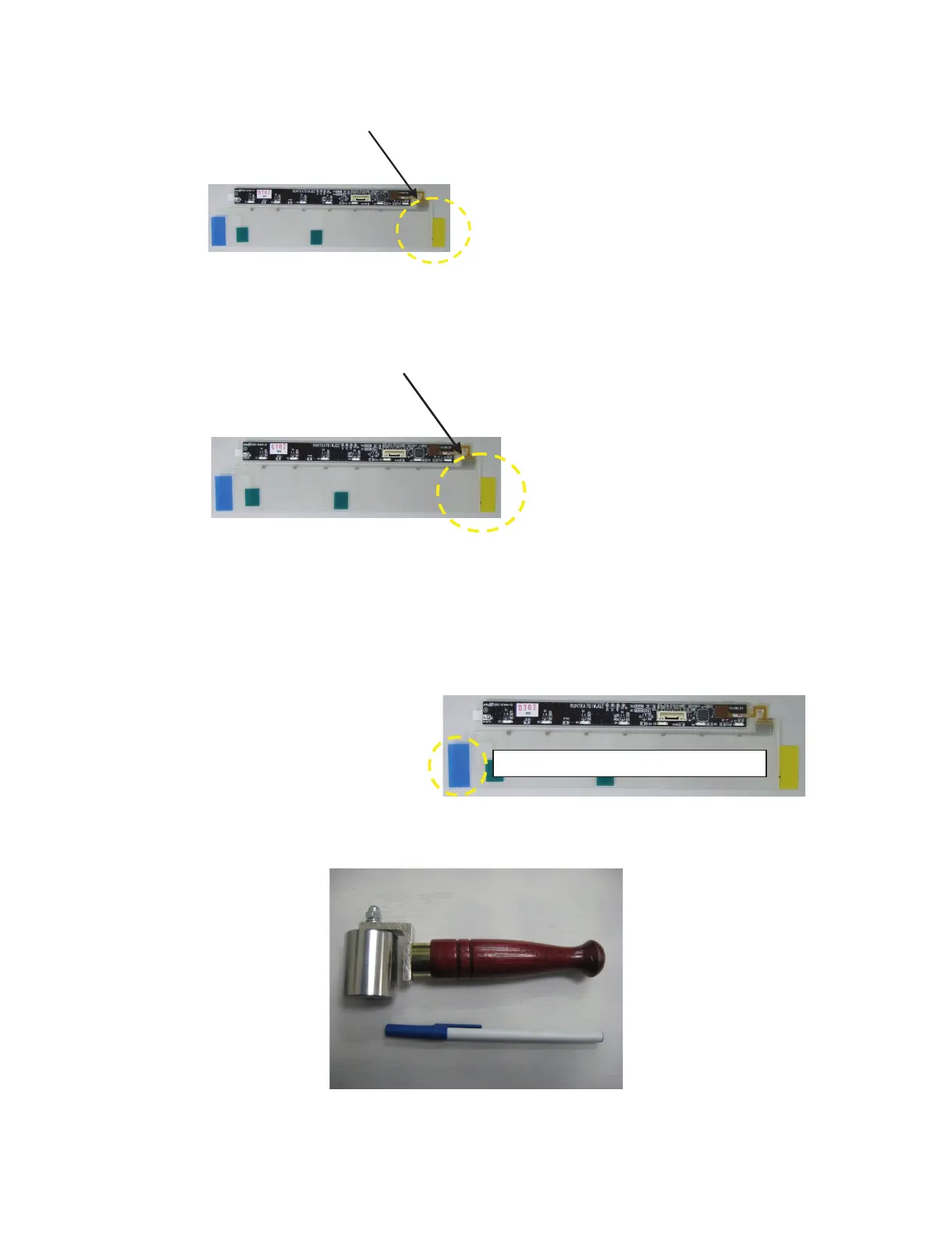

• Use a rubber roller since pressure exerted by it removes bubbles easily. See photo below.
• For the TOUCH SENSOR KEY Unit positioning figure, see page 5-1, 5-2.
* Peeling it completely reduces workability.
Check the order due to workability.
*Note: Do not bend the PWB (FPCB section)
and sheet (ITO section).
Pull tap for peeling the front protective sheet
Peel the front protective sheet.
If bubbles are found, press those portions with glass
cleaning cloth, etc. to remove them as much as possible.

Sharp LC-46LE925E Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	46 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	100 Hz
LED backlighting type	Edge-LED
Viewing angle, horizontal	176 °
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	-
HDMI ports quantity	4
DVI-D ports quantity	0
Common interface (CI)	No
USB 2.0 ports quantity	1
Common interface Plus (CI+)	Yes
Consumer Electronics Control (CEC)	Aquos Link
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.2 W
Power consumption (typical)	95.1 W
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T

Weight and Dimensions

Depth (with stand)	340 mm
Height (with stand)	785 mm
Weight (with stand)	45000 g
Depth (without stand)	39 mm
Width (without stand)	1127 mm
Height (without stand)	734 mm
