LC-46/60LE925E
6 – 16

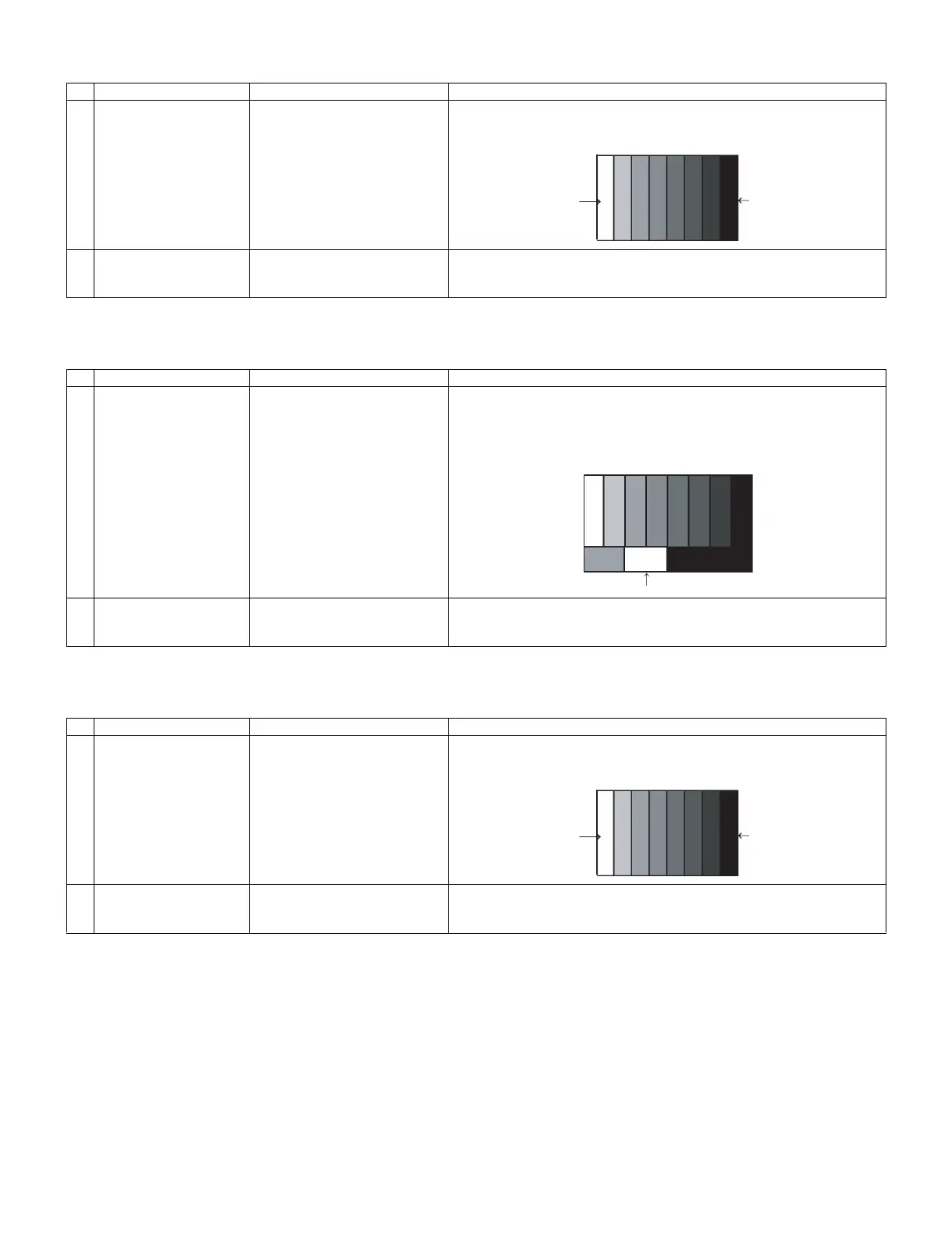

11.2. PAL signal adjustment
* ATTENTION: Please execute [3. TUNER adjustment] afterwards if you adjust [2. PAL signal adjustment] after all adjustments are completed.
11.3. TUNER adjustment
11.4. SECAM adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
PAL
Full field colour bar composite
signal
[Terminal]
EXT1 SCART IN
• Feed the PAL full field colour bar signal (75% colour saturation) to EXT1
SCART IN.
[VIDEO input signal]
2 Auto adjustment
performance
Adjustment process
[PAL ADJ]
page 4/23
Bring the cursor on [PAL ADJ] and press [OK].
[PAL ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
PAL split field colour Bar
RF signal UV
[Terminal]
TUNER
• Feed the PAL Split Field colour bar signal (E-12ch) to TUNER.
• Make sure the PAL colour bar pattern has the sync level of 7:3 with the
picture level.
Signal level: 55 dB µV ± 1dB (75Ω LOAD)
[E-12CH]
2 Auto adjustment
performance
Adjustment process
[TUNER ADJ]
page 3/23
Bring the cursor on [TUNER ADJ] and press [OK].
[TUNER ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
SECAM
Full field colour Bar Signal
[Terminal]
EXT1 SCART IN
• Feed the SECAM full field colour bar signal (75% colour saturation) to
EXT1 SCART IN.
[VIDEO input signal]
2 Auto adjustment
performance
Adjustment process
[SECAM ADJ]
page 4/23
Bring the cursor on [SECAM ADJ] and press [OK].
[SECAM ADJ OK] appears when finished.
100% white Black
100% white
100% white Black

Sharp LC-46LE925E Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	46 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	100 Hz
LED backlighting type	Edge-LED
Viewing angle, horizontal	176 °
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	-
HDMI ports quantity	4
DVI-D ports quantity	0
Common interface (CI)	No
USB 2.0 ports quantity	1
Common interface Plus (CI+)	Yes
Consumer Electronics Control (CEC)	Aquos Link
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.2 W
Power consumption (typical)	95.1 W
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T

Weight and Dimensions

Depth (with stand)	340 mm
Height (with stand)	785 mm
Weight (with stand)	45000 g
Depth (without stand)	39 mm
Width (without stand)	1127 mm
Height (without stand)	734 mm
