2. Removing of Speaker Unit (L/R), KEY Unit and Bottom Cover Ass'y.

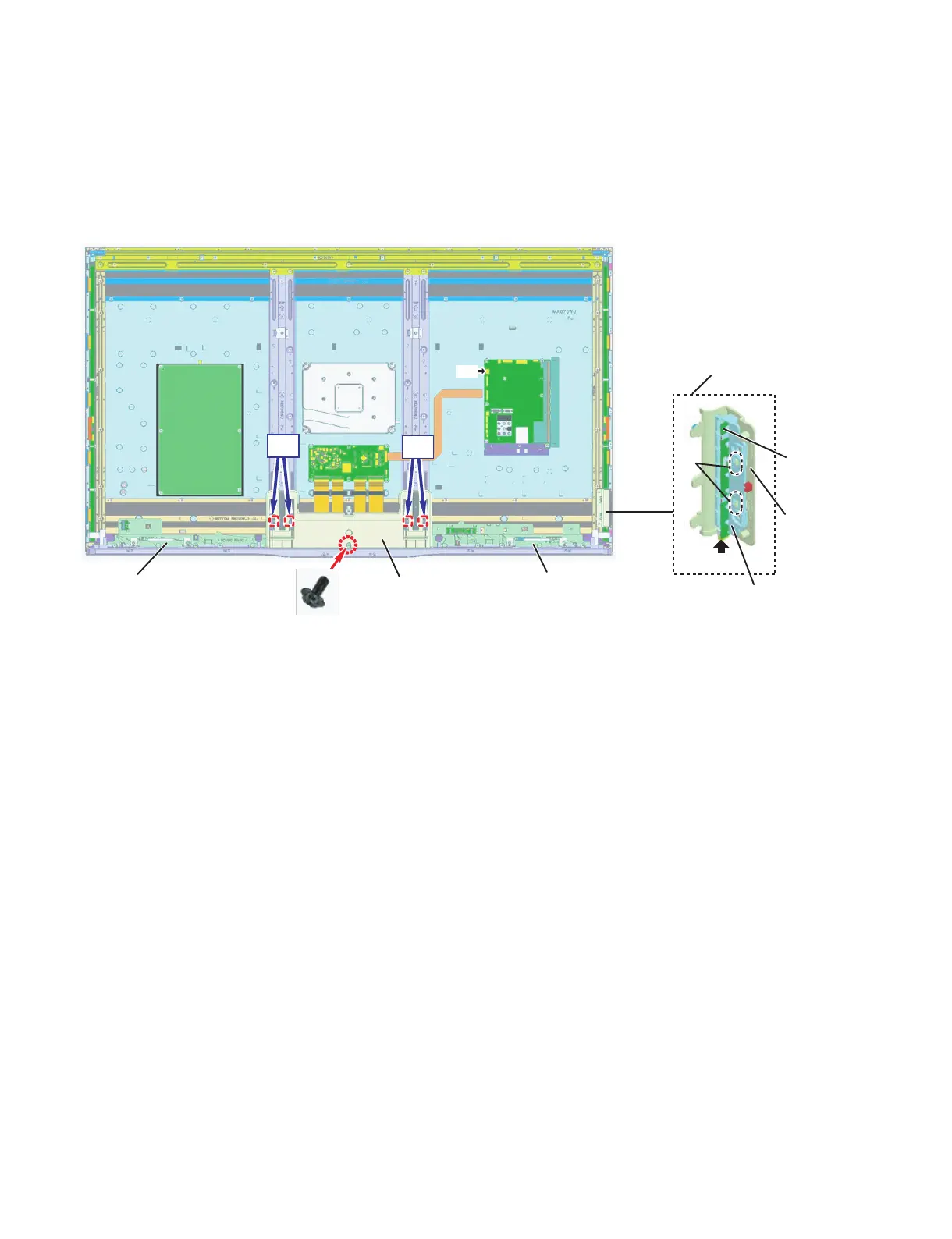

1. Remove the 1 lock screw (1) and the 4 Hooks and detach the Bottom Cover Ass'y (2).
2. Detach the KEY Unit Ass'y (3).
3. Remove the 2 Hooks and detach the KEY Button (4) from the KEY Button Cover (5).
4. Remove the KM Wire.
5. Remove the KEY Unit (6) from the KEY Button (4).
6. Detach the Speaker Unit (L) (8), Speaker Unit (R) (9).
7. Disconnect the SP1 Wire.
Hook Hook
Ԙ
ԙBottom Cover Ass'y
ԟ
Speaker Unit (L)
Ԡ
Speaker Unit (R)
Ԛ-';7PKV#UU[
ԛ-';$WVVQP
Ԝ-';$WVVQP
˴%QXGT
㨇-/?
ԝ-';7PKV
SP1
*QQM
To Next Page
