Sharp LC-60LE822E User Manual

LC-60LE822E/LC-60LE822ERU
6 – 16
11.5. ADC adjustment (Component 15K)
11.6. ADC adjustment (Component 33K)
11.7. PC signal adjustment (ANALOG RPG)
11.8. RGB (SCART) adjustment (RGB 15K)

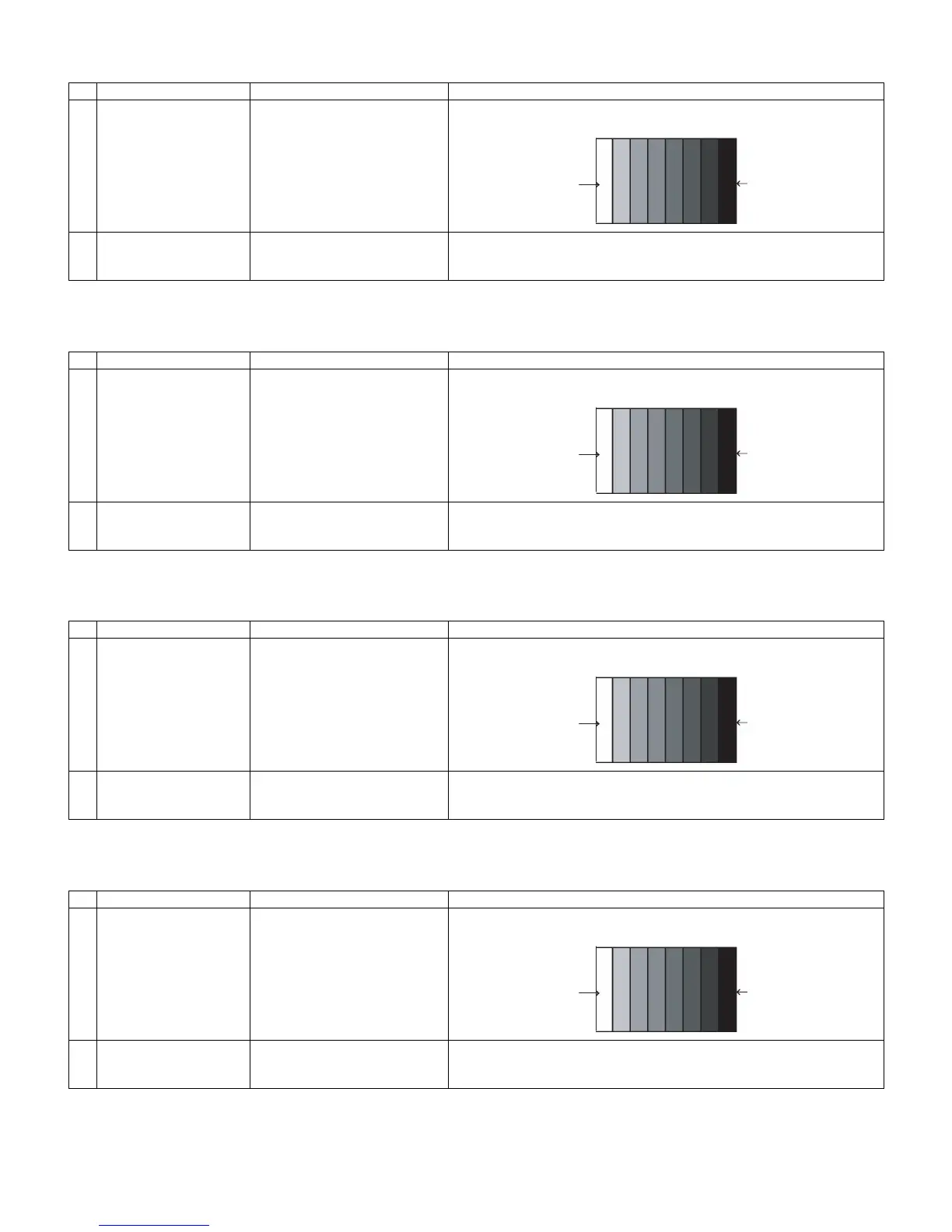

Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
COMP15K, 50Hz
100% Full field colour bar Signal
[Terminal]
EXT3 COMPONENT IN
• Feed the COMPONENT 15K 100% full field colour bar signal (100%
colour saturation) to EXT3 COMPONENT IN.
2 Auto adjustment
performance
Adjustment process
[COMP15k ALL ADJ]
page 6/21
Bring the cursor on [COMP15k ALL ADJ] and press [OK] [COMP15k ALL
ADJ] [OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
COMP33K, 50Hz
100% Full field colour bar Signal
[Terminal]
EXT3 COMPONENT IN
• Feed the COMPONENT 33K 100% full field colour bar signal (100%
colour saturation) to EXT3 COMPONENT IN.
2 Auto adjustment
performance
Adjustment process
[HDTV ADJ]
page 7/21
Bring the cursor on [HDTV ADJ] and press [OK].
[HDTV ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
XGA, 60Hz
100% Full Field Colour Bar Signal
[Terminal]
EXT3 PC IN
• Feed the XGA 60Hz 100% full field colour bar signal (100% colour satura-
tion) to EXT3 PC IN.
2 Auto adjustment
performance
Adjustment process
[ANALOG PC ADJ] menu
page 8/21
Bring the cursor on [ANALOG PC ADJ] and press [OK].
[ANALOG PC ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
RGB 15K, 50Hz
100% Full field colour bar signal
[Terminal]
EXT1 SCART RGB IN
• Feed the RGB 15k 50Hz 100% full field colour bar signal (100% colour
saturation) to EXT1 SCART IN.
2 Auto adjustment
performance
Adjustment process
[SCART RGB ADJ] menu
page 9/21
Bring the cursor on [SCART RGB ADJ] and press [OK].
[SCART RGB ADJ OK] appears when finished.
100% white Black
100% white Black
100% white Black
100% white Black

Sharp LC-60LE822E Specifications

General

Power supply type	AC
Power consumption (standby)	0.20 W
Power consumption (typical)	100 W
Child lock	No
Plug and Play	Yes
Audio formats supported	AAC
Video formats supported	H.264, MPEG4
Display diagonal	60 \
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Viewing angle, horizontal	176 °
Internal memory	8000 MB
Audio (L/R) in	0
HDMI ports quantity	4
SCART ports quantity	1
Product color	Black
LED indicators	Stand-by
Panel mounting interface	400 x 400 mm
Remote control type	GA841WJSA
RMS rated power	20 W
Number of speakers	2
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM

Weight and Dimensions

Depth (with stand)	368 mm
Width (with stand)	1439 mm
Height (with stand)	975 mm
Weight (with stand)	51000 g
Depth (without stand)	40 mm
Height (without stand)	913 mm
