[3] How to replace the Touch Sensor key PWB
1. Replace the touch sensor key PWB in a clean room.
Be sure to remove the dust from the unit before carrying it into the clean room.
2. Remove the touch sensor key PWB from the front glass.
3. Clean the bonding surface with alcohol.
Depending on the dirt, water solution of 80%vol can be effective.

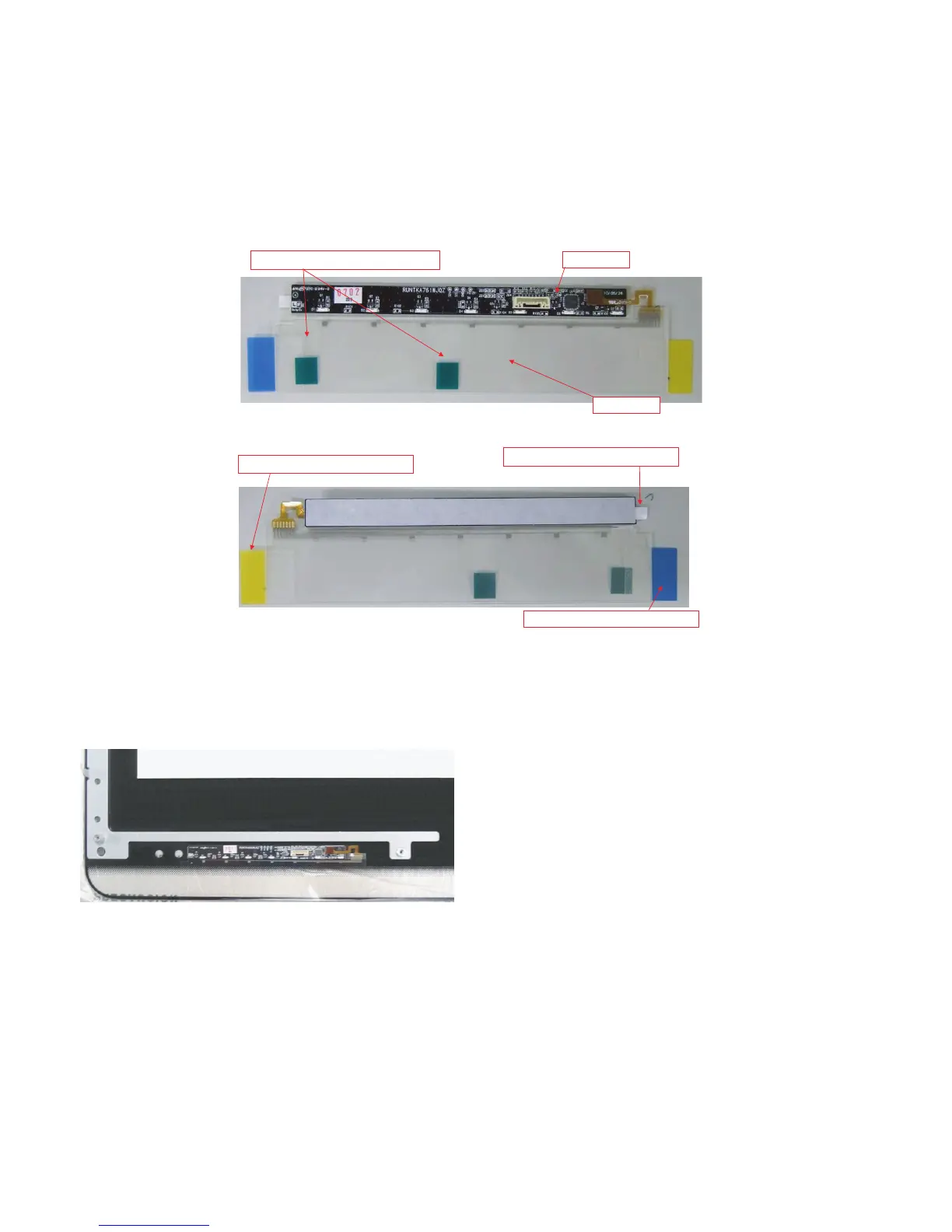

4. Product Manual Touch Sensor Key with ITO (Transparent Electrode)
i) Remove the touch sensor key from the front glass.
FPCB
FPCB/ITO connecting tape
ITO
Pull tap of double-sided tape
Pull tap of double-sided tape
Pull tap of protective sheet
* When peeling the ITO section, check that there is no glue
residue on the front glass.
If glue residue, dirt, fingerprints, etc. are found, wipe them
off with anhydrous alcohol.
Do not apply anhydrous alcohol to the double-sided tape
on the metal part attaching to the glass.

Sharp LC-60LE822E Specifications

General

Power supply type	AC
Power consumption (standby)	0.20 W
Power consumption (typical)	100 W
Child lock	No
Plug and Play	Yes
Audio formats supported	AAC
Video formats supported	H.264, MPEG4
Display diagonal	60 \
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Viewing angle, horizontal	176 °
Internal memory	8000 MB
Audio (L/R) in	0
HDMI ports quantity	4
SCART ports quantity	1
Product color	Black
LED indicators	Stand-by
Panel mounting interface	400 x 400 mm
Remote control type	GA841WJSA
RMS rated power	20 W
Number of speakers	2
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM

Weight and Dimensions

Depth (with stand)	368 mm
Width (with stand)	1439 mm
Height (with stand)	975 mm
Weight (with stand)	51000 g
Depth (without stand)	40 mm
Height (without stand)	913 mm
