CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

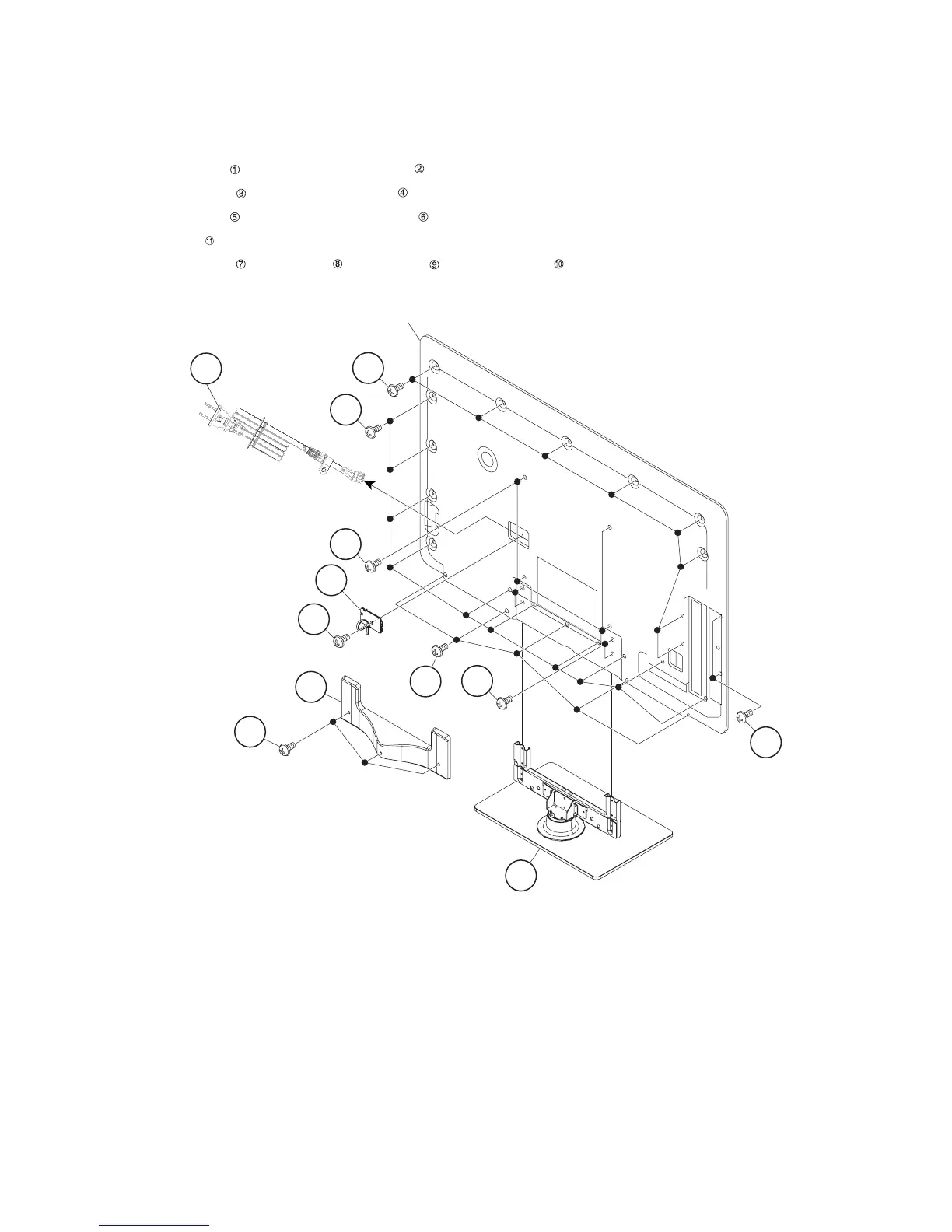

1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 3 lock screw and detach the Support Cover .
2. Remove the 4 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC Cord .
5. Remove the 4 lock screws , 5 lock screws , 2 lock screws and 18 lock screws and detach the Rear Cabinet Ass’y.
AC Cord
11
Rear Cabinet Ass'y
4Stand Unit
2
1
Support Cover
6AC Cord Cover
10
10
7
3
5
9
8
