Sharp LC-60LE822E User Manual

LC-60LE822E/LC-60LE822ERU
2 – 1
LC-60LE822E
Service Manual
CHAPTER 2. OPERATION MANUAL

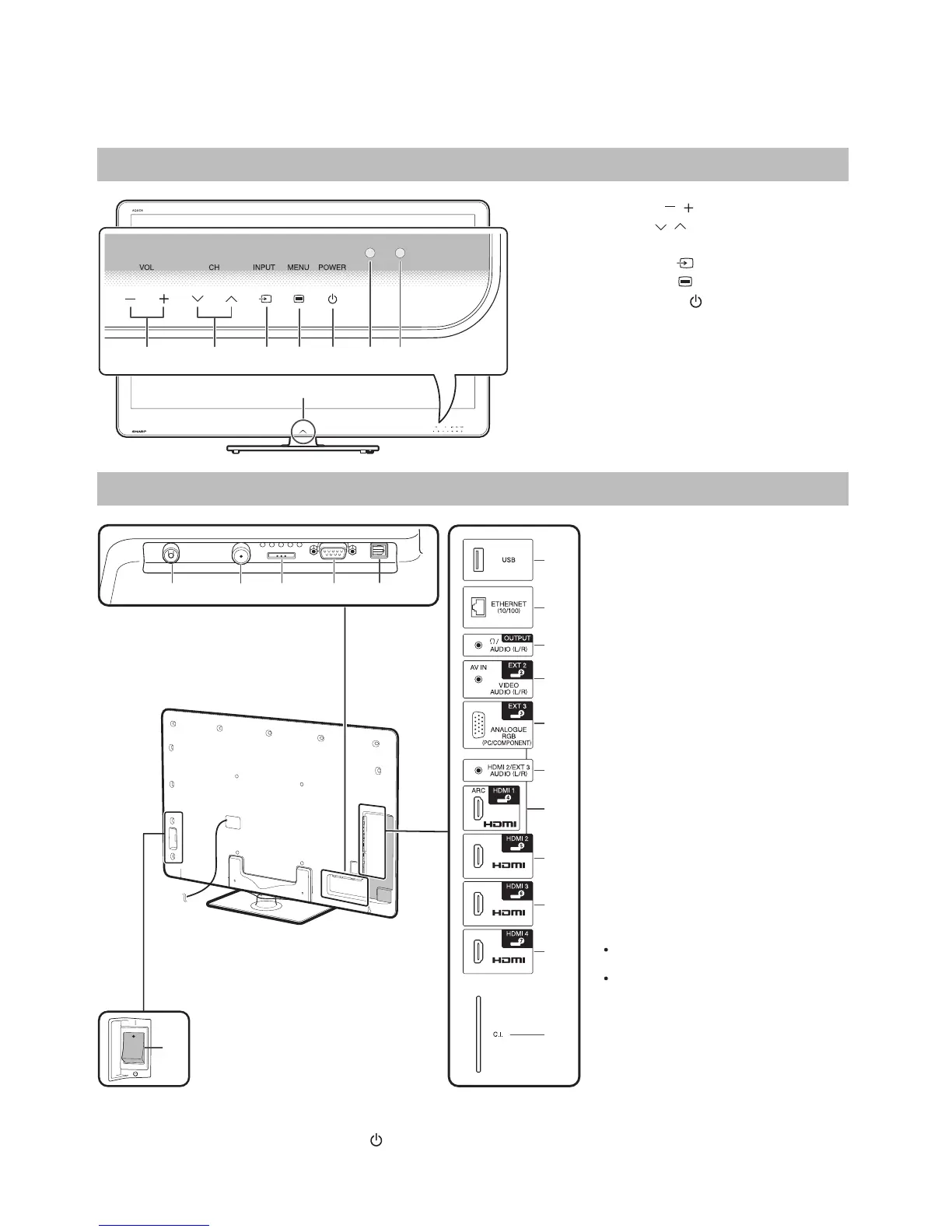

[1] Parts Name
TV (front view)
1 3 45
8
672
VOL / (Volume buttons)
CH / (Programme [channel]
buttons)
INPUT (Input source button)
MENU (Menu button)
POWER (Power button)
OPC sensor
Remote control sensor
Illumination LED
1
2
3
4
5
6
7
8
TV (rear view)
17
*2
11
*1
7
6
8
9
10
12
13
14
15
16
1
2
3 4 5
Antenna terminal
Satellite antenna terminal
EXT 1 (RGB) terminal
RS-232C terminal
DIGITAL AUDIO OUTPUT
terminal
USB terminal
ETHERNET (10/100) terminal
OUTPUT (Headphones/AUDIO
(L/R)) terminal
EXT 2 (AV IN/VIDEO/AUDIO (L/R))
terminal
EXT 3 (ANALOGUE RGB (PC/
COMPONENT)) terminal
HDMI 2/EXT 3 AUDIO (L/R) jack
HDMI 1 (HDMI/ARC) terminal
HDMI 2 (HDMI) terminal
HDMI 3 (HDMI) terminal
HDMI 4 (HDMI) terminal
C.I. (COMMON INTERFACE) slot
MAIN POWER switch
WARNING
Excessive sound pressure from earphones
and headphones can cause hearing loss.
Do not set the volume at a high level.
Hearing experts advise against extended
listening at high volume levels.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
The HDMI 2 and EXT 3 terminals can both use the same audio input terminal (HDMI 2/EXT 3 AUDIO (L/R)). However, the proper item
must be selected in the "Audio select" menu.
When the MAIN POWER switch is turned off ( ), the amount of electric power consumed will be reduced to 0.01 W or less. However,
unlike when unplugging the AC cord, the power is not completely disconnected.
*1
*2

Sharp LC-60LE822E Specifications

General

Power supply type	AC
Power consumption (standby)	0.20 W
Power consumption (typical)	100 W
Child lock	No
Plug and Play	Yes
Audio formats supported	AAC
Video formats supported	H.264, MPEG4
Display diagonal	60 \
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Viewing angle, horizontal	176 °
Internal memory	8000 MB
Audio (L/R) in	0
HDMI ports quantity	4
SCART ports quantity	1
Product color	Black
LED indicators	Stand-by
Panel mounting interface	400 x 400 mm
Remote control type	GA841WJSA
RMS rated power	20 W
Number of speakers	2
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM

Weight and Dimensions

Depth (with stand)	368 mm
Width (with stand)	1439 mm
Height (with stand)	975 mm
Weight (with stand)	51000 g
Depth (without stand)	40 mm
Height (without stand)	913 mm
