– 15 –
MD-C2

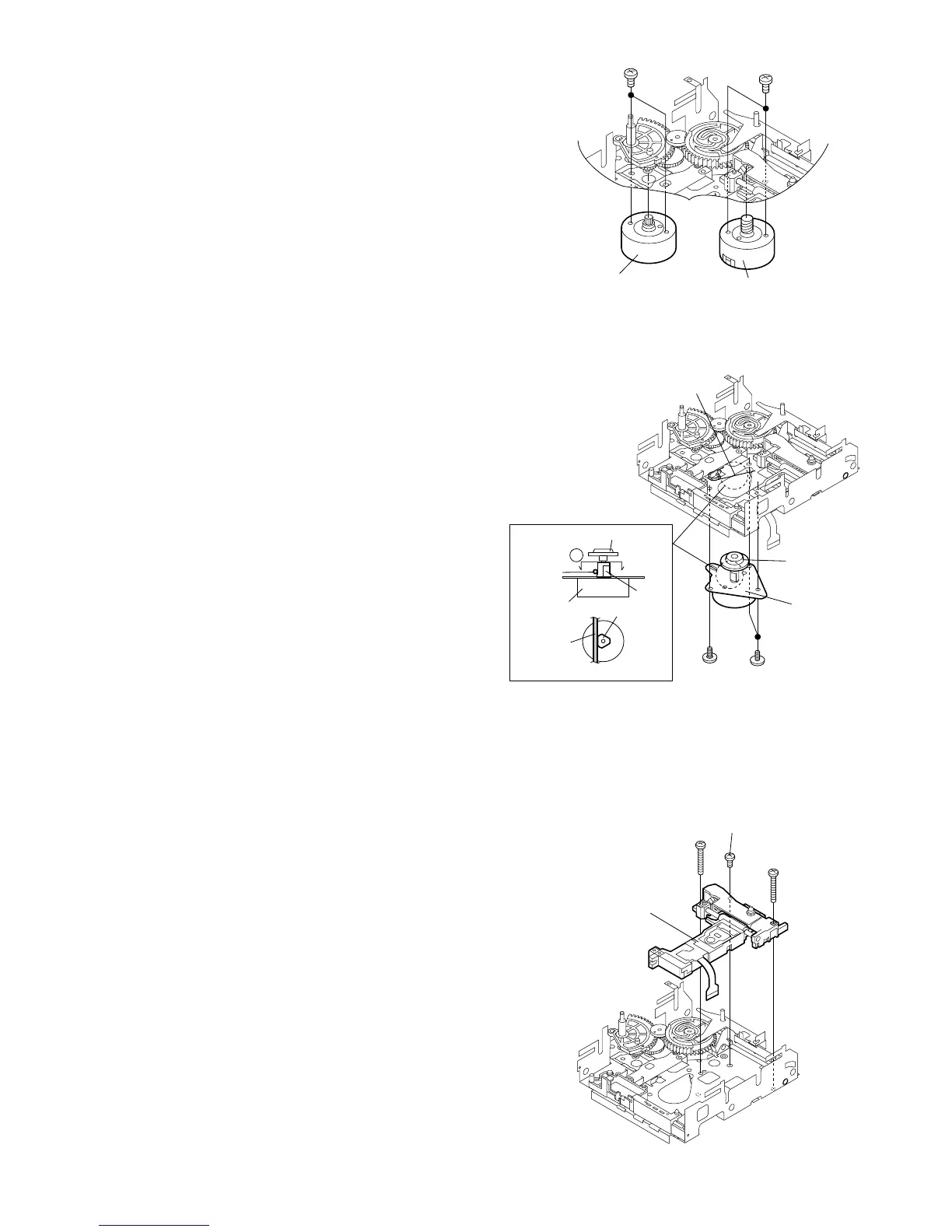

Figure 15-2
Figure 15-3
How to remove the spindle motor
(See Fig. 15-2)
1. Remove the screws (E1) x 3 pcs., and remove the spindle
motor.
Caution:
Be careful so that the turntable is not damaged.
To reinstall the spindle motor, the position of the spring
should be as shown in the drawing.
How to remove the optical pickup
(See Fig. 15-3)
1. Remove the screws (F1) x 3 pcs.
Caution:
Be careful so that the gear is not damaged.
(The damaged gear emits noise during searching.)
How to remove the sled motor/loading motor
(See Fig. 15-1)
1. Remove the screws (D1) x 4 pcs., and remove the sled
motor/loading motor.
Caution:
Be careful so that the gear is not damaged.
(The damaged gear emits noise during searching.)
Figure 15-1
(D1) x2
ø1.7 x2mm
(D1) x2
ø1.7 x2mm
Sled Motor
Loading Motor
(E1) x2
(E1) x1
ø1.7 x2.1mm
Spring
Spring
Metal
Metal
Spring
Turn Table
Turn Table
Spindle Motor
Spindle Motor
Screw,Special
A
View from A
(F1) x1
ø1.7 x9.5mm
Optical Pickup
(F1) x1
ø1.7 x9.5mm
(F1) x1
ø1.7 x3mm
