CONNECTORS

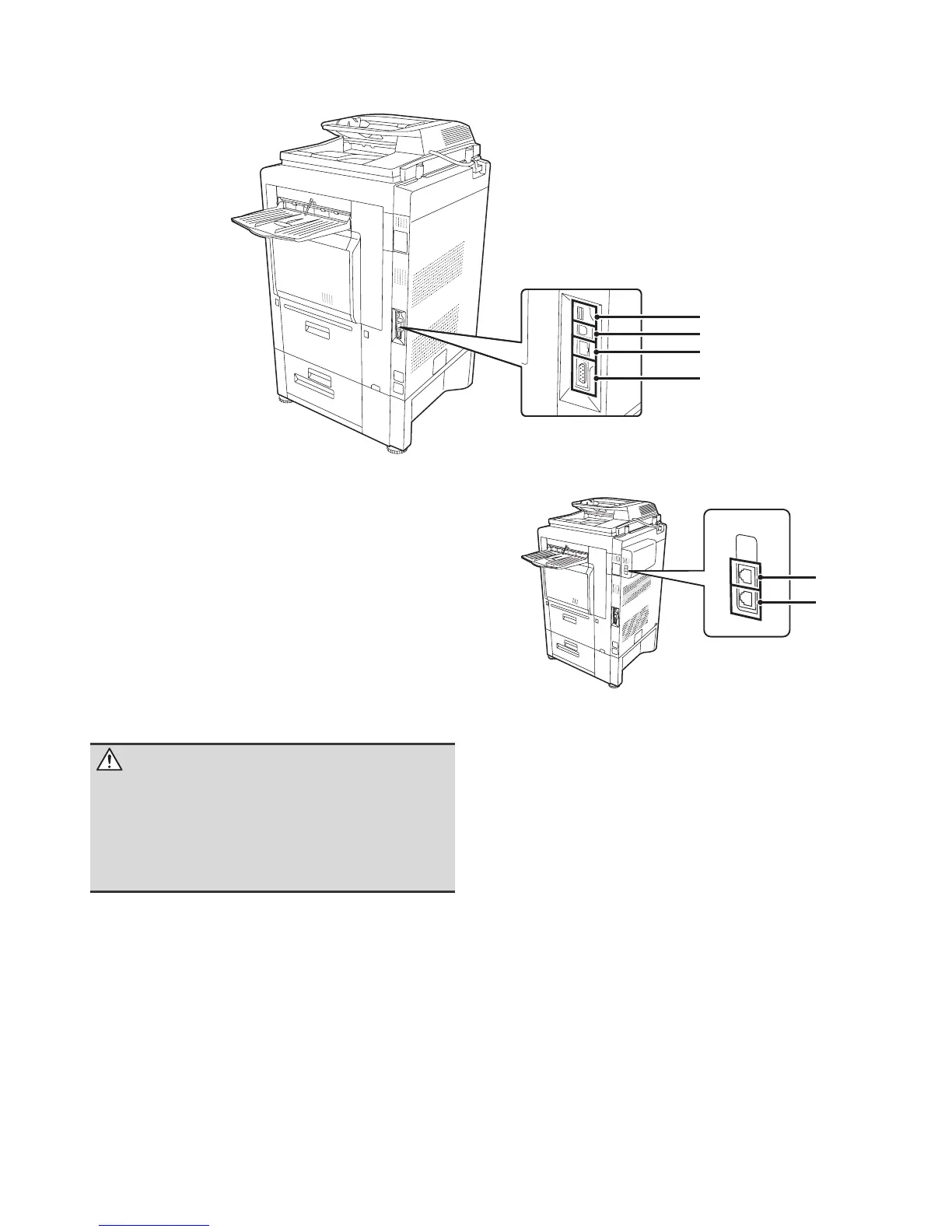

(1) USB connecter (A type)
This is used to connect a USB hub or USB memory
device to the machine.
For the USB cable, use a shielded type cable.
(2) USB connecter (B type )
A computer can be connected to this connector to use
the machine as a printer.
For the USB cable, use a shielded type cable.
(3) LAN connecter
Connect the LAN cable to this connector when the
machine is used on a network.
For the LAN cable, use a shielded type cable.
(4) Service-only connector
(5) Extension phone socket
When the fax function of the machine is used, an
extension phone can be connected to this socket.
(6) Telephone line socket
When the fax function of the machine is used, the
telephone line is connected to this socket.
When the fax expansion kit is installed
(1)
(2)
(3)
(4)
Caution
Connecting a cable to this connector may cause the
machine to malfunction.
Important note for service technicians:
The cable connected to the service connector must be
less than 3 m (118") in length.
(5)
(6)
