This chapter explains how to place originals in the automatic document feeder and on the document glass.
PLACING THE ORIGINAL
PLACING ORIGINALS IN THE AUTOMATIC DOCUMENT
FEEDER
This section explains how to place originals in the automatic document feeder.
Allowed original sizes
When a non-standard size original is placed in copy mode, see "SPECIFYING THE ORIGINAL SIZE" in the Copier
Guide.
When a non-standard size original is placed for a fax or scanner transmission, see "SPECIFYING THE SCAN SIZE OF
THE ORIGINAL" in the Facsimile Guide or Scanner Guide.
Allowed original weights
To scan originals from 35 g/m
2
to 49 g/m
2
(9 Ibs. to 14 Ibs.), use "Slow Scan Mode" in the special modes. Scanning
without using "Slow Scan Mode" may result in original misfeeds.
When "Slow Scan Mode" is selected, automatic two-sided scanning is not possible.
3
ORIGINALS
Minimum original size Maximum original size
Standard sizes
(minimum size that can be automatically detected)
A5: 210 mm (width) x 148 mm (length)
8-1/2" (width) x 5-1/2" (length)
Non-standard sizes
(minimum size that can be specified manually)
131 mm (width) x 140 mm (length)
5-1/8" (width) x 5-1/2" (length)
Standard sizes
(maximum size that can be automatically detected)
A3: 297 mm (width) x 420 mm (length)
11" (width) x 17" (length)
A3W (12" x 18" size paper) cannot be used.
Non-standard sizes
(maximum size that can be specified manually)
Copy mode: 297 mm (width) x 432 mm (length)
In image send mode, up to 297 mm (width) x 800 mm (length)
(11"(width) x 13-1/2" (length)) is possible.
MX-3501N/4501N 1-sided copying: 35 g/m
2
to 128 g/m
2
(9 Ibs. to 34 Ibs.)
2-sided copying: 50 g/m
2
to 128 g/m
2
(15 Ibs. to 34 Ibs.)
Models other than the above 1-sided copying: 35 g/m
2
to 128 g/m
2
(9 Ibs. to 34 Ibs.)
2-sided copying: 50 g/m
2
to 105 g/m
2
(15 Ibs. to 28 Ibs.)
1

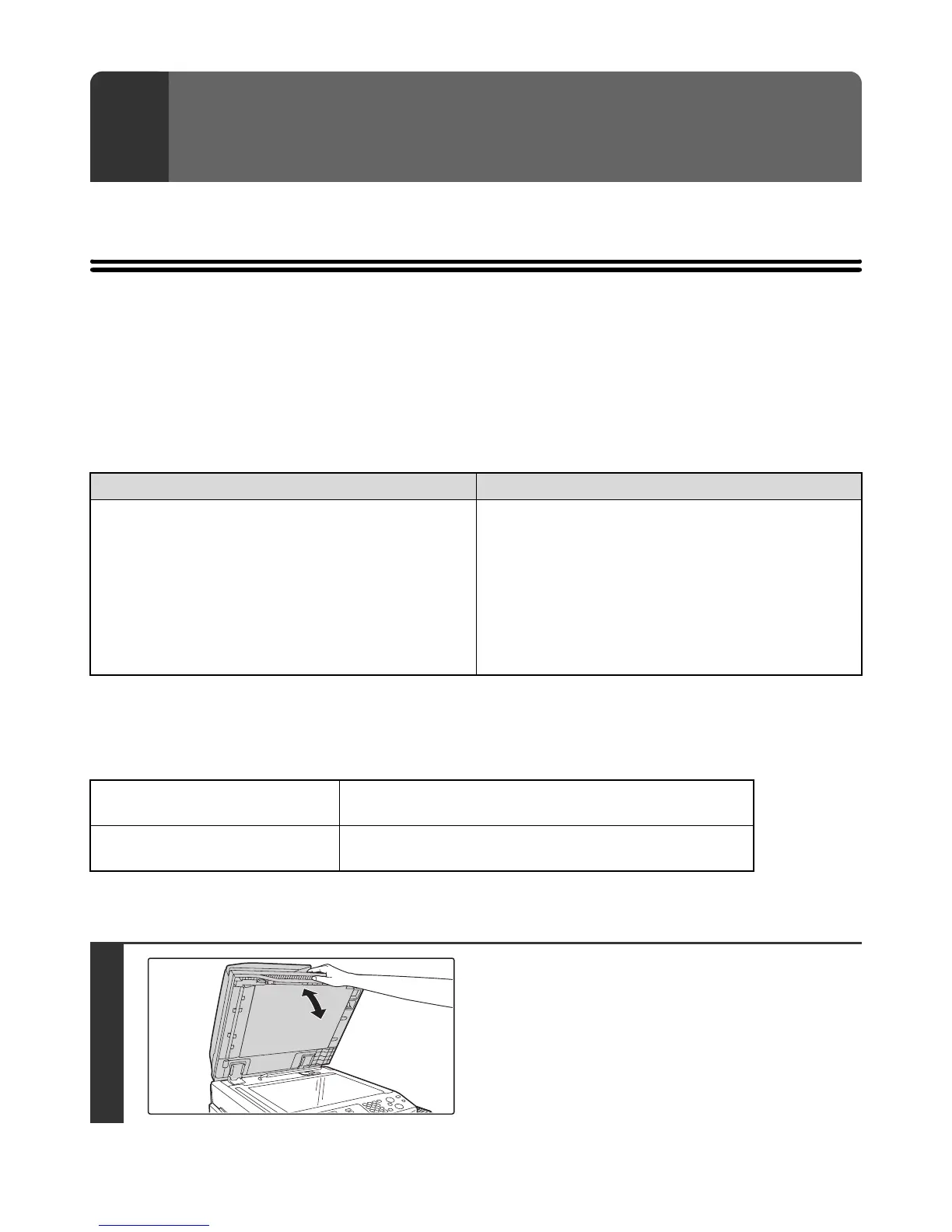

Make sure an original does not remain
on the document glass.
Open the automatic document feeder, make sure that an
original is not on the document glass, and then gently close the
automatic document feeder.
To Next Page
