MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 2

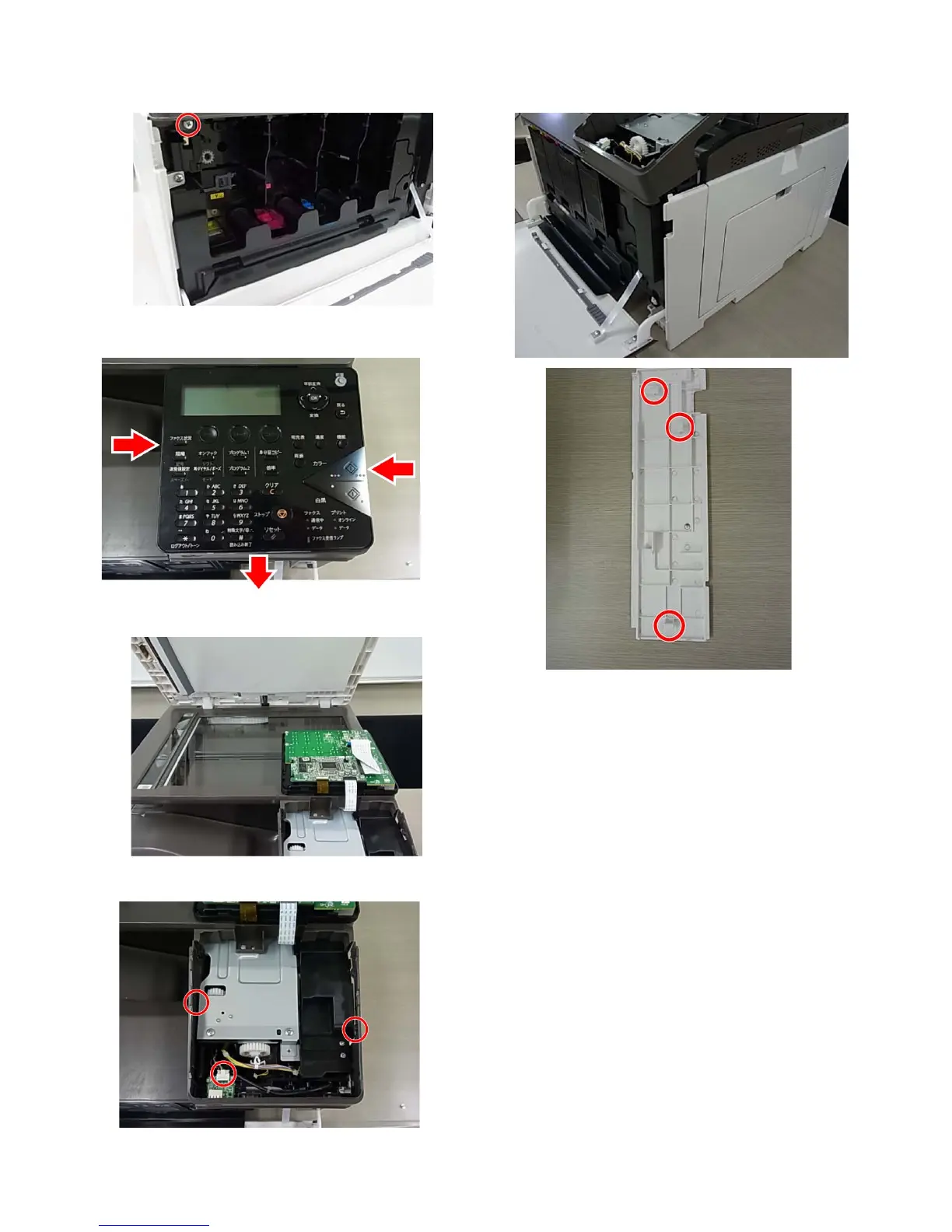

(2) Paper exit tray
1) Open the front cover.
2) Remove screws and remove the paper exit tray.
(3) Operation base plate NE
1) Press pawls and pull the Operation base plate NE toward you.
2) Open the RSPF unit and place the operation panel shown in
the figure.
3) Disconnect the harness of the USB I/F PWB and remove the
operation base plate NE.
(4) Right cabinet front NE
1) Remove remove the Operation plate NE.
2) Remove pawls and remove the Right cabinet front NE.
