MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 3

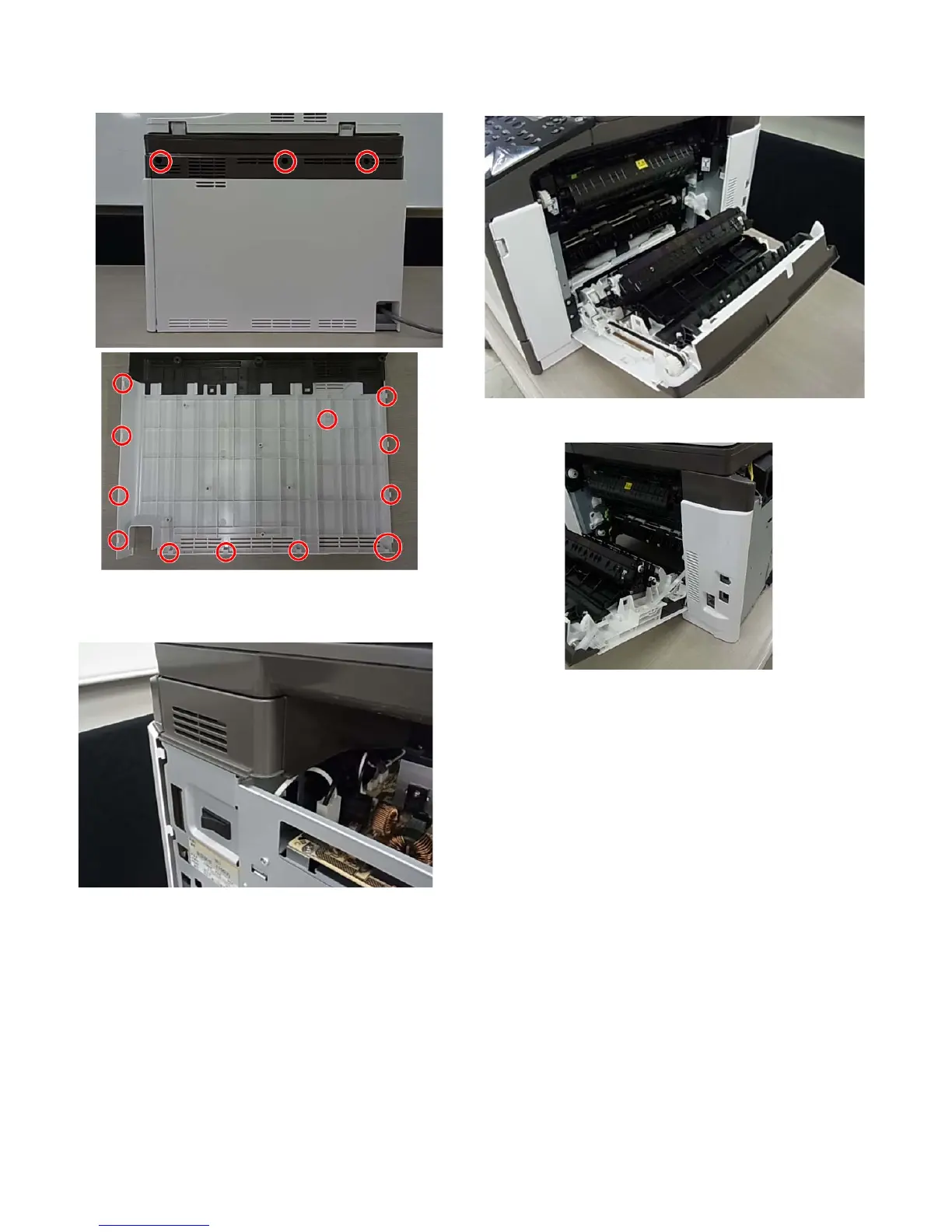

(5)Rear cabinet upper NE, Rear cabinet NE
1) Remove screws and pawls. Then, remove the Rear cabinet
upper NE and the Rear cabinet NE.
(6) Paper exit tray rear connection cabinet
1) Remove the Paper exit tray left cabinet NE.
2) Remove the rear connection cabinet.
(7)Right cabinet rear NE, Upper cabinet right NE
1) Remove the Rear cabinet uooer NE and the Rear cabinet NE.
2) Open the right door.
3) Remove the Right cabinet rear NE and the Upper cabinet right
NE.
