MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 12

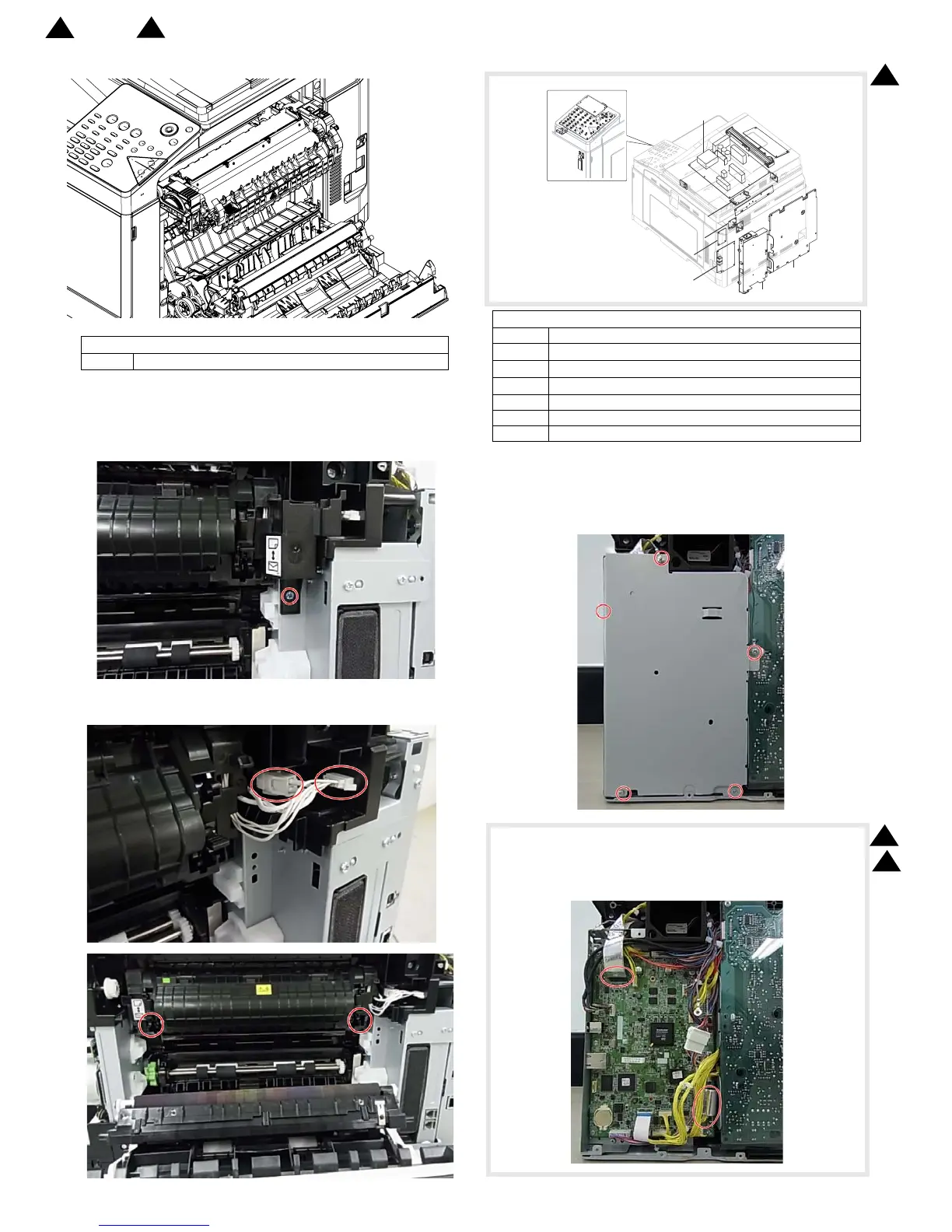

M. Fusing unit
1) Open the right door unit.
2) Remove the right cabinet rear NE and the upper cabinet right
NE.
3) Remove the harness cover.
4) Remove the screws and the harness. Then, remove the fusing
unit.
N. PWB
(1) MFPC PWB
1) Remove the right cabinet rear NE
2) Remove the rear cabinet rear NE
3) Remove the MFPC cover.
4) Remove the FFCs from MFPC unit by referring the following
procedures.
* It is necessary to remove the FFC by releasing the lock of the
FFC connector.
Parts
1 Fusing unit
Parts
1MFPC PWB
2
HV PWB
3
AC DC PWB
4
AFE PWB
5 FAX PWB
6 RINGER PWB
7 FAN IF PWB
4
2
1
3
7
6
5
1
1 ‘13 /Aug
2
‘13
/Oct
2
2
