MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 19

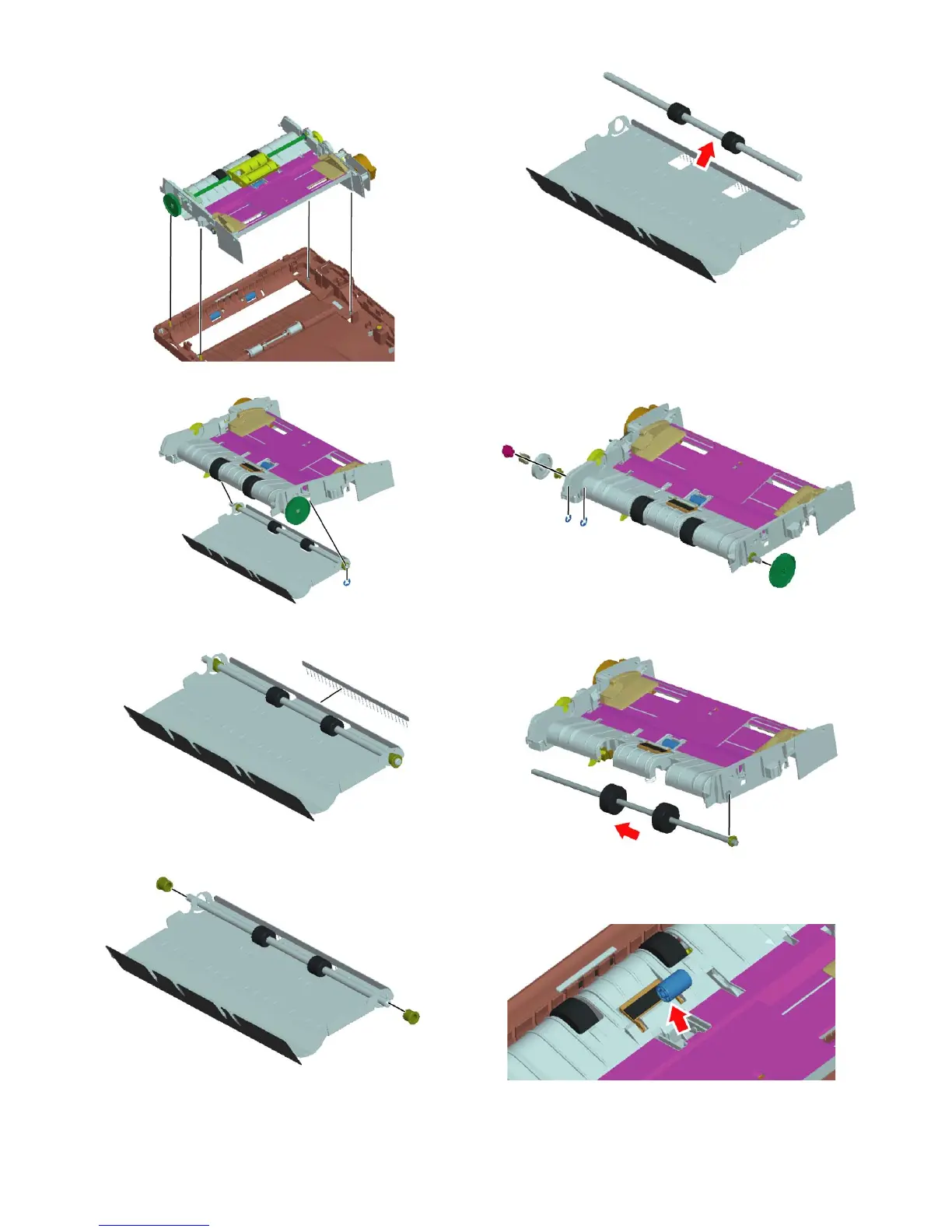

(2)Discharge brush, Paper exit roller
1) Remove the paper feed shaft unit.
2) Remove the transportation unit.
3) Remove the E-ring and the paper exit roller unit.
4) Remove the discharge brush.
5) Remove the couplings.
6) Remove the paper exit roller.
(3) Transport roller
1) Remove the paper feed shaft unit.
2) Remove the transportation unit.
3) Remove the E-rings, the pulley, the coupling and the bearing.
4) Remove the transport roller unit, and remove the transport
roller.
(4) Transport auxiliary roller
1) Remove the paper feed shaft unit.
2) Remove the transport auxiliary roller
