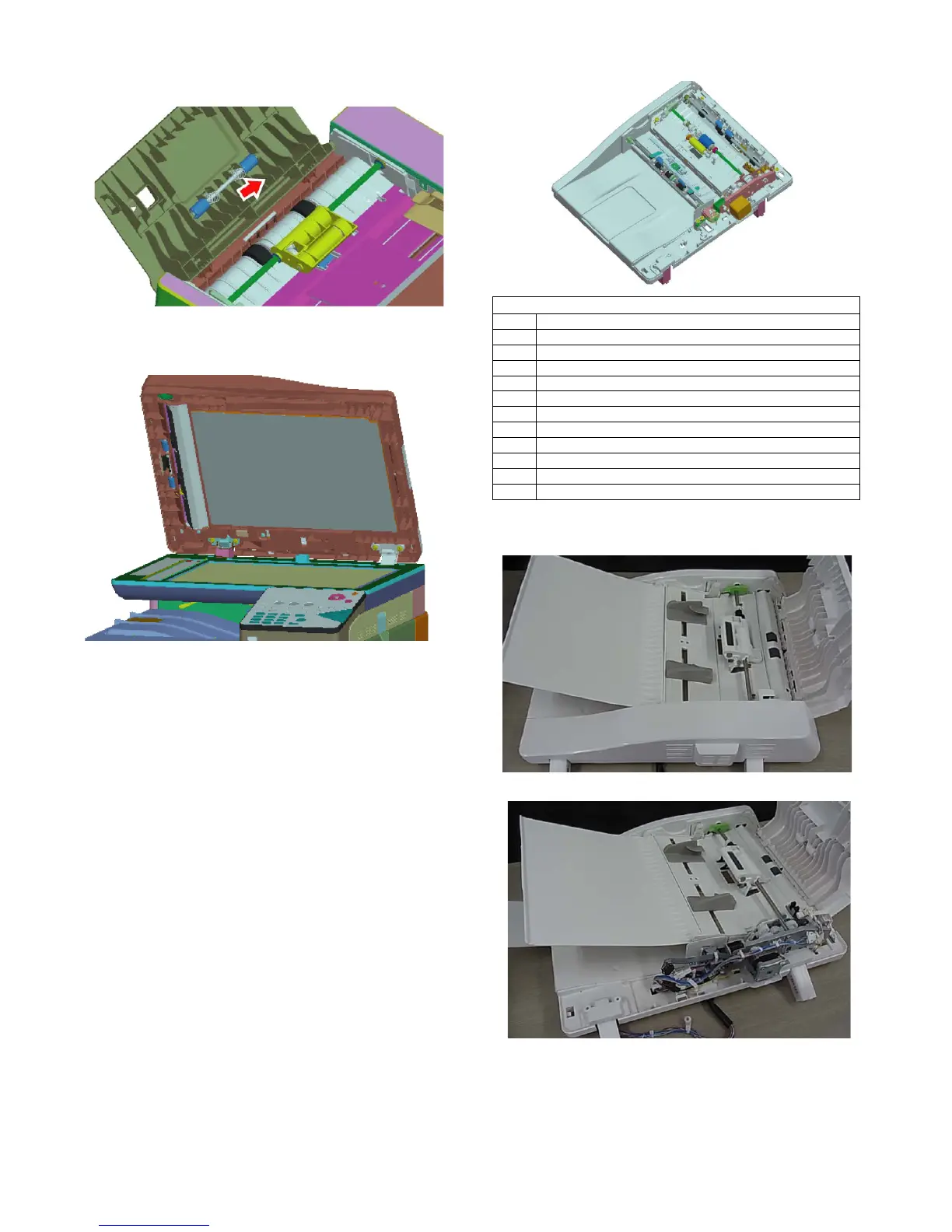

MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 20
(5)Transport auxiliary roller (Upper door cabinet)
1) Remove the rear cabinet of the SPF unit.
(6) OC mat
1) Open the SPF unit and clean the OC mat.
C.RSPF unit
(1) Pick up roller, Paper feed roller
1) Open the upper door cabinet R and the paper tray R NE.
2) Remove the Rear cabinet R.
Parts
1 Pick up roller
2 Paper feed roller
3 Upper transport roller
4 Lower transport roller
5 PS roller
6 Transport auxiliary roller
7 BC auxiliary roller
8 Transport auxiliary roller
9 Paper exit roller
10 BC paper exit roller
11 Discharge brush
12 OC mat
To Next Page
