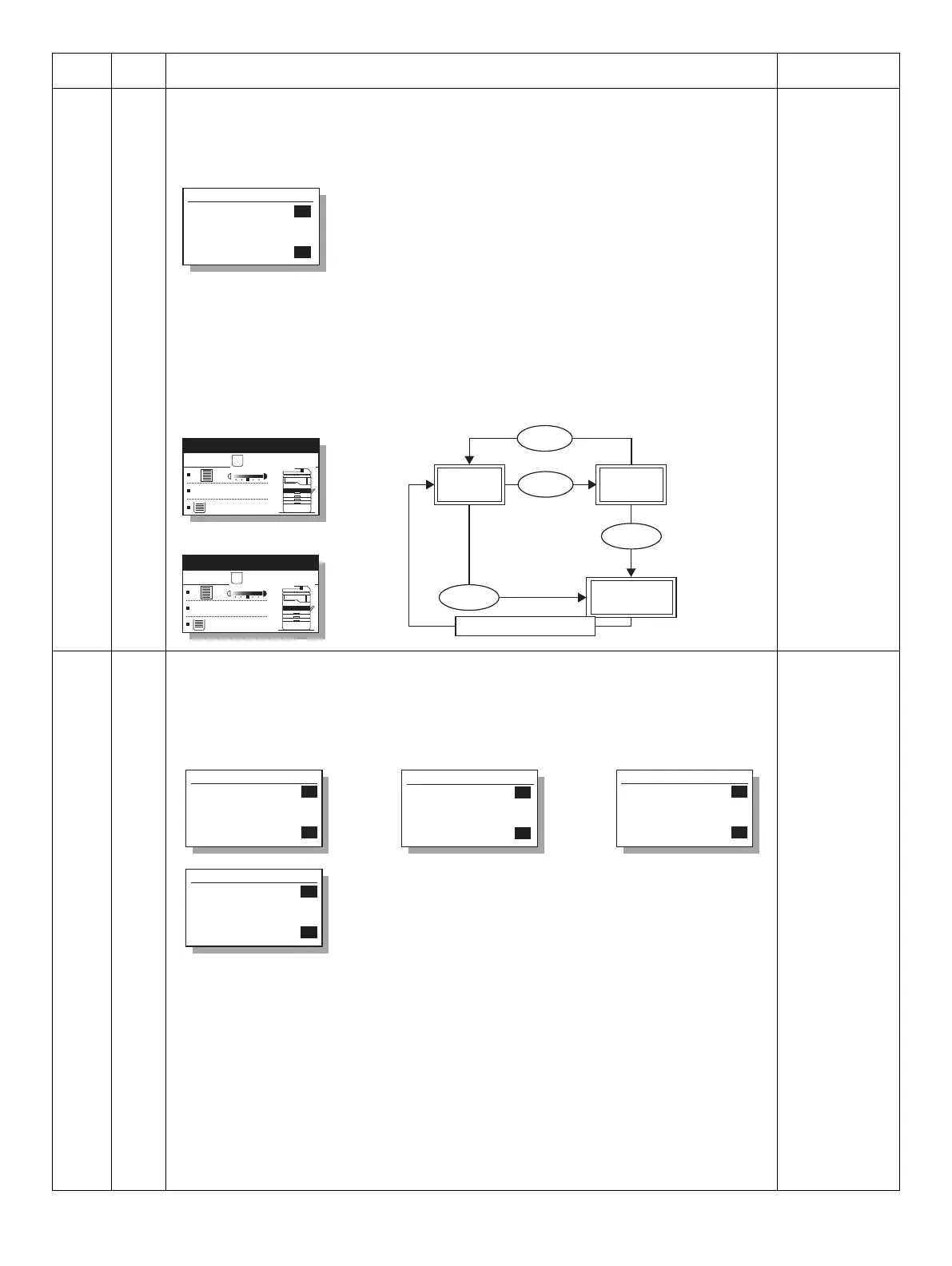

MX-M182 SIMULATIONS 7-48
50 19 Rear edge void adjustment in duplex copy
Used to adjust the rear edge void amount in duplex copy.
When this simulation is executed, the selection window of the adjustment items and the current set value
are displayed.
The adjustment value is in the range of 1 - 99.
When the adjustment value is increased by 1, the rear edge void amount is increased by about 0.1mm.
Select an adjustment item (mode) with the arrow keys, and enter the set value with numeric keys.
When [OK] key is pressed, the entered value is saved to the EEPROM and the machine shifts to the copy
execution window.
After completion of copying, the machine returns to the adjustment value input window.
When [START] key is pressed instead of [OK] key, the machine shifts to the copy execution window and
performs copying
(Execution is
allowed when
DUPLEX setting is
ON, and RSPF is
installed.)
Default:
PRV(SIDE1): 50
PRV(SIDE2): 50
RRC-D: 50
51 02 Resist amount adjustment
Used to adjust the contact pressure (warp amount) of paper against the resist roller of the main unit resist
roller and the SPF/RSPF.
When this simulation is executed, the selection window of the adjustment items and the current set value
are displayed.
Default:
TRAY1: 50
TRAY2: 50
TRAY3: 50
TRAY4: 50
BYPASS: 50
RSPF(SIDE1): 50
RSPF(SIDE2): 50
RSPF A5: 50
DUPLEX: 50
PRE FEED: 32
Main
code
Sub
code
Contents Remark
Sim50-19 DUP R VOID
1:PRV(SIDE1)
2:PRV(SIDE2)
3:RRC-D
[ 1- 99]
50
50
50
50
(Adjustment item selection window)
Display text array : Adjustment mode
1: PRV (SIDE1) : Paper rear edge void amount (1st print surface)
2: PRV (SIDE2) : Paper rear edge void amount (2nd print surface)
3: RRC-D : Print start position (2nd print surface)
Ready to copy.
S
100%
8 1/2
×11
(Copy start window)
Copies in progress.
S
100%
8 1/2×11
(Copy execution window)
Adjustment
item selection
window
Copy start
window
Copy execution
window
End of copy execution
[BACK] key
[START] key
[START] key
[OK] key
(Adjustment item selection window)
Sim51-2 RESIST ADJ. Sim51-2 RESIST ADJ. Sim51-2 RESIST ADJ.
2
1:TRAY1
2:TRAY2
3:TRAY3
1/4 [ 1- 99]
50
50
50
50
4:TRAY4
5:BYPASS
6:RSPF(SIDE1)
2/4 [ 1- 99]
50
50
50
50
7:RSPF(SIDE2)
8:RSPF A5
9:DUPLEX
3/4 [ 1- 99]
50
50
50
50
Sim51-2 RESIST ADJ.
10:PRE FEED
4/4 [ 1- 99]
50
50
Display text :Adjustment mode
1:TRAY1 :Resist amount in paper feed from TRAY1
2:TRAY2 :Resist amount in paper feed from TRAY2 (*1)
3:TRAY3 :Resist amount in paper feed from TRAY3 (*1)
4:TRAY4 :Resist amount in paper feed from TRAY4 (*1)
5:BYPASS :Resist amount in paper feed from manual tray
6:RSPF(SIDE1) :Resist amount on SPF/RSPF document surface (*1)
7:RSPF(SIDE2) :resist amount on RSPF document back (*1)
8:RSPF A5 :Document resist amount in A5 document back transport (*1)
9:DUPLEX :Resist amount in DUPLEX print (Second print surface) (*1)
10: PRE FEED :Pre-feed time of the manual feed tray paper feed. (*2)
