MX-M182 SIMULATIONS 7-49
51 02 (*1) Valid only when an option is installed. (If an option is not installed, it is not displayed on the adjustment
window.)
(*2) When heavy paper slips in manual feed copy, or when a paper jam occurs in thin paper copy, adjust this
set value to remove the problem.
•Heavy paper slips. Increase the set value.
• Thin paper jams. Decrease the set value.
The adjustment range is 1 - 99.
Select an adjustment item (mode) with the arrow keys, and enter the set value with numeric keys.
When [OK] key is pressed, the entered value is saved to the EEPROM and the machine shifts to the copy
execution window.
After completion of copying, the machine returns to the adjustment value input window.
When [START] key is pressed instead of [OK] key, the machine shifts to the copy execution window and
performs copying.

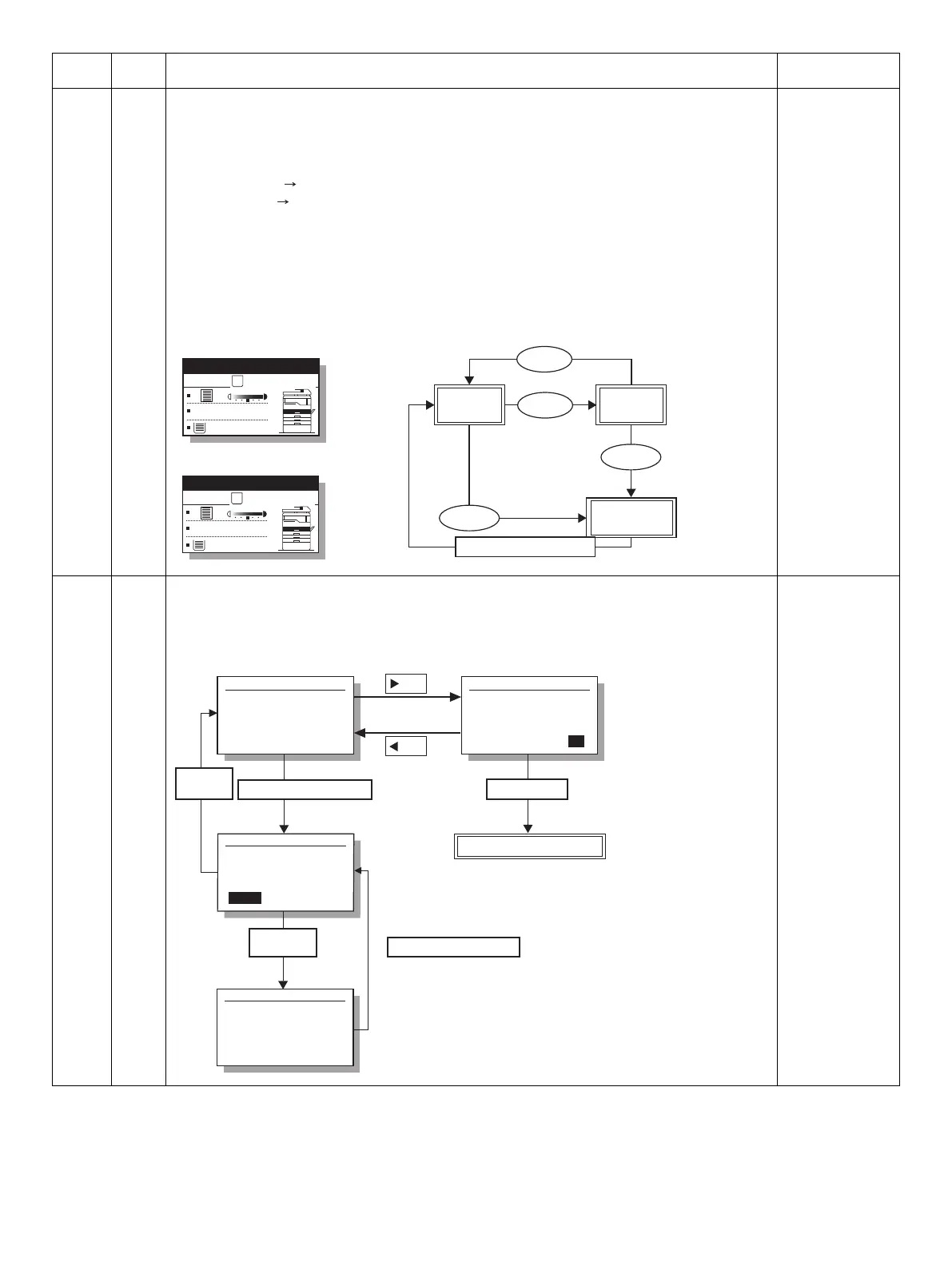

53 08 SPF/RSPF scanning position automatic adjustment
Used to adjust the SPF/RSPF stop position of the mirror unit in the SPF/RSPF copy.
The scanning position is basically determined by the automatic adjustment. It can be also adjusted
manually.
Default:
50
Main
code
Sub
code
Contents Remark
Ready to copy.
S
100%
8 1/2×11
(Copy start window)
Copies in progress.
S
100%
8 1/2×11
(Copy execution window)
Adjustment
item selection
window
Copy start
window
Copy execution
window
End of copy execution
[BACK] key
[START] key
[START] key
[OK] key
(Automatic adjustment window)
(Manual adjustment window)
Sim53-8 SPF AUTO
PRESS OK KEY
EXEC 50
Sim53-8 SPF AUTO
50
[START] Key
Key
Key
An optional value can
be entered manually.
When [OK] key or [START] key
is pressed, the entered value
is saved in the EEPROM.
When [START] key is
pressed, the window
shifts to the sub code
input standby window.
When, however, [OK] key
is pressed, the window
does not shift.
[OK] key or [START] Key
Sim53-8 SPF AUTO
EXEC
Sim53-8 SPF AUTO
adjustment
NG
Sub code input standby window
adjustment
OK
[OK] key or [START] Key
When the automatic adjustment result is NG,
"ERR" is displayed on the value display.
50
PRESS OK KEY
EXEC ERR
