MX-M182 SIMULATIONS 7-55
66 13 Dial number registration
Used to perform send test and adjustments of the dial pulse and the DTMF signal.
Perform send test of the dial pulse and the DTMF signal, and perform adjustments of the make time of the
dial pulse and adjustments of the send level of the DTMF signal.
17 DTMF signal send
Used to send the DTMF signal.
Main
code
Sub
code
Contents Remark
[OK] key [OK] key
[OK] key
[OK] key
[OK] key
[OK] key
[OK] key
[OK] key
SIM66-13 initial window
[INTERRUPT] key : Sub code input window
[C] key : Input clear
Numeric key : Input of time and dial number
and selection of an item
[OK] key : Settlement and execution of an input
[START] key : Settlement of an input
[BACK] key : Returns to the selection window
XXXXXXXX : Input dial
After selection
with numeric key
After selection
with numeric key
After selection
with numeric key
The default is set to "1590."
Dial input (0 - 9, *, #)
When the value is great, scroll to the left.
When [C] is pressed, all are cleared.
After pressing [OK] key, during execution
[OK] key
After pressing [OK] key,
during execution

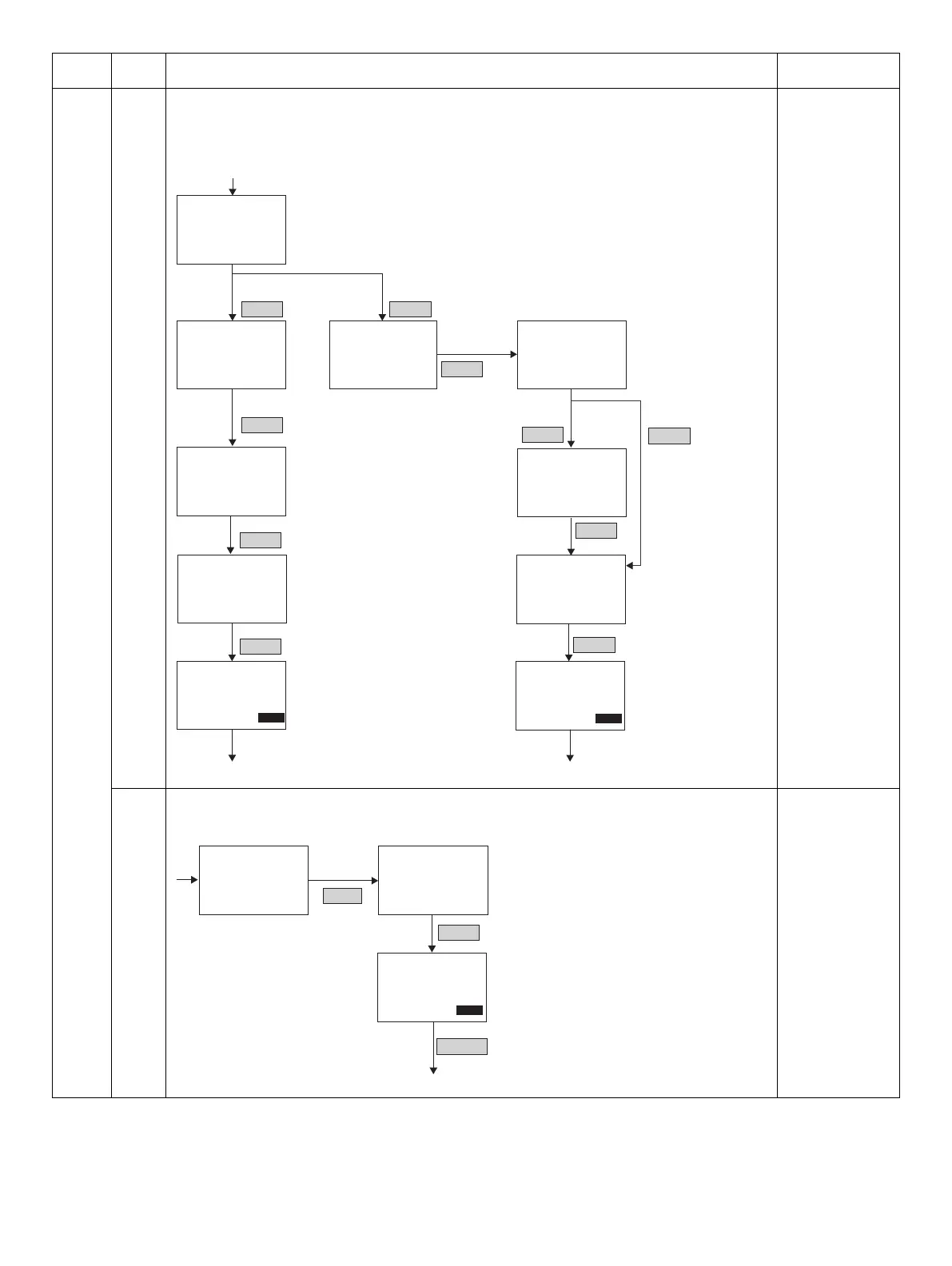

Sim66-13 DIAL TEST
After selection
with numeric key
1.NormalMode
2.HandsetMode
( 1-2 ) X
When "2" is
selected
[OK] key
Select with numeric keys and press [OK] key.
Sim66-13 DIAL TEST
DTMF HIGH:XX LOW:YY
INPUT DIAL #
XXXXXXXXXXXXX
EXEC
When "1" is
selected
SIM66-13 initial window
When the soft SW and the SIM DTMF
sound speaker are selected, "Normal"
and "handset" are selected. In another
case, this menu is not displayed.
Set the signal send level to 0
or to the soft SW setting
value.
(High group of DTMF signal
send level)
*1 (Low group of DTMF
signal send level)
Sim66-13 DIAL TEST
1:PULSE 10pps
2:PULSE 20pps
3:DTMF
( 1-3 ) X
Sim66-13 DIAL TEST
PULSE 10pps
INPUT MAKE TIME
YY
( 26-41 ) YY
Sim66-13 DIAL TEST
SELECT HIGH LEVEL
1:DEFAULT
2:SOFT SW. Y
( 1-2 ) X
Sim66-13 DIAL TEST
Sim66-13 DIAL TEST
INPUT LOW LEVEL
DTMF SOFT SW.
Y
( 0-15 ) XX
Select with numeric keys
and press [OK] key.
DTMF HIGH:XX LOW:YY
INPUT DIAL #
XXXXXXXXXXXXX
EXEC
Completion of execution
(Highlighted during execution)
Completion of execution
(Highlighted during execution)
SENDING 10 pps YYms
INPUT DIAL #
XXXXXXXXXXXX
EXEC
Sim66-13 DIAL TEST
Sim66-13 DIAL TEST
SEND 10 pps YYms
INPUT DIAL #
XXXXXXXXXXXXX
EXEC
Sim66-13 DIAL TEST
PULSE 10pps YYms
INPUT DIAL #
XXXXXXXXXXXXX
EXEC
The default is set to "1590."
Dial input (0 - 9, *, #)
When the value is great,
scroll to the left.
When [C] is pressed, all are
cleared.
[OK] key
Sim66-17 DTMF SIG.
Sim66-17 DTMF SIG.
Sim66-17 DTMF SIG.
1:MAX
2:SOFT SW.
( 1-2 ) X
INPUT DIAL #
X
EXEC
SIM66-17 initial window
[CA] key : Simulation cancel
[INTERRUPT] key : Sub code input window
[C] key : Input clear and stop
Numeric keys : Item selection, dial
number input
[OK] key : Input value settlement
and execution
[START] key : Input value settlement
and execution
[BACK] key : Signal send stop
After selection
with numeric key
SENDING SIGNAL
X
PRESS BACK TO STOP
EXEC
Completion of execution
(Highlighted during execution)
Set the signal send level to
MAX or to the soft setting
value.
Select the dial
number to be sent.
(1 dial)
The DTMF signal
of the selected
dial number is
sent until the
interruption
command is
delivered by
pressing the stop
key.
[OK] key
[BACK] key
After pressing [OK] key,
during execution
To Next Page
