MX-M182 SIMULATIONS 7-56
66 21 FAX information print
Used to print the following FAX information.
24 FAST SRAM clear
Used to clear the FAST SRAM data.
30 TEL/LIU status change check
Used to display the change contents regardless of the soft SW setting when the status of the polarity
inversion relay, the handset hook switch, or the external telephone hook switch is changed. The display of
the changed status is remained until the interruption command is made by pressing RETURN key.
Main
code
Sub
code
Contents Remark

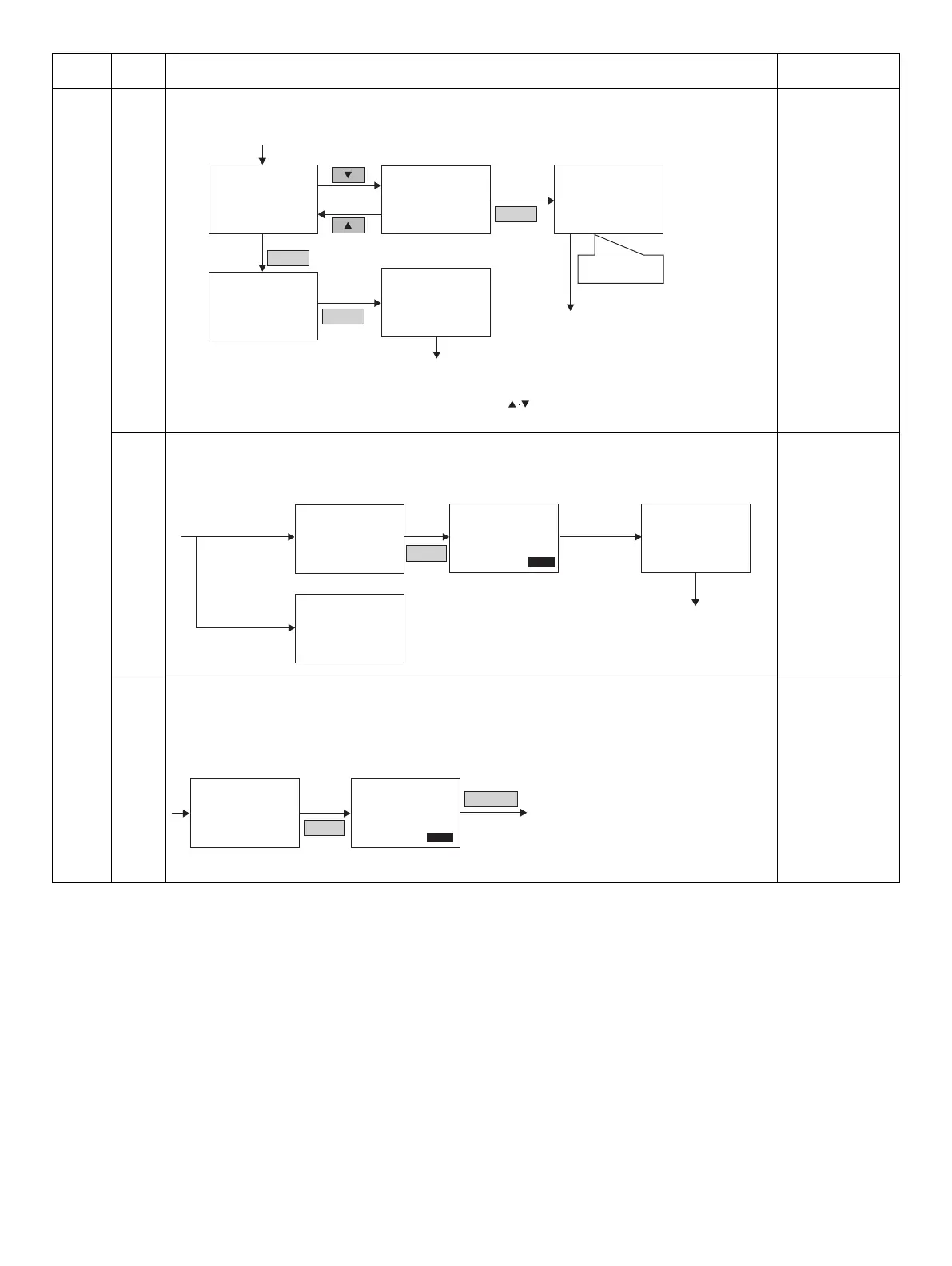

Sim66-21 LIST
Sim66-21 LIST
Sim66-21 LIST
1:USER SW. LIST
2:SOFT SW. LIST
3:SYSTEM ERROR
(1 - 5) X
SOFT SW. LIST
EXEC
PRINT STORED
Sim66-21 LIST
4:
PROTOCOL MONITOR
5:FAX SIMULATION
(1 - 5) X
[OK] key
[OK] key
[OK] key
Sim66-21 LIST
CAN NOT PRINT
Printer Error
After selection with numeric keys
After selection
with numeric
keys
After pressing
[OK] key,
during
execution
1sec later
SIM66-21 window
1sec later
SIM66-21 window
[CA] key : Simulation cancel
[INTERRUPT] key : Sub code input window
Numeric key : Item selection
[OK] key : Settlement and execution
[START] key : Input value settlement and execution
[BACK] key : Returns to the selection window.
keys : Page switch
[C] key : Disable
Sim66-24 FAST CLEAR
Sim66-24 FAST CLEAR
[OK] key
Sim66-24 FAST CLEAR
INITIAL
EXEC
INITIALIZED
Sim66-24 FAST CLEAR
Not Supported
FAST Correspond
FAST NO Correspond
INITIAL
EXEC
[CA] key : Simulation cancel
[INTERRUPT] key : Sub code input window
[OK] key : Settlement
[START] key : Settlement
[C] key : Disable
[BACK] key : Disable
After pressing
[OK] key,
during
execution
Completion of
execution
(Highlighted during
execution)
1sec later
Simulation code input window
Sim66-30 TEL STAT.
Sim66-30 TEL STAT.
[OK] key
[BACK] key
SIM66-30
initial window
EXEC
HS2 :XXX HS1 :XXX
RHS :XXX EXHS :XXX
PRESS BACK TO STOP
EXEC
XXX: ON or OFF
[CA] key : Simulation cancel
[INTERRUPT] key : Sub code input window
[OK] key : Settlement
[BACK] key : Returns to the selection
window
[START] key : Settlement
[C] key : Disable
After pressing
[OK] key,
during
execution
To Next Page
