F. Wire
G. Document detection
•For inch series
• For AB series

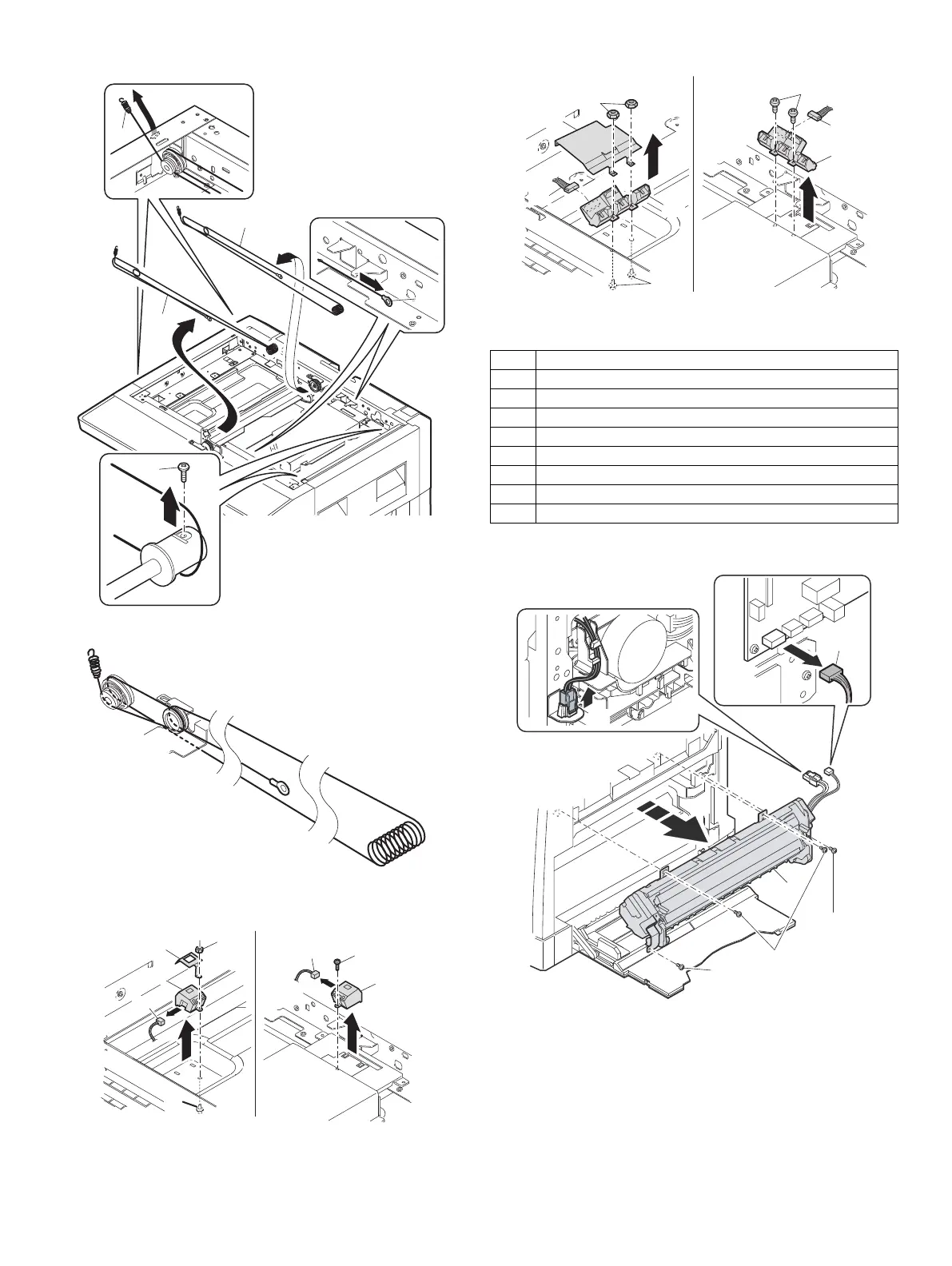

3. Fusing section
A. Fusing unit removal
(1)
(2)
(3)
(4)
(4)
(1)
(1)
(2)
(2)
(3)
(4)
(3)
(2)
No. Contents
A Fusing unit
B Thermostat
C Thermistor
D Heater lamp
E Upper heat roller
F Separation pawl
G Lower heat roller
H Separation pawl
(2)
(2)
(2)
(3)
(1)
(1)
(3)
(4)
(3)
(2)
3 point
special screw
(2)
M4 x 8
(2)
M3 x 8
(1)
(1)
